3402
o
The
Data Link/Memory
PCA
(210-7544/7744)
has
one
DIP
labeled
SWl
(Ll07).
The
status
of
this
switch
is
read
by
the
system
master
unit
whenever
it
issues
an
IN
'07'
command.
The
switch
settings
determine
the
type
of
system
(WP
or
OIS)
that
the
workstation
is
attached
to.
Set
the
switches
for
the
appropriate
application
as
shown
in
figure
4-5.
o
Additional
information
concerning
the
TC
option
is
located
in
section
4.5
at
the
end
of
this
chapter
•

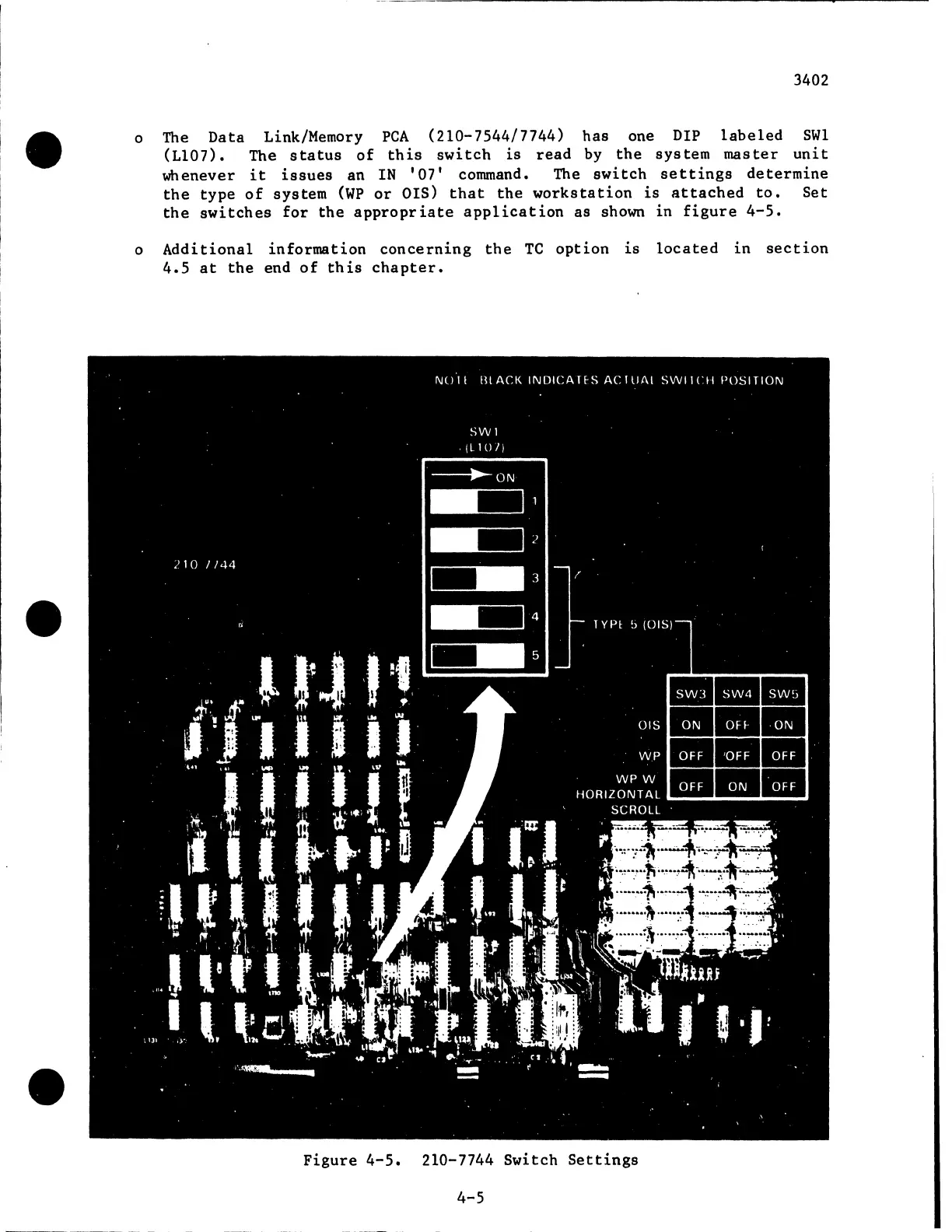

Figure
4-5.
210-7744 Switch
Settings
4-5
