Wang 5536 - Page 78

3402

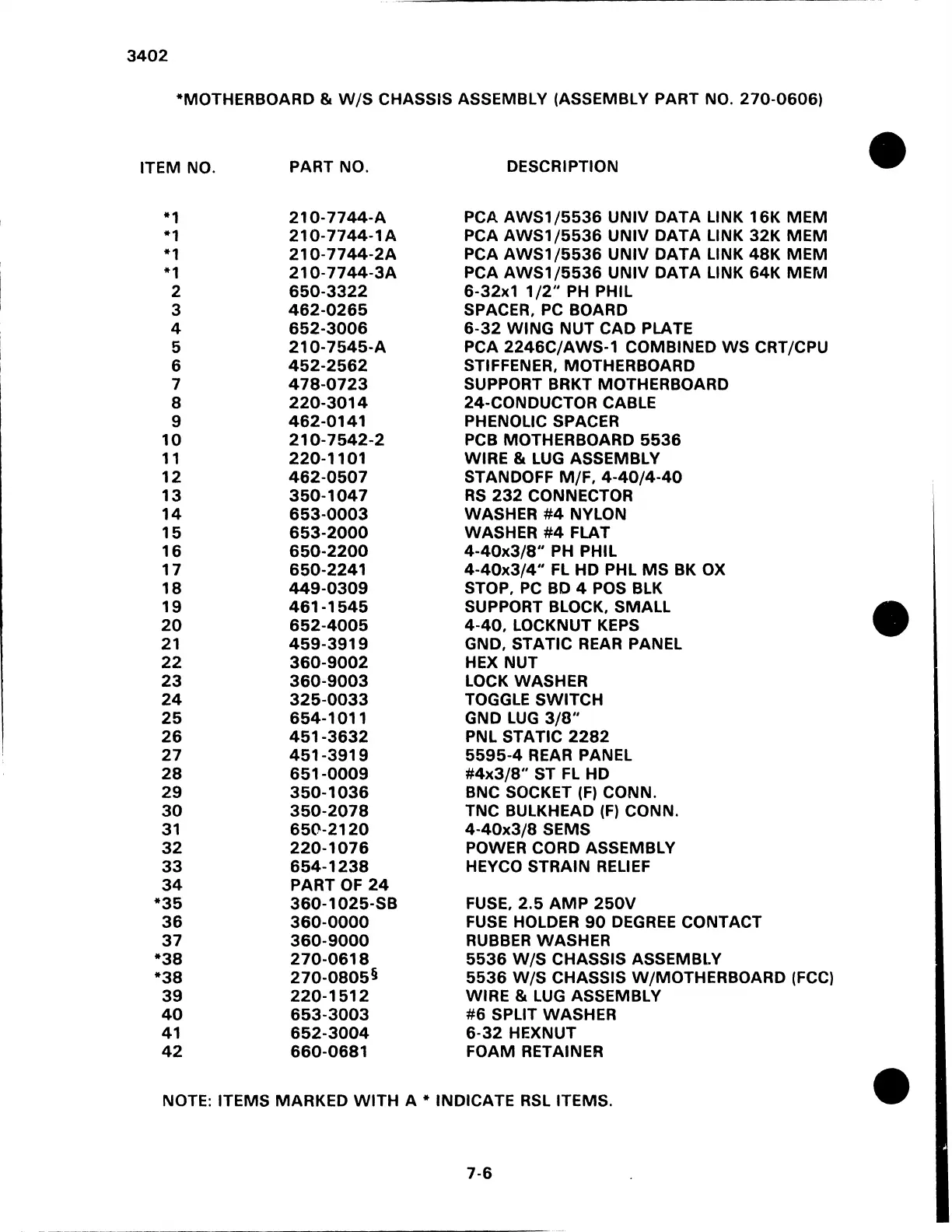

*MOTHERBOARD & W/S CHASSIS ASSEMBLY (ASSEMBLY PART NO. 270-0606)
ITEM NO.
PART NO.
DESCRIPTION
•
*1
210-7744-A
PCA AWS1/5536 UNIV DATA LINK 16K MEM
*1
210-7744-1 A PCA AWS1/5536 UNIV DATA LINK 32K MEM
*1
210-7744-2A
PCA AWS1/5536 UNIV DATA LINK 48K MEM
*1
210-7744-3A PCA AWS1/5536 UNIV DATA LINK 64K MEM
2 650-3322 6-32x1 1 /2" PH PHIL
3
462-0265
SPACER, PC BOARD
4
652-3006 6-32 WING NUT CAD PLATE
5
210- 7545-A PCA 2246C/AWS-1 COMBINED WS CRT/CPU
6
452-2562 STIFFENER, MOTHERBOARD
7 478-0723 SUPPORT BRKT MOTHERBOARD
8 220-3014
24-CONDUCTOR CABLE
9
462-0141 PHENOLIC SPACER
10
210-7542-2
PCB MOTHERBOARD 5536
11 220-1101 WIRE & LUG ASSEMBLY
12 462-0507
STANDOFF M/F, 4-40/4-40
13 350-1047 RS 232 CONNECTOR
14 653-0003
WASHER #4 NYLON
15 653-2000 WASHER #4 FLAT
16 650-2200 4-40x3/8" PH PHIL
17 650-2241 4-40x3/4" Fl HD PHL MS BK OX
18 449-0309 STOP. PC BO 4 POS BLK
19
461-1545 SUPPORT BLOCK. SMALL
•
20 652-4005 4-40. LOCKNUT KEPS
21 459-3919 GND, STATIC REAR PANEL
22 360-9002
HEX NUT
23
360-9003
LOCK WASHER
24 325-0033 TOGGLE SWITCH
25 654-1011 GND LUG 3/8"
26 451-3632 PNL STATIC 2282
27 451-3919 5595-4 REAR PANEL
28
651-0009 #4x3/8" ST FL HD
29
350-1036
BNC SOCKET (F) CONN.
30 350-2078
TNC BULKHEAD (F) CONN.
31 650-2120
4-40x3/8 SEMS
32 220-1076 POWER CORD ASSEMBLY
33
654-1238 HEVCO STRAIN RELIEF
34 PART OF 24
*35
360-1025-SB
FUSE. 2.5 AMP 250V
36 360-0000
FUSE HOLDER 90 DEGREE CONTACT
37 360-9000 RUBBER WASHER
*38
270-0618
5536 W/S CHASSIS ASSEMBLY
*38
270-0805§
5536 W/S CHASSIS W/MOTHERBOARD (FCC)
39
220-1512 WIRE & LUG ASSEMBLY
40 653-3003
#6 SPLIT WASHER
41 652-3004 6-32 HEXNUT
42 660-0681
FOAM RETAINER
NOTE: ITEMS MARKED WITH A* INDICATE RSL ITEMS.
•
