3.0 Electricity Supply
220 - 240V. 1PH, 50 Hz
The boiler/burner and other external electrical equipment should be wired via a fused
double pole isolating switch which should be fitted with a 5 amp fuse.
In order to ensure the safety of the Kabin Pak Combi Warmflow recommends that
power to the appliance is supplied through a suitable CE approved RCD trip switch.
The appliance must be effectively earthed and all external wiring should comply with
current IEE Regulations. It is the responsibility of the installer to ensure that the appliance
has been properly earthed.

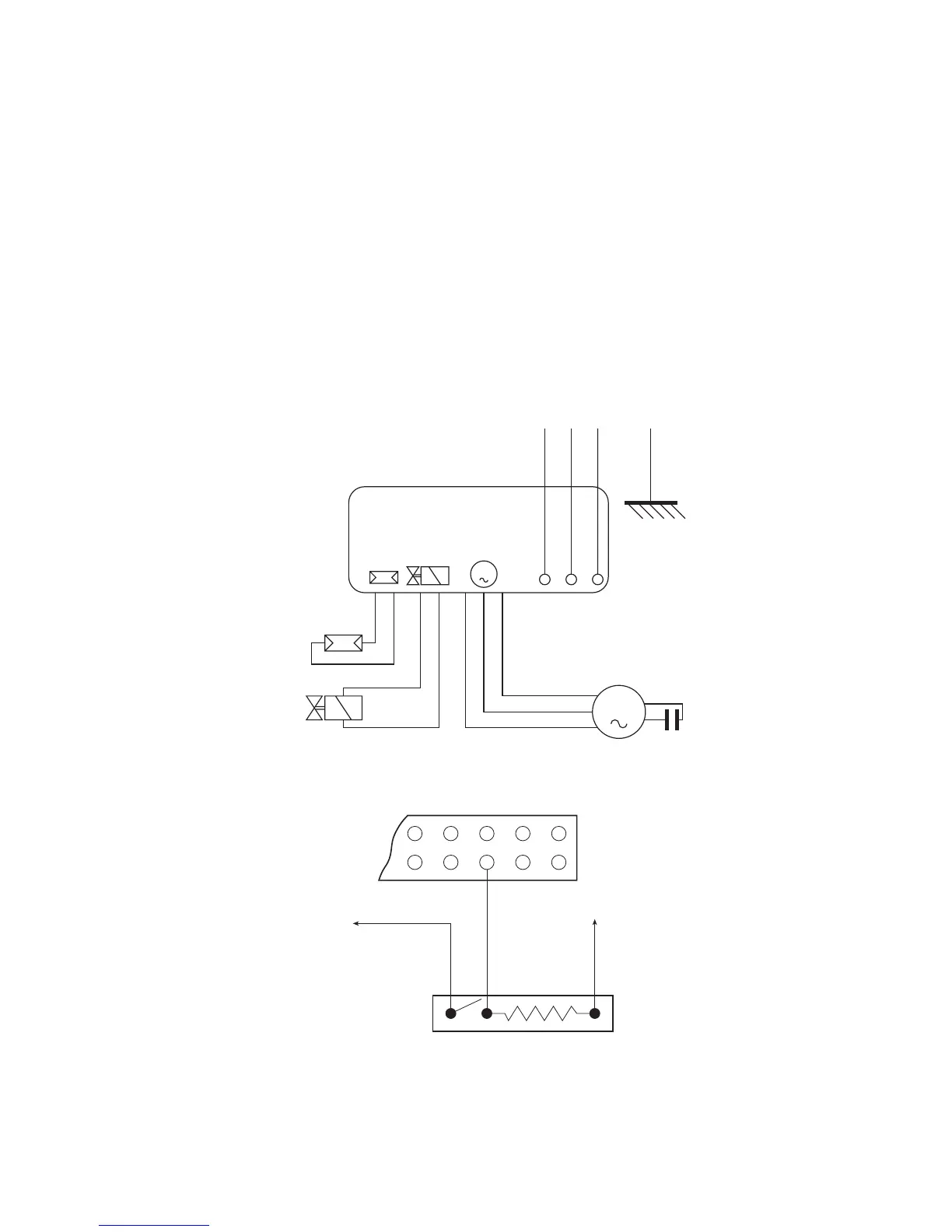

3.1 RDB Burner Control Box
3.2 Fitting a Room Thermostat
Remove the purple wire from no 5 and no 28 on the PCB and wire the thermostat as
shown. The room thermostat should be located where it is not subjected to extraneous
heat gains, direct sunlight or draughts.
