WarmFlow COMBI 70 - One Pipe Lift

4.4 One Pipe Lift

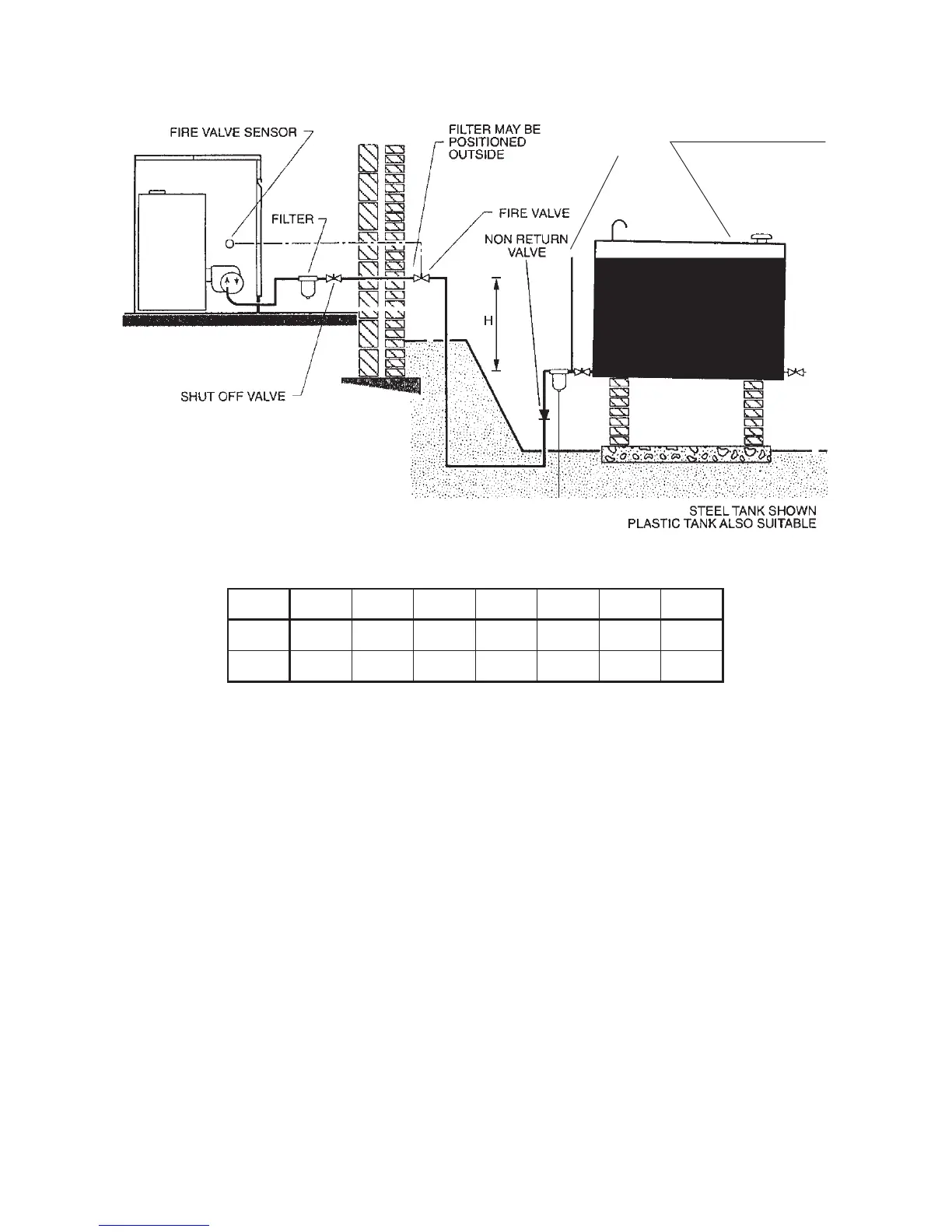

20mm PER METRE SLOPEAPPROVED
SITE GAUGE
WATER
SEPARATOR
Note: The pump vacuum should
not exceed a maximum of 0.4 bar.
Above this gas is released from the
oil thus leading to burner lock out.
Total Maximum Pipe Length (m)
0.5
35
100
0.5
30
100
1
25
100
1.5
20
90
2
15
70
3
8
30
3.5
6
20
Lift H
(m)
ID 8mm
ID 10mm
Page 25
