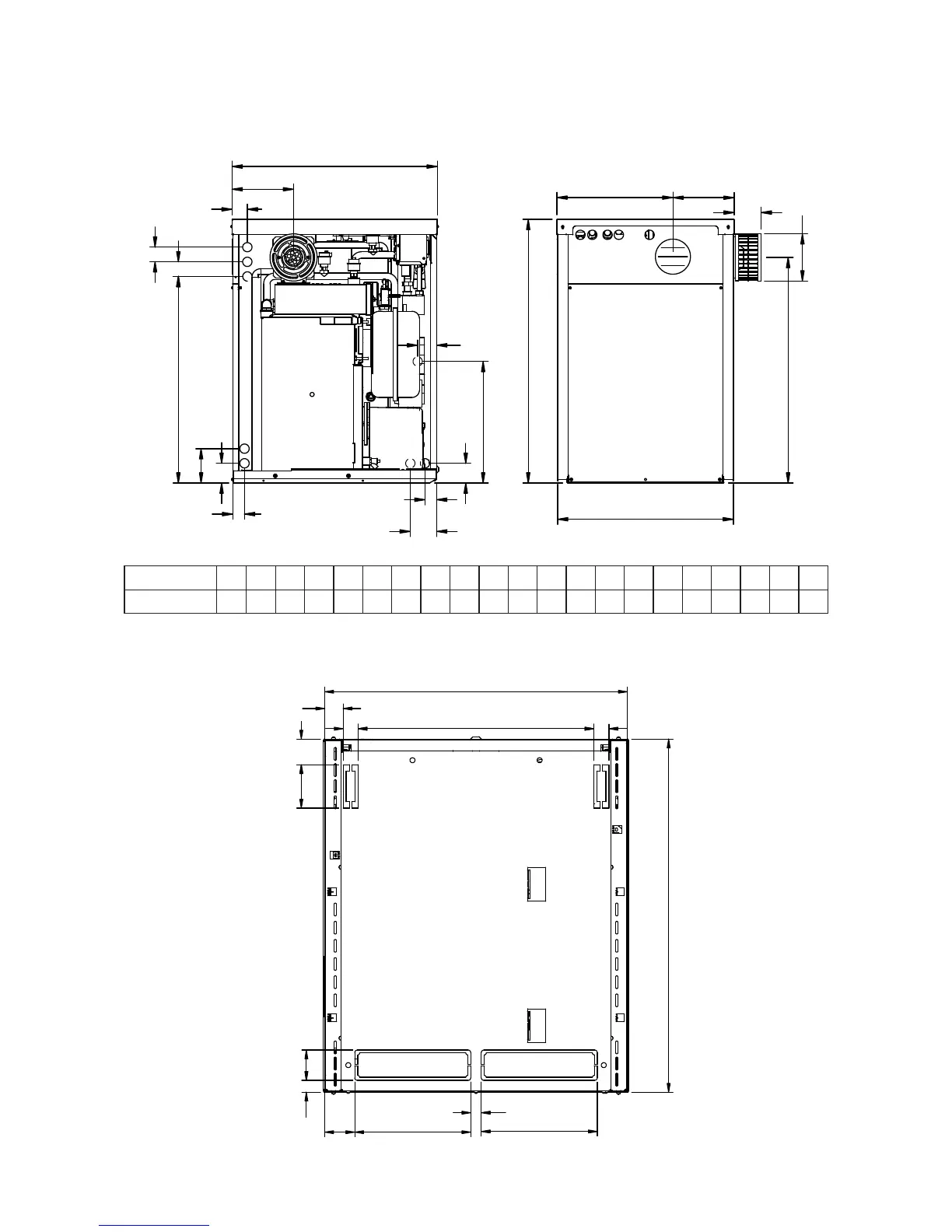

2.2.8 K-Series Kabin Pak (KCHE Models)
2.2.9 K-Series Kabin Pak Base Tray (KCHE Models)

















 


KCHE DIMS
A B C D E F G H J K L M N P R S T U V W X
700 600 900 770 210 396 209 92 161 52 50 50 705 117 67 40 90 40 67 415 65

FRONT

  


 

 
KCHE BASETRAY DIMS

MODEL
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
W
X
KC~
700
600
900
770
210
396
209
92
161
52
50
50
705
117
67
40
90
40
67
415
65
