6.3.1.2 Fuel gas system, with enclosed GVU

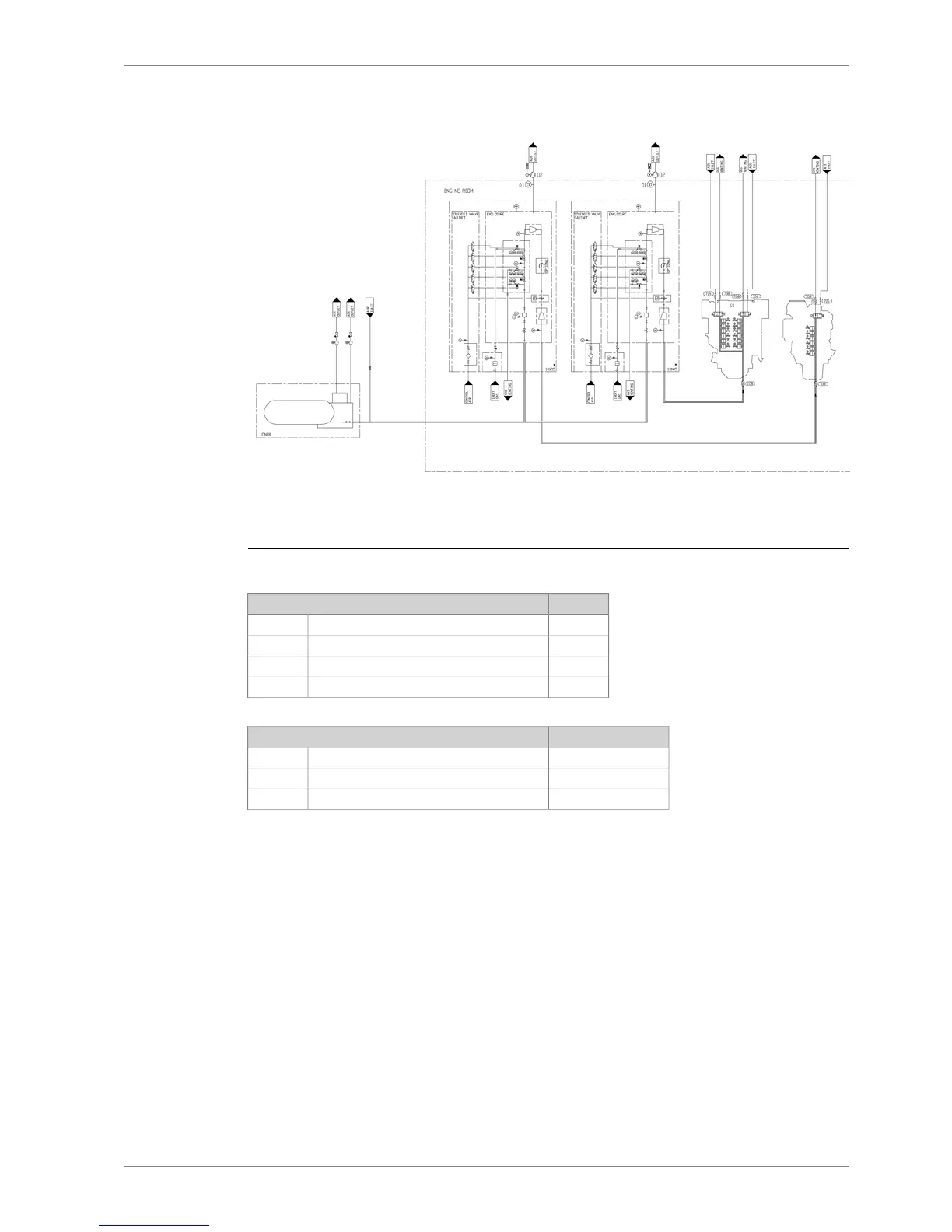

Fig 6-2 Example of fuel gas system with enclosed GVU (DAAF077105B)
SupplierSystem components
-Gas detector01
-Gas double wall system ventilation fan02
WärtsiläGas valve unit10N05
WärtsiläLNGPAC10N08
SizePipe connections
DN50/DN65Gas inlet108
DN25 (DN50 16V)Gas system ventilation708
DN25Air inlet to double wall gas system726
DBAE248994 6-11
