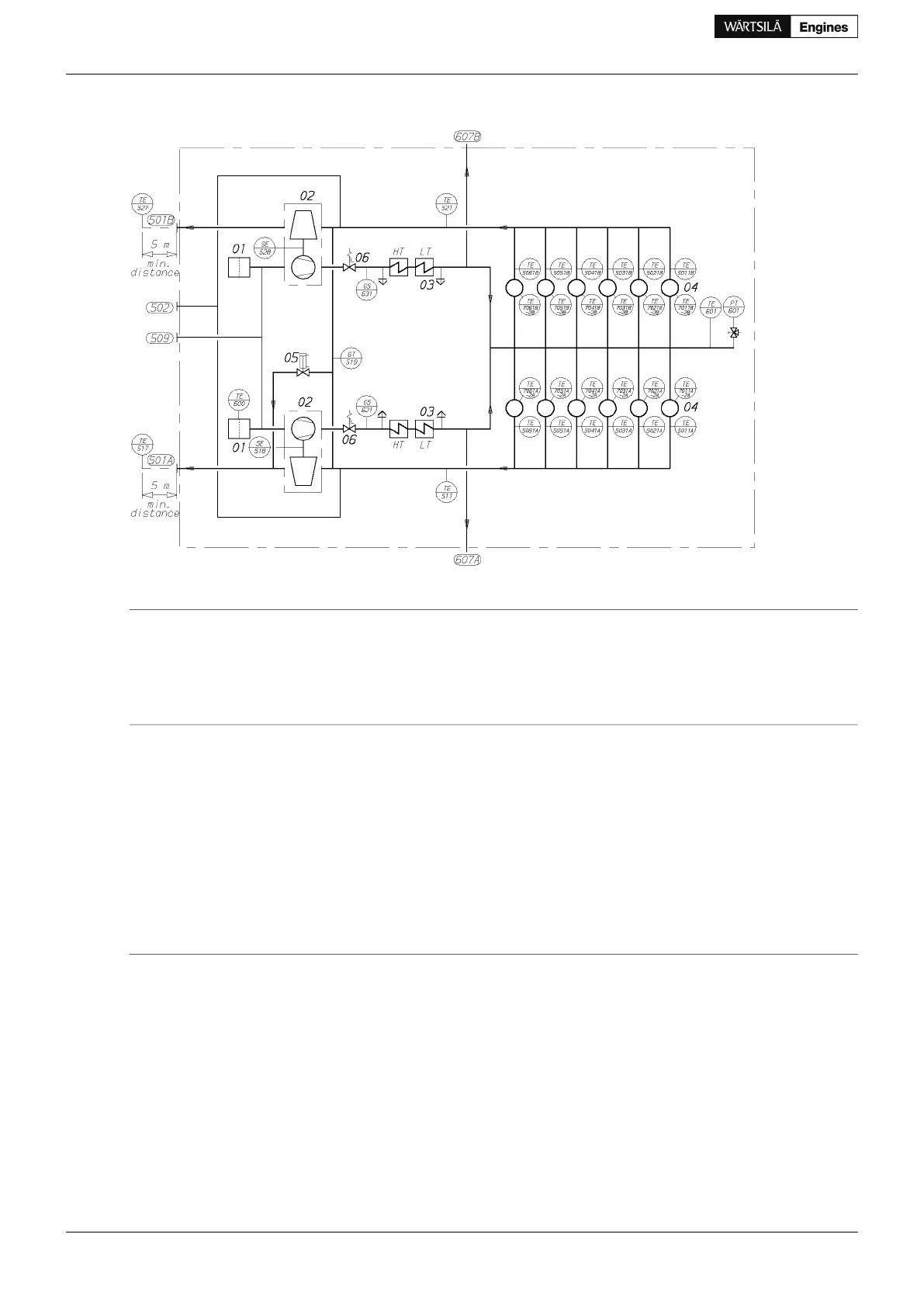

Figure 11.2 Charge air and exhaust gas system, V-engines (DAAE080922)
System components
Cylinder04Air filter01
Waste gate valve05Turbocharger (TC)02
Charge air shut-off valve (optional)06Charge air cooler (CAC)03
Sensors and indicators
Exhaust gas temperature, cyl #, B-bankTE50#1BExhaust gas temperature, TC inlet A-bankTE511
Cylinder liner temperature, A-bankTE7#1AExhaust gas temperature, TC outlet A-bankTE517
Cylinder liner temperature, B-bankTE7#1BTC speed, A-bankSE518
Air temperature, TC inletTE600Exhaust wastegate valve positionGT519
Charge air pressure, after CACPT601Exhaust gas temperature, TC inlet B-bankTE521
Charge air temperature, after CACTE601Exhaust gas temperature, TC outlet B-bankTE527
Charge air shut-off valve position, A-bank (optional)GS621TC speed, B-bankSE528
Charge air shut-off valve position, B-bank (optional)GS631Exhaust gas temperature, cyl #, A-bankTE50#1A
StandardPressure classSizePipe connections
ISO 7005-1PN6DN400Exhaust gas outlet501A/B
DIN2353OD18Cleaning water to turbine502
DIN2353OD18Cleaning water to compressor509
DIN2353OD8Condensate after air cooler607A/B
102 Product Guide Wärtsilä 34DF - 3/2012
Product Guide
11. Exhaust Gas System
