7.3 External lubricating oil system

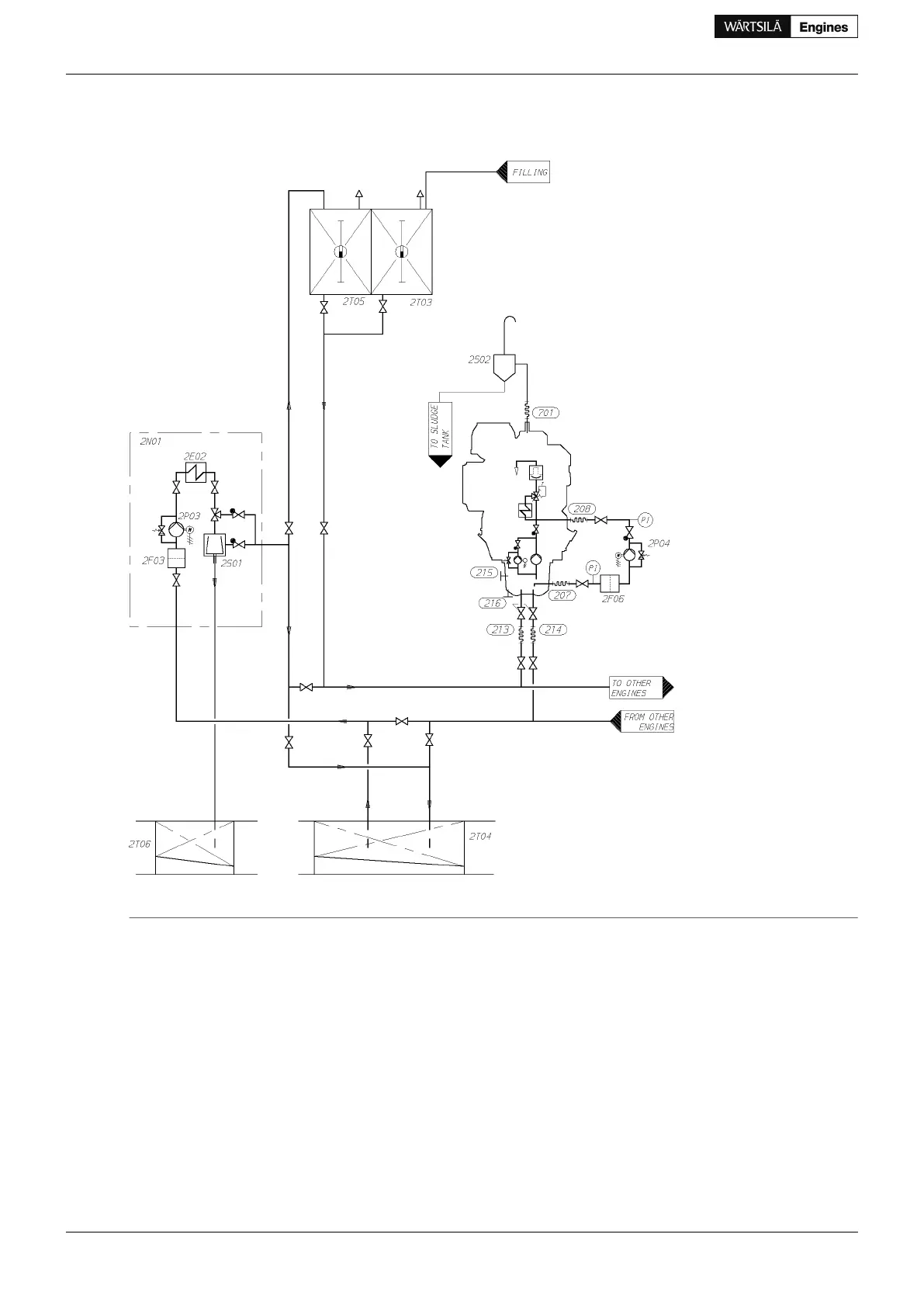

Figure 7.3 Example of lubricating oil system, wet oil sump (DAAE055757a)
Pipe connectionsSystem components
Lubricating oil to el.driven pump207Heater (separator unit)2E02
Lubricating oil from el. driven pump208Suction filter (separator unit)2F03
Lubricating oil from separator and filling213Suction strainer (stand-by pump)2F06
Lubricating oil to separator and drain214Separator unit2N01
Lubricating oil filling215Separator pump (separator unit)2P03
Lubricating oil drain216Stand-by pump2P04
Crankcase air vent701Separator2S01
Condensate trap2S02
New oil tank2T03
Renovating oil tank2T04
Renovated oil tank2T05
Sludge tank2T06
72 Product Guide Wärtsilä 34DF - 3/2012
