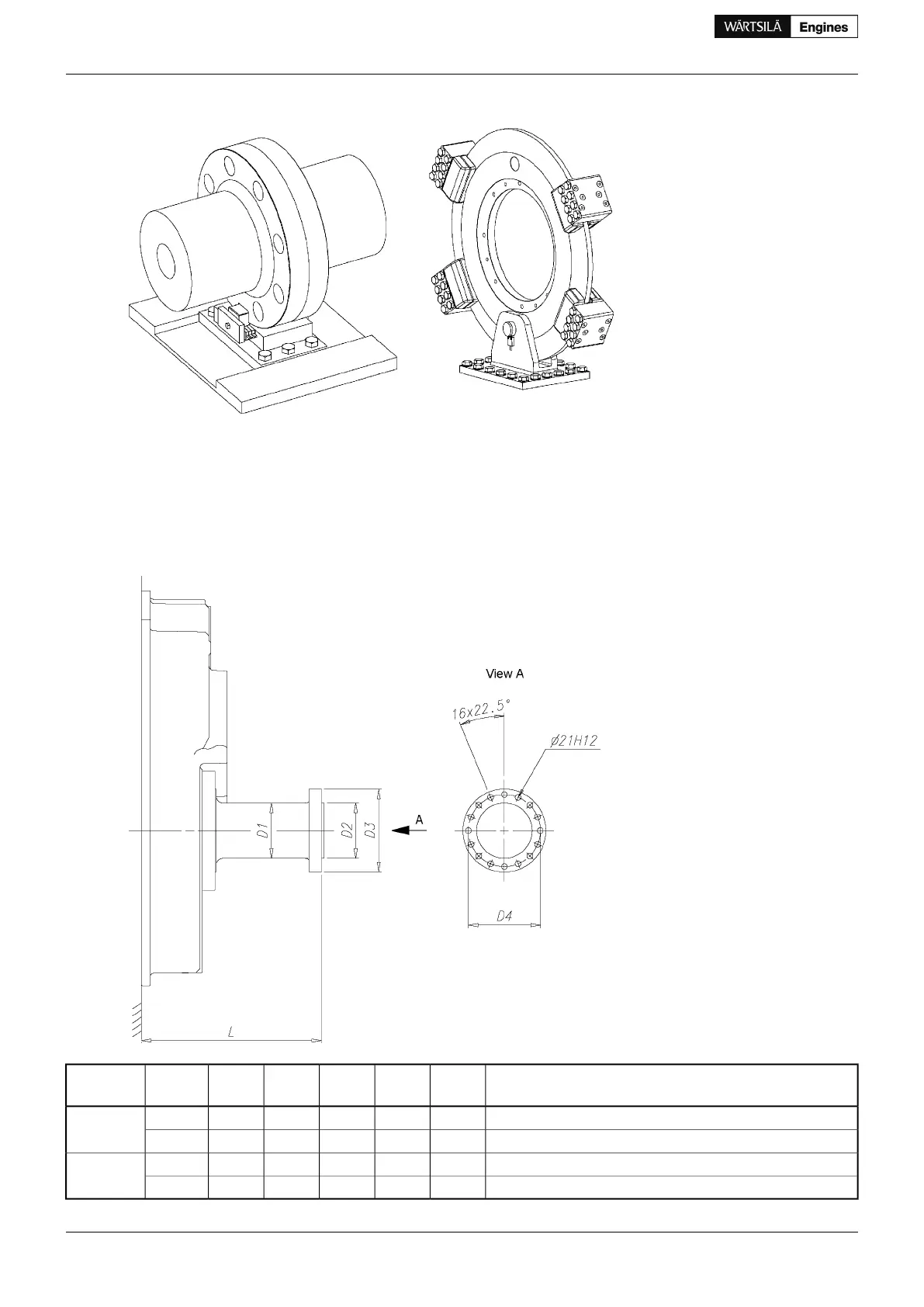

Figure 17.3 Shaft locking device and brake disc with calipers
17.5 Power-take-off from the free end
The engine power can be taken from both ends of the engine. For in-line engines full engine power is also
available at the free end of the engine. On V-engines the engine power at free end must be verified according
to the torsional vibration calculations.
Figure 17.4 Power take off at free end (DAAE084566)
PTO shaft connected toL
[mm]
D4
[mm]
D3
[mm]
D2
[mm]
D1
[mm]
Rating
1)
[kW]
Engine
extension shaft with support bearing6502603002002004500In-line
engines
flexible coupling, max weight at distance L = 900 kg7002603002002004500
extension shaft with support bearing8002603002002005000
V-engines
flexible coupling, max weight at distance L = 390 kg10702603002002003500
148 Product Guide Wärtsilä 34DF - 3/2012
Product Guide
17. Power Transmission
