Wascom EMERALD W75ES - Outline and Dimensions

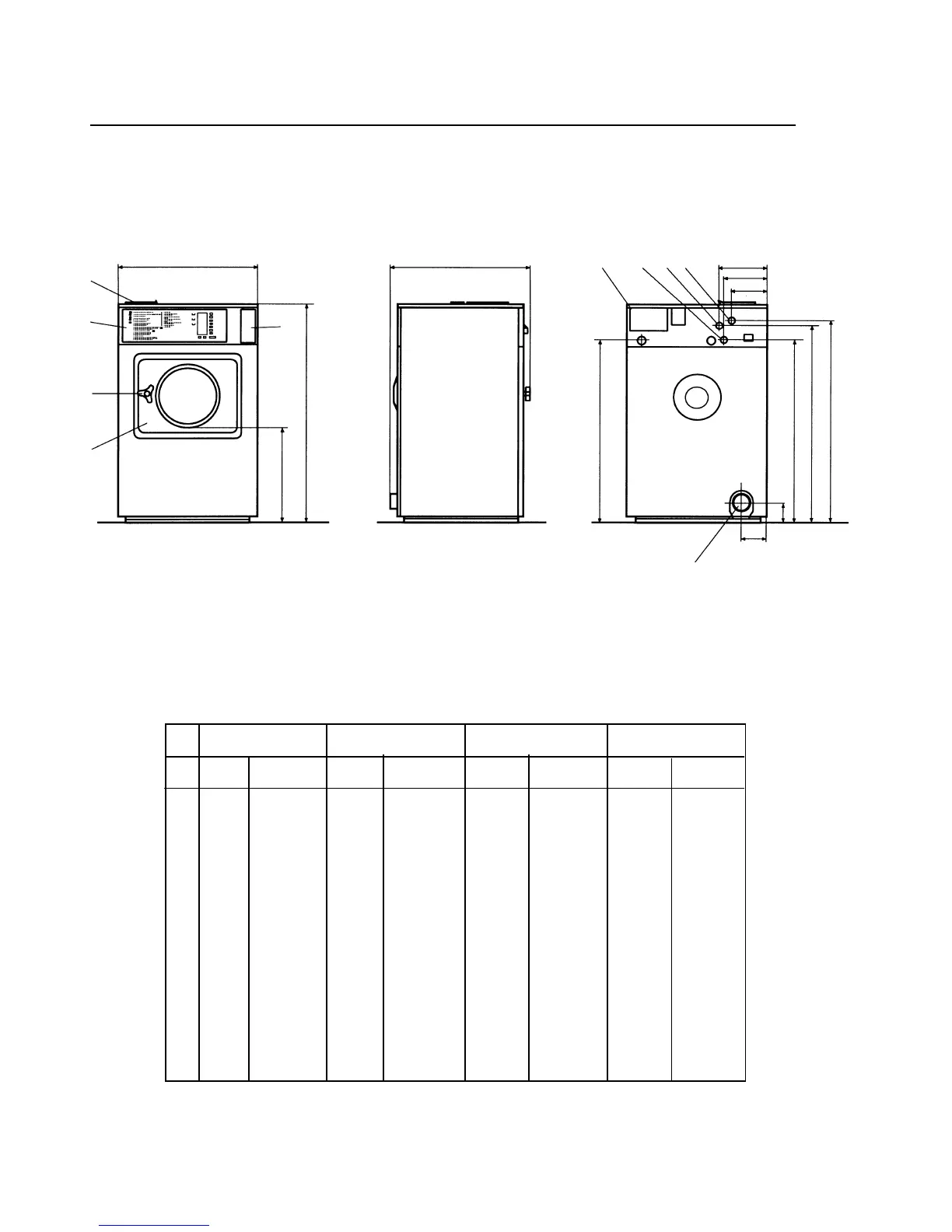

Outline and dimensions
Technical data
6
1 Cold water
2 Hot water
3 Hot water (W185)
4 Drain outlet
5 Electrical + price reduction connections
6 Door
7 Slip-lock door handle
8 Emerald control panel
9 Coin-meter
10 Supplies compartments
W75 W105 W125 W185
mm inches mm inches mm inches mm inches
A 1050 41 5/16 1050 41 5/16 1196 47 1/16 1315 51 3/4
B 437 17 3/16 437 17 3/16 465 18 5/16 540 21 1/4
C 660 26 660 26 775 30 1/2 860 33 7/8
D 678 26 11/16 795 31 5/16 995 39 3/16 1085 42 11/16
E 895 35 1/4 895 35 1/4 1040 40 15/16 1160 45 11/16
F 100 3 15/16 100 3 15/16 100 3 15/16 100 3 15/16
G 125 4 15/16 125 4 15/16 270 10 5/8 260 10 1/4
H 980 38 9/16 980 38 9/16 1135 44 11/16 1255 49 7/16
J – – – – – – 1215 47 13/16
K 890 35 890 35 1035 40 3/4 1155 45 1/2
L – – – – – – 295 11 5/8
M 205 8 1/6 205 8 1/16 205 8 1/16 205 8 1/16
N 160 6 5/16 160 6 5/16 160 6 5/16 160 6 5/16
3210
D
C
10
8
7
6
9
B
A
E
4
G
F
K
J
H
5
2
3
1
M
N
L
