Wascom EMERALD W75ES - Principal Wiring and Measurements

45

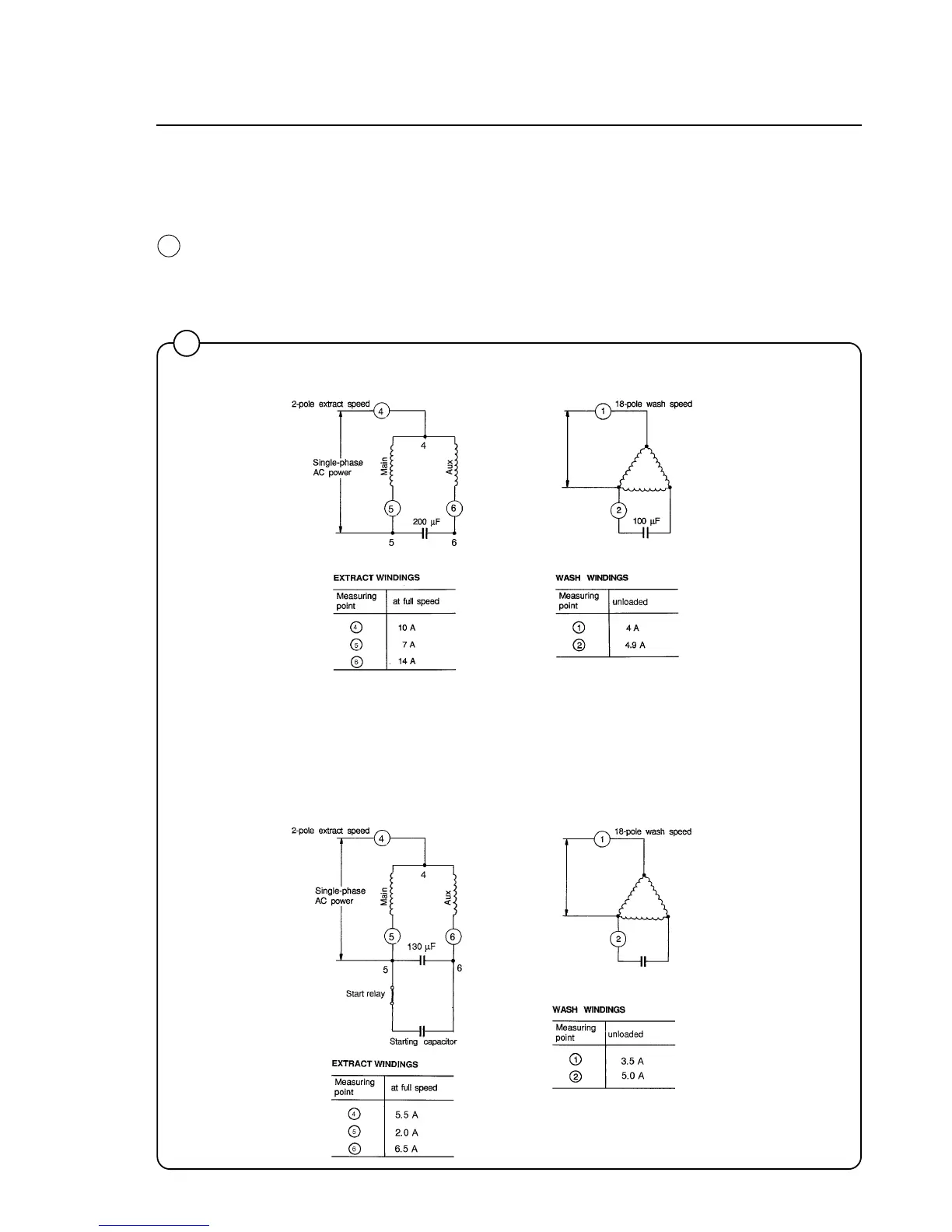

Principal wiring and points of measuring on single-phase
motors.
The numbers at the connection points refer to the terminal num-
bers at the motor connector plug.
The numbers in circles indicate points of ampere measurements.
Mechanical and electrical design
1216
68
W75 120 V 60 Hz single-phase
W105 120 V 60 Hz single-phase
Fig.
68
130 µF
200 µF
