Installation
5
6
7
0274
0950
1133
NOTE: Install the W105ES using the front and
rear pairs of bolt holes. The middle pair is
used when a W105ES is being installed in
replacement of a W73, W74 or W75 washer.
In that case the rear bolt holes are not
necessary but may also be used.
NOTE: If you form a lip on top of the concrete
pad in front of the washers, be sure you leave
enough room to remove the bolts which
secure the bottom of the front panel and
enough room to swing out and remove the
panel!

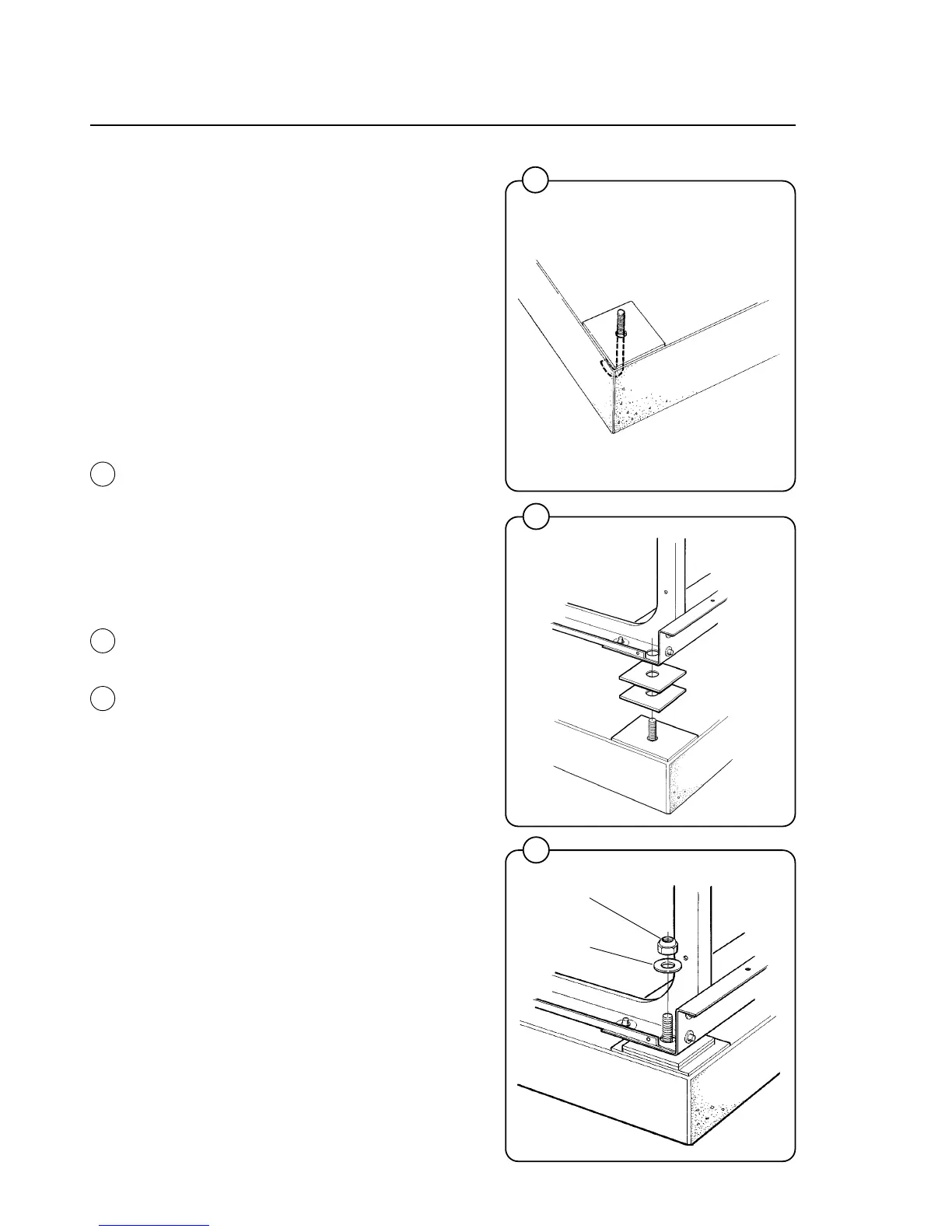

Mechanical installation
• Place wide steel shims on the concrete foun-
dation over the bolts.
• Lift the machine and lower it in position. Never
use the door or the door handle to lift or lower
the machine.
• Check that the machine is level front-to-rear
and side-to-side and standing firmly on the
four (W75, W105) or six (W125 W185) sup-
porting points. Spacing washers must be
mounted if one or more of these points is not
resting against the concrete.
• Place flat washers over the foundation bolts
and secure the machine in position by tighte-
ning the self-locking nuts. See illustration
below.
• Check and tighten the nuts every week for the
first month.
selflocking
nut
flat washer
8
Fig.
5
Fig.
6
Fig.
7
