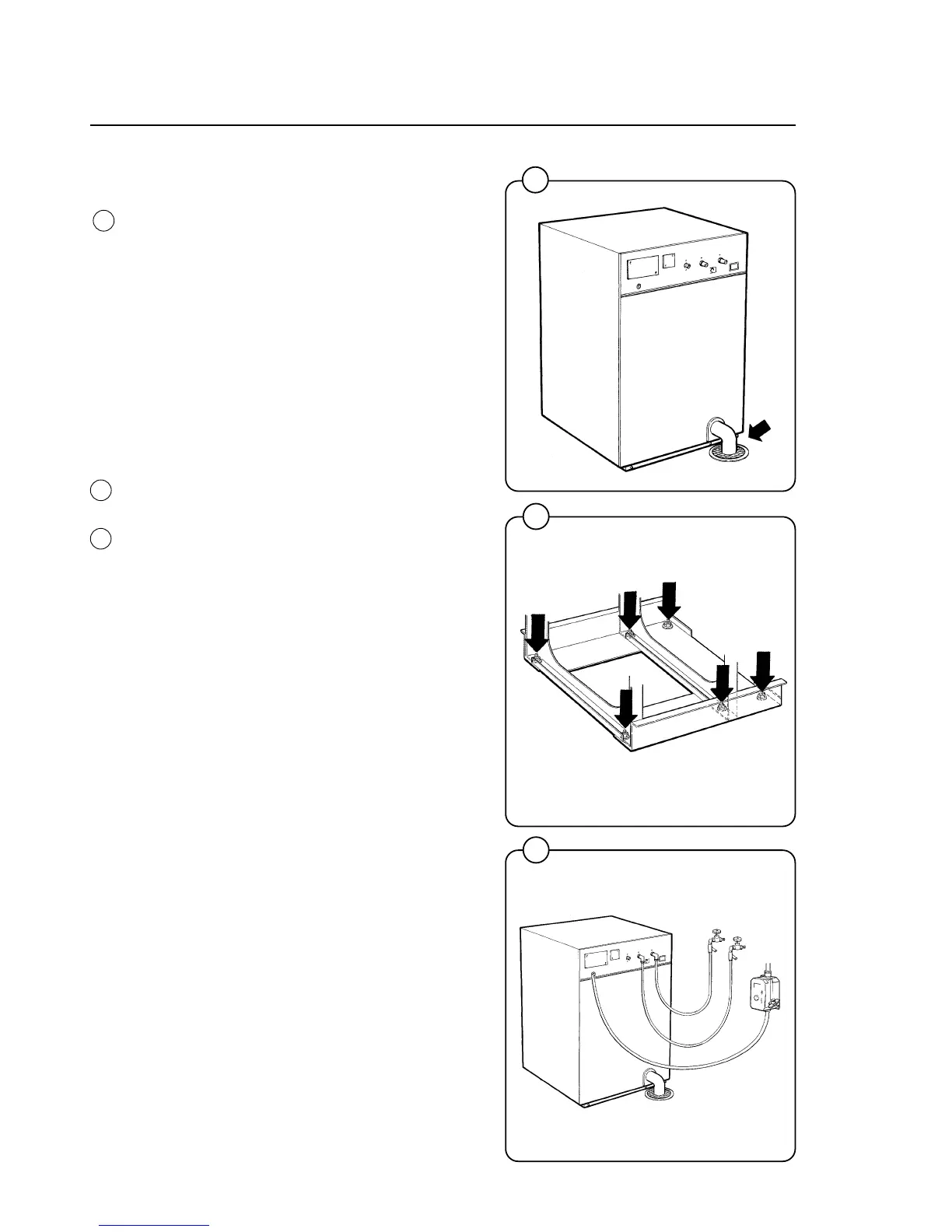

Drain Connections:
Connect a 3" (75 mm) flexible hose to the drain
outlet of the machine and clamp it securely.
The drain hose may be connected to a 2" to 3"
T- connection coming out of your main drain line,
which is typically four inches diameter, or the
washer may dump into a trough which slopes to
a drain, or directly into a floor drain as shown in
the illustration. Check local codes for required
installation procedure.
Start-up and safety checklist
Before initial start-up of a Wascomat washer the
following safety checks must be performed:
• Make sure the machine is properly bolted to
the floor and level.
• Make sure that all electrical and plumbing
connections have been made in accordance
with applicable local codes.
• Use only flexible water fill and drain hoses of
the proper length to avoid sags and kinks.
• Make sure the machine is properly grounded
electrically.
Installation
15
1833
16
1140
17
1834
Fig.
17
Fig.
16
Fig.
15
