Washtech PW2 - Components Overview; Component Location and Access

Components
WARNING
All service/repair work must be carried out by qualified personnel only.

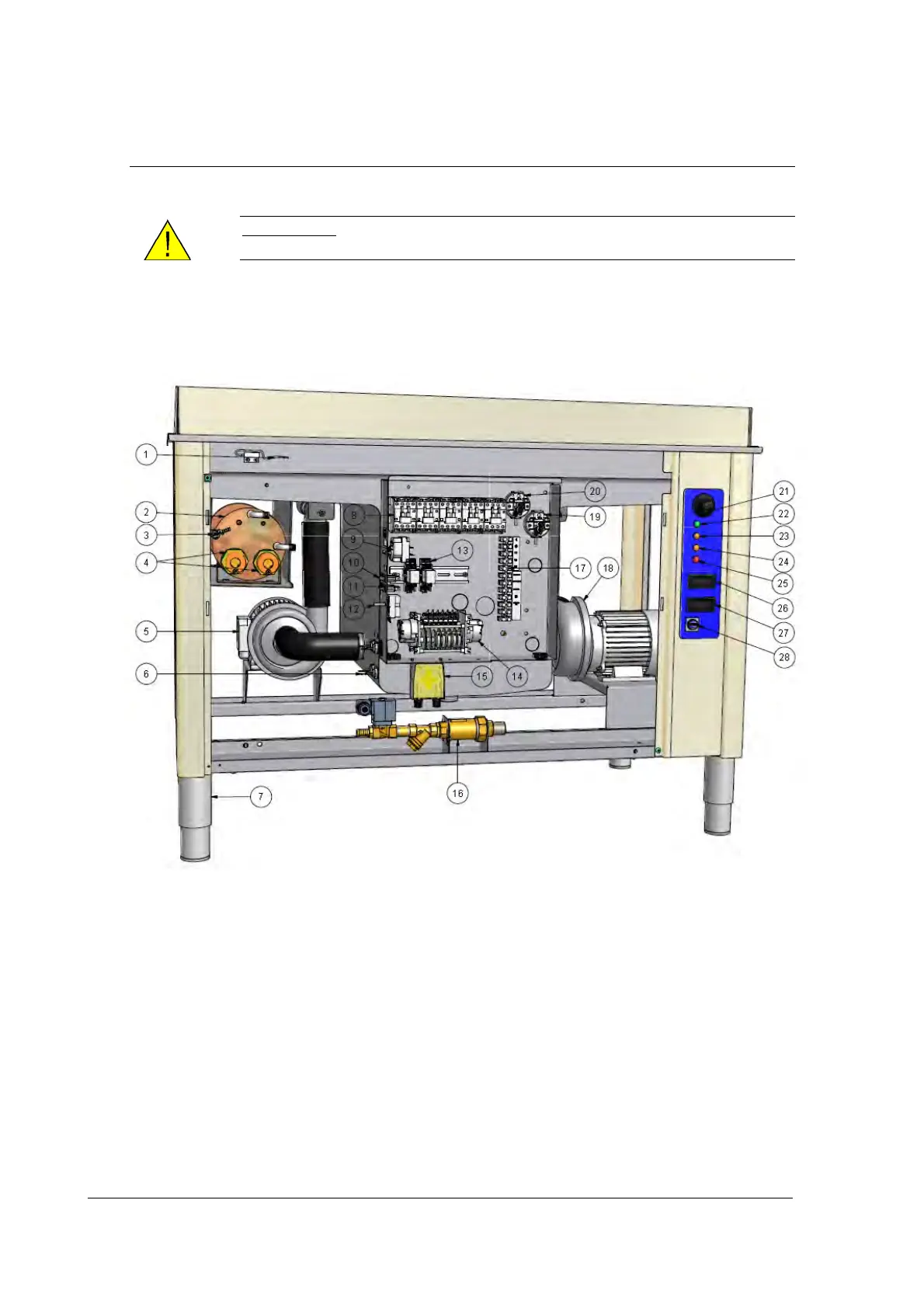

Location and Access
1. Door Switch
2. Rinse Tank
3. Rinse Over-Temp. Thermostat
4. Rinse Heating Elements
5. L/H Wash Pump
6. Wash Heating Elements
7. Adjustable Feet
8. Contactors
9. Rinse Thermostat
10. Test Switch
11. Detergent Prime Switch
12. Wash Thermostat
13. Control Relays
14. Timer
15. Detergent Pump
16. Fill /Rinse Solenoid Valve
Assembly
17. Power/Chemical Supply
Terminal
18. R/H Wash Pump
19. Upper Level Pressure Switch
20. Lower Level Pressure Switch
21. Power/Cycle Selector Switch
22. Cycle Light
23. Rinse Ready Light
24. Wash Ready Light
25. Power On Light
26. Rinse Temperature Gauge
27. Wash Temperature Gauge
28. Start Button
