Washtech PW2 - Solenoid Valve Assembly

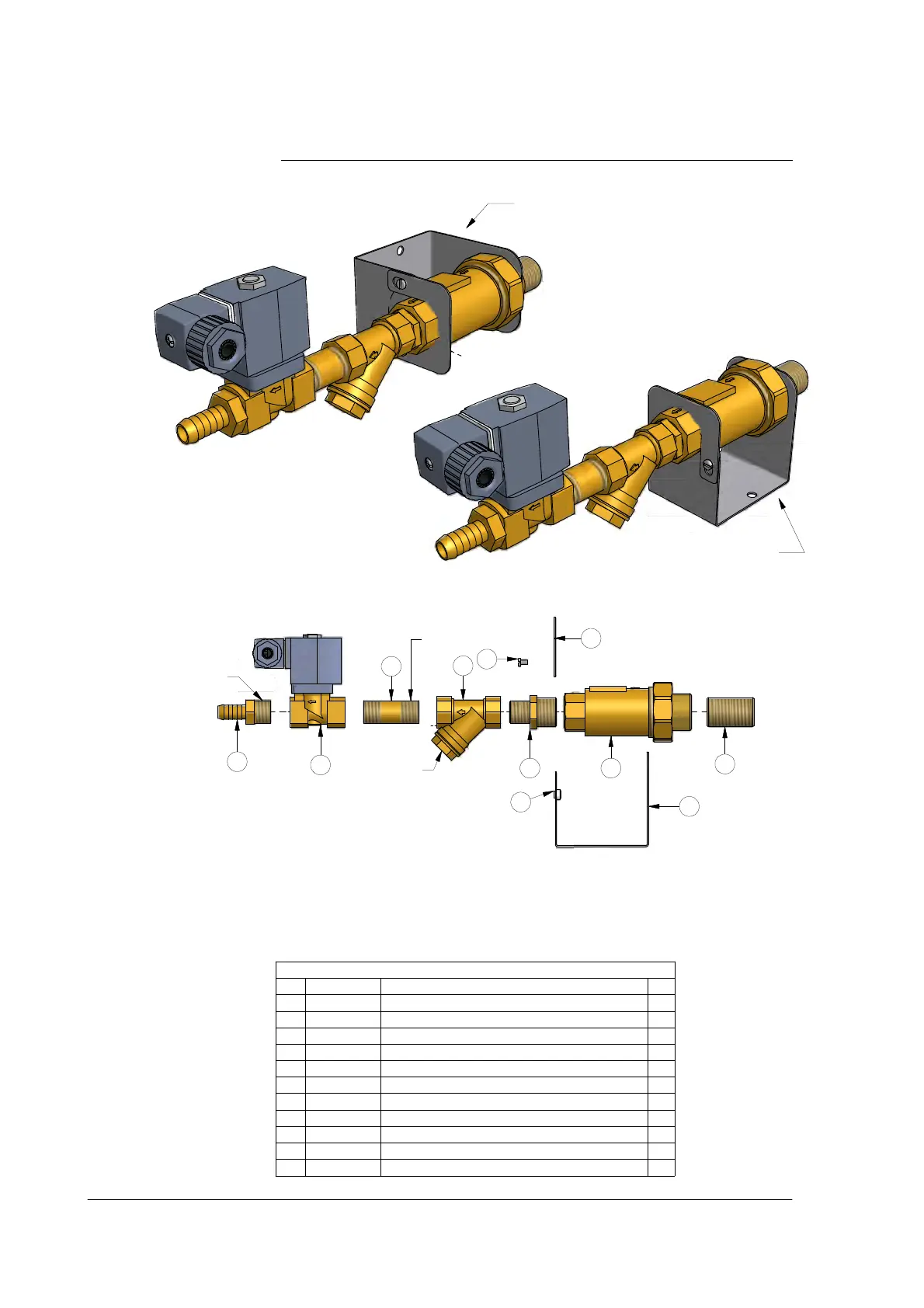

EXPLODED PERSPECTIVE VIEW
AL8 / PW1
AL\M2\PW2\PW3
400 10121
20/01/2009 3-E
ASSY RINSE SOLENOID M2/AL/PW(W)
REV
Parts List
QTYDESCRIPTION
PART NUMBERITEM
1TAILPIECE 1/2"X1/2" BSP61531
1NIPPLE 15mm x 50mm BRASS BARREL600 600032
1STRAINER LINE 1/269503
1DCV BOTTOM BRACKET400 201074
1
DCV TOP BRACKET
400 201085
1DUAL CHECK VALVE600 601086
2MS PAN POZI ZP M4x68800
7
1NIPPLE HEX REDUCING 20x15mm60418
1
3/4" x 3/4" BRASS NIPPLE FOR DCV
600 601119
2HANK BUSH 304 SS M4822510
1SOLENOID VALVE 1/2"600 3028911
NOTE:
1. USE LOCTITE 262 ON THIS THREAD
2. USE A131 PERMABOND ON ALL JOINTS
3. ENSURE SOLENOID, LINE STRAINER AND DCV FLOW DIRECTIONS ARE AS SHOWN
4. ANGLE LINE STRAINER PLUG 45 DEGREE FORWARD TO ALLOW REMOVAL
.
11
1
2
3
8
7
5
6
4
9
10
PLUG
(NOTE #4)
NOTE #2
NOTE #2
Bracket Rotated 90° for side mounting
Bracket mounted off floor
