Washtech PW2 - Rinse Tank Assembly

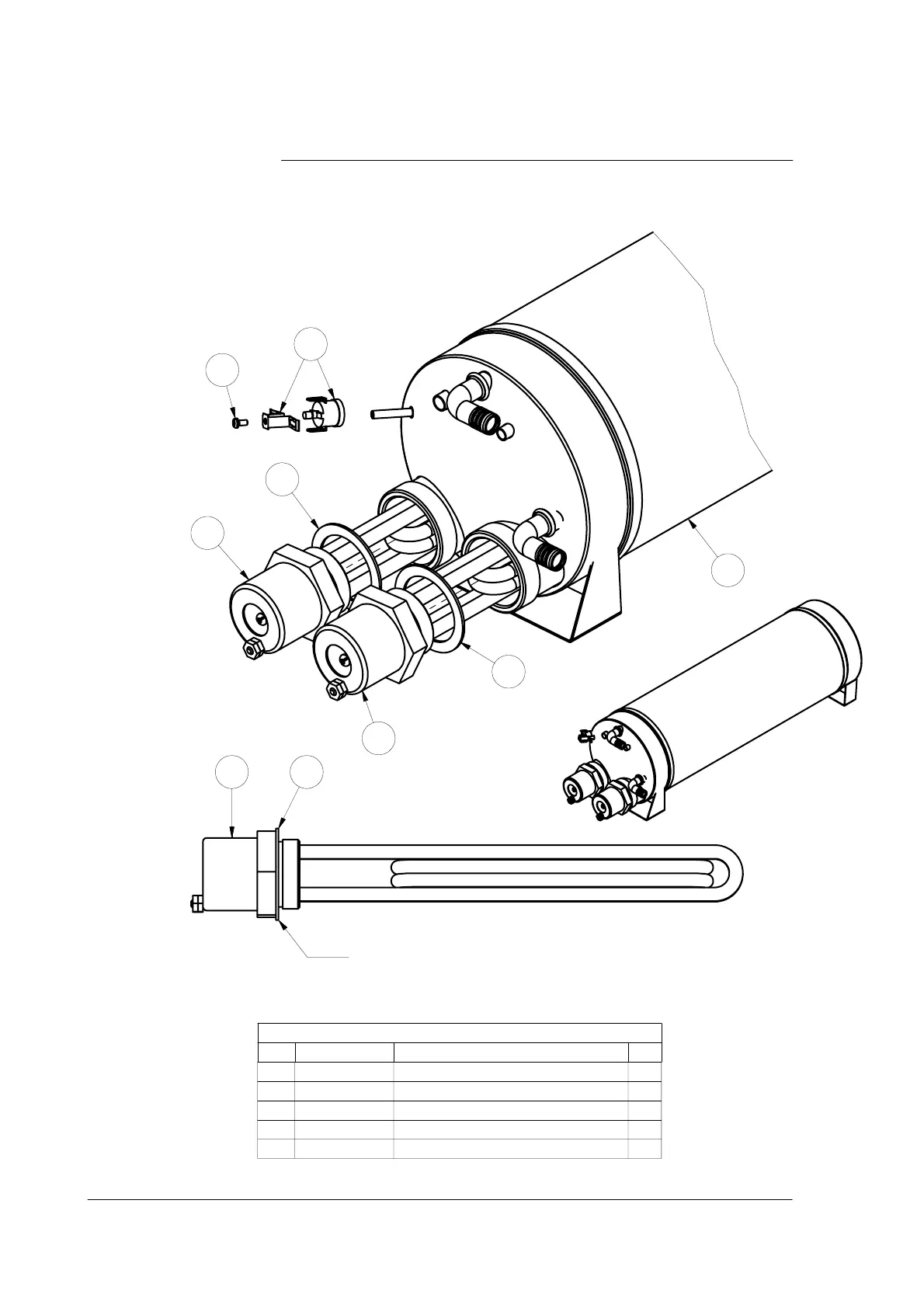

ISO VIEW
354 10009
10/02/2008
1-B
ASSY RINSE TANK AL8-3
REV
Parts List
QTYDESCRIPTIONPART NUMBERITEM
1SUB ASSEMBLY AL8(3) RINSE TANK400 101351
2
5KW RINSE ELEMENT
30052
2
ELEMENT GASKET
30063
1MS RH ZP M3x6600 800524
1TSTAT TY60/R-110C [WITH E BKT]600 30088_2
5
4
5
3
2
3
2
1
2 3
NOTE:
USE GRAPHITE JOINING COMPOUND
ON BOTH SIDES OF GASKET BEFORE
INSERTING ONTO ELEMENT.
Service Manual PW2(W)
26
Revision 1B
