Two TORX screws
Height-adjustment bracket
MS-extension bracket
c. Using two TORX screws, attach the hinge assembly on the column-heater housing
to the height-adjustment bracket, using the set of holes that reposition the column-
heater housing at the correct height for the mass spectrometer inlet.
d. Reinspect the positioning height and, if necessary, adjust the height of the column-
heater housing by removing the hinge from the height-adjustment bracket, and then
reattaching it using different holes.
9. From the MS-bracket kit, obtain the MS-bracket drip tray and two T20 TORX screws.
10. Attach the MS-bracket drip tray to the column-heater housing using the two TORX screws.

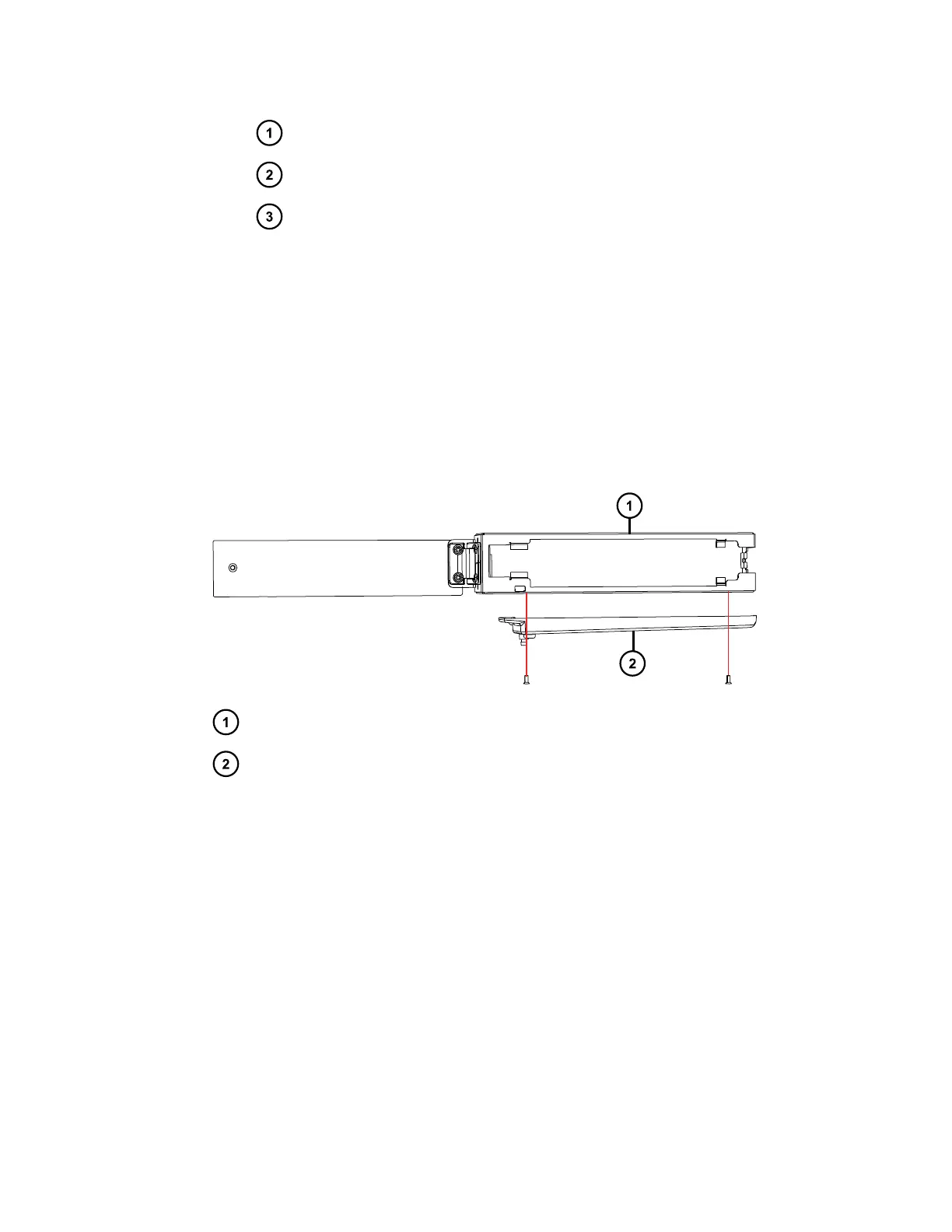

Figure 2–21: Attaching the MS-bracket drip tray to the column-heater housing
Column-heater housing
MS-bracket drip tray
11. If you require leak detection, align the leak sensor’s T-bar with the slot in the left-hand side
of the MS-bracket drip tray, and then slide the leak sensor into place.
