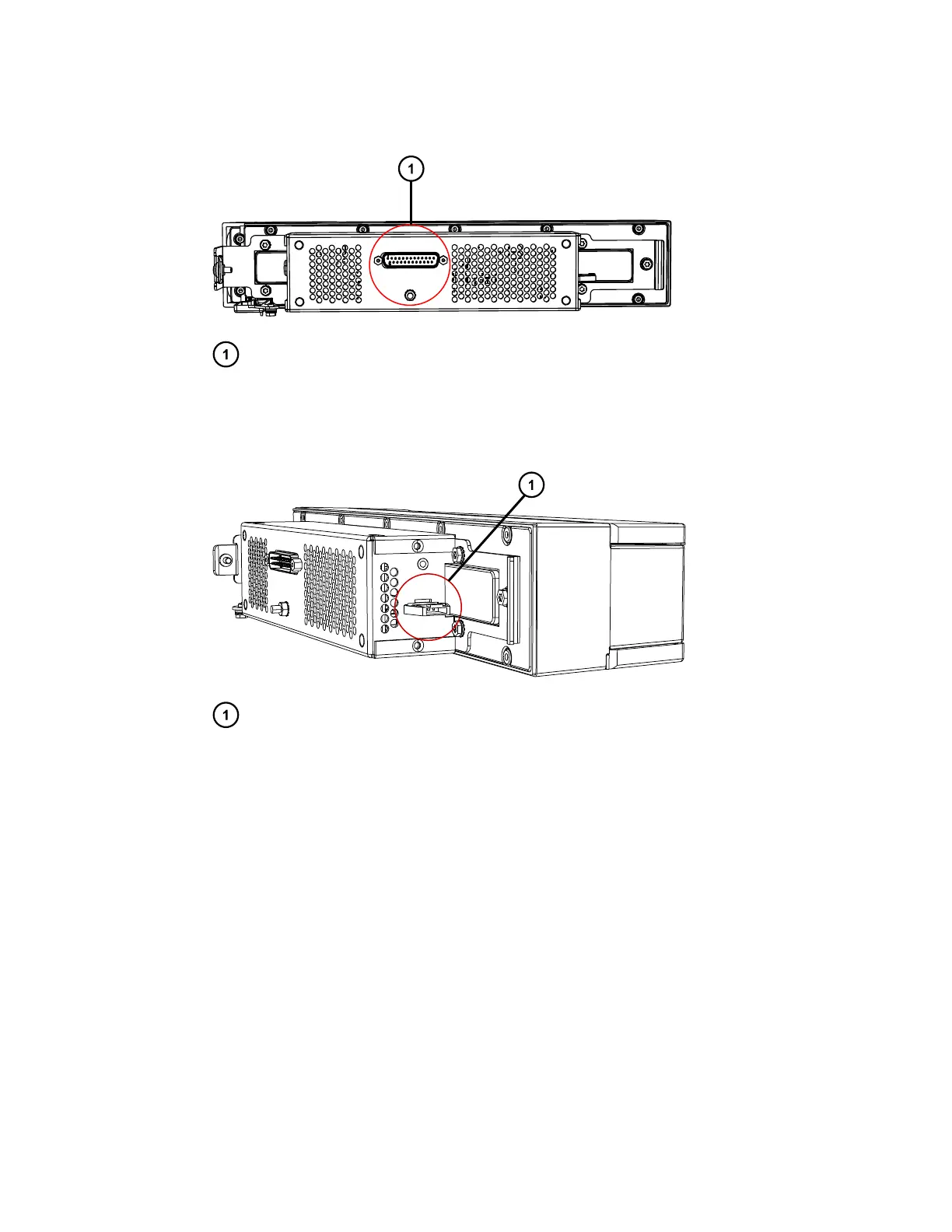

Figure 3–2: Rear view of column heater showing D-sub receptacle
D-sub receptacle on rear of column heater
9. Press down on the tab to detach the leak-sensor connector from the receptacle located on
the rear, left-hand side of the column heater.
Figure 3–3: Leak-sensor receptacle on the rear, left-hand side of the column heater
Receptacle for the leak-sensor connector
10. Set the column heater aside.
11. Locate the leak sensor in the MS-bracket drip tray mounted to the underside of the column-
heater housing.
December 4, 2019, 715005052 Version 02 (previously released as Rev.B)
Page 72
