Engaging the APGC trolley:
To engage the APGC trolley:
1. Slide the locking plate forward so that the two indentations meet the
supporting pillars under the instrument.
2. Push the trolley toward the locking plate so that the two indentations
meet the supporting pillars under the trolley.
3. Lift the locking lever.
4. Push the locking tab toward the locking plate as far as it will go.
5. Release the locking lever, ensuring that the inner notch engages firmly
with the locking tab.
6. Adjust the stabilizers until the trolley is entirely stable, level, and at a
suitable height for the heated transfer line to engage with the
instrument source.
Tip: Use a spirit level to ensure that the trolley is level.
1
2
4
3
5

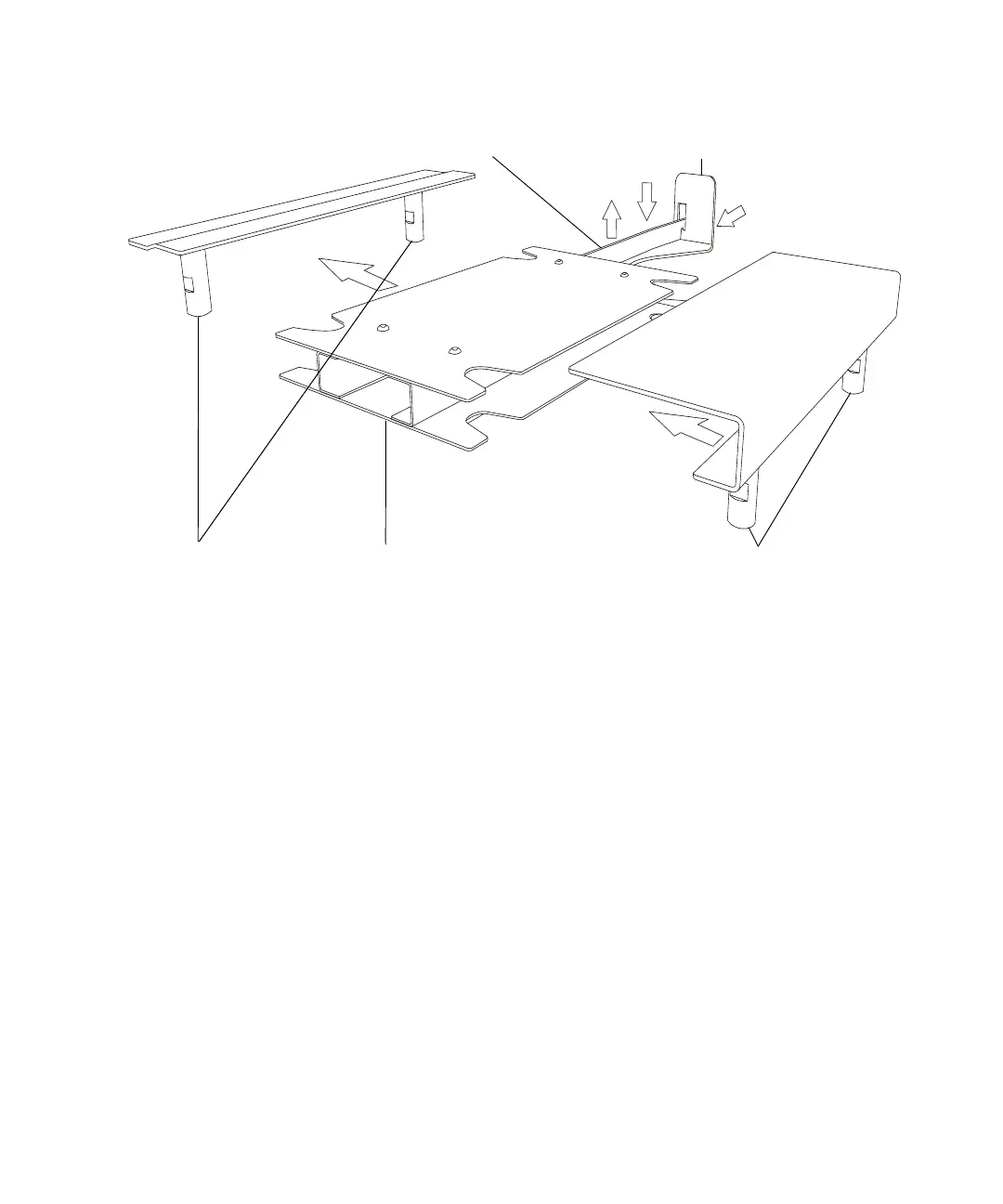

Supporting pillars
(trolley)
Locking plate
Locking lever Locking tab
Supporting pillars
(instrument)
