2-4 Setting up the APGC
5. Pull the source enclosure release (located at the bottom, right-hand side)
outwards, and swing open the enclosure.
6. If a corona pin is fitted, use the needle-nose pliers to remove it.
Tip: Store the corona pin in a location where it will not be damaged.
7. Using two hands, grasp the source enclosure, and lift it vertically off the
two supporting studs on the source adaptor housing.

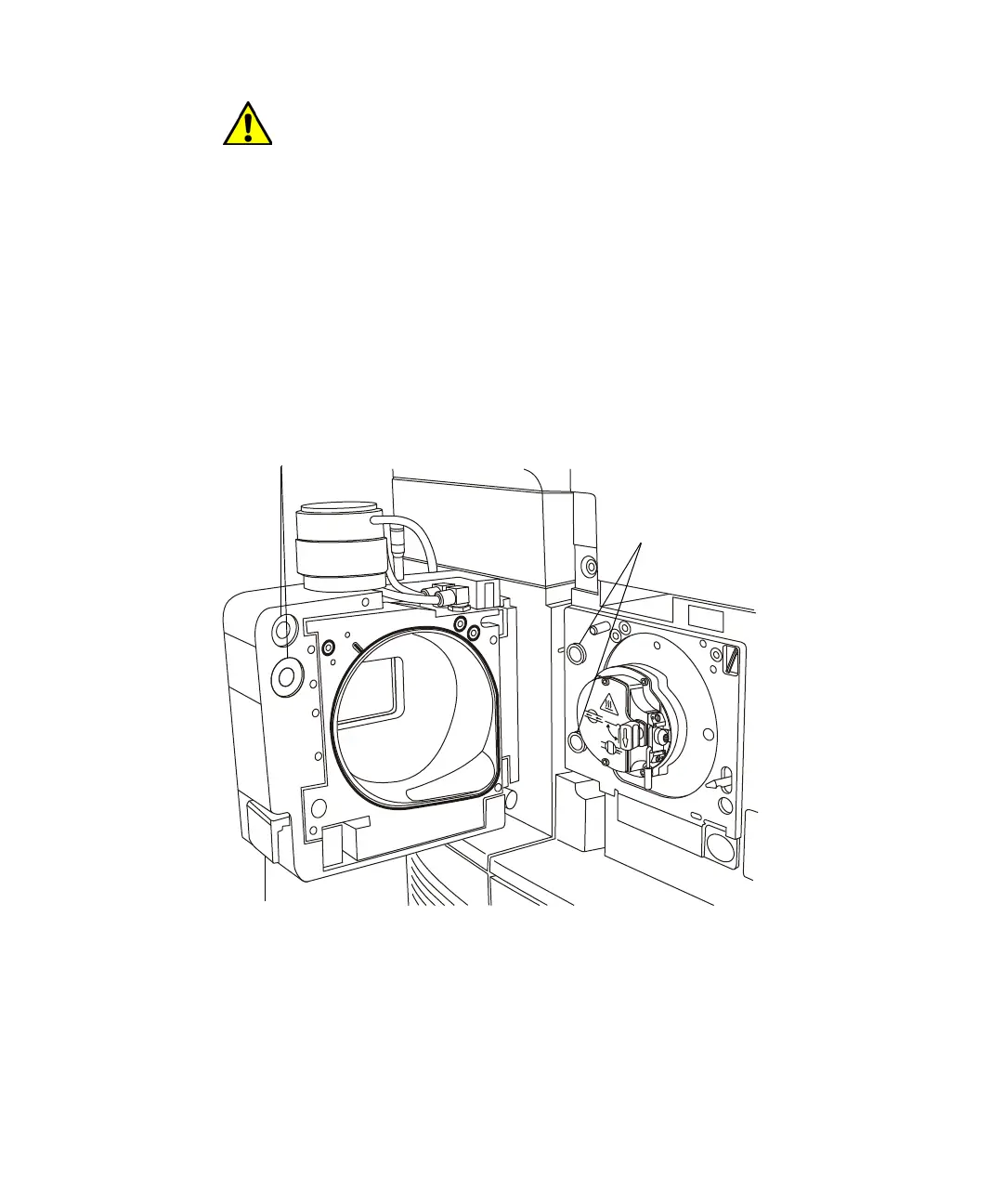

Removing the source enclosure:
8. Store the cables neatly by plugging them into the cable storage positions
on the rear of the source enclosure.
Caution: To avoid damaging the sample inlet, when removing a
NanoLockSpray™ source enclosure, you must slide the sprayer
platform out of the source enclosure before you open the enclosure.
Supporting studs
Source enclosure release
Cable storage positions
