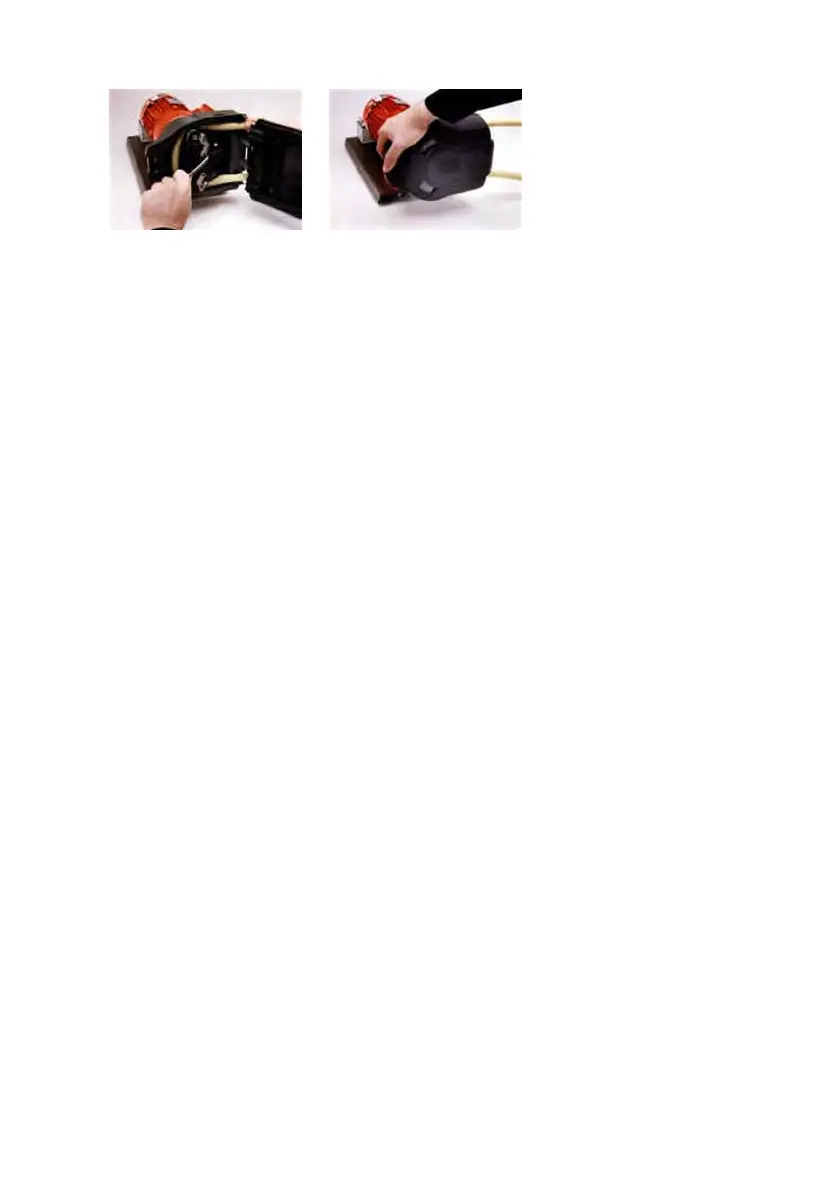

Continuous tubing clamp location in 620RA pumpheads
l Select the appropriate tube clamp set for the tubing size to be used.
l Locate the two “U”-shaped track clamp halves into the pumphead ports (The “U”-shape ensures
correct loading)
l Locate the corresponding guard clamp halves which have raised “T” locating sections, into the slots
on the inner guard face above and below the guard hinge. Push and slide into their locked position.
l Closing the guard will align the two halves of the clamp around the tubing.
