8.2 Assembly
Fitting the track

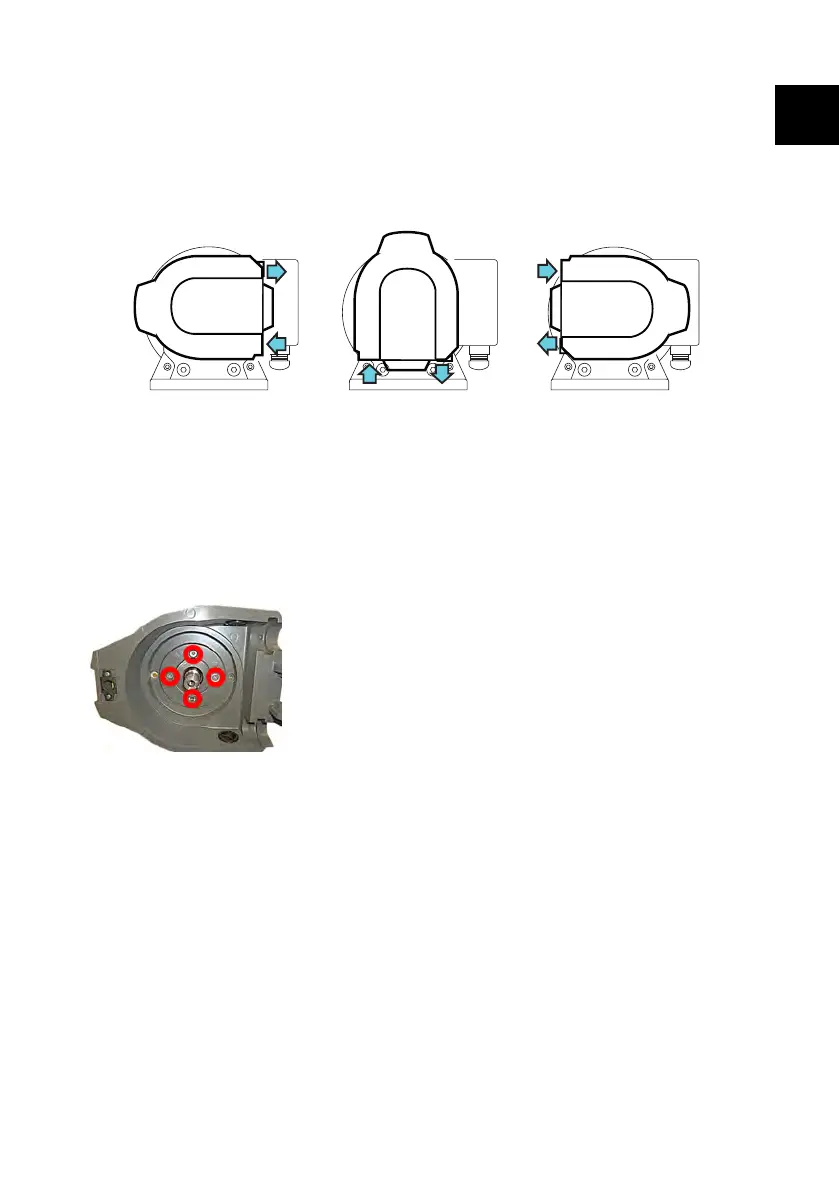

Any one of three tubing input/output positions can be selected .
Ports Right Ports Down Ports Left
l Ensure the drive/motor flange mounting threads are free from dirt or oil.
l Select the required orientation then fit the track over the drive shaft and locating boss.
l Align the track horizontally/vertically so the four location holes are aligned with the threaded
gearbox holes.
l Secure the track to the drive with the four retaining screws supplied using a suitable "No2Pozi-drive"
screwdriver.
l Ensure the earth terminal on the track is connected to earth.
PB0347:m-620atex-en-03 12
