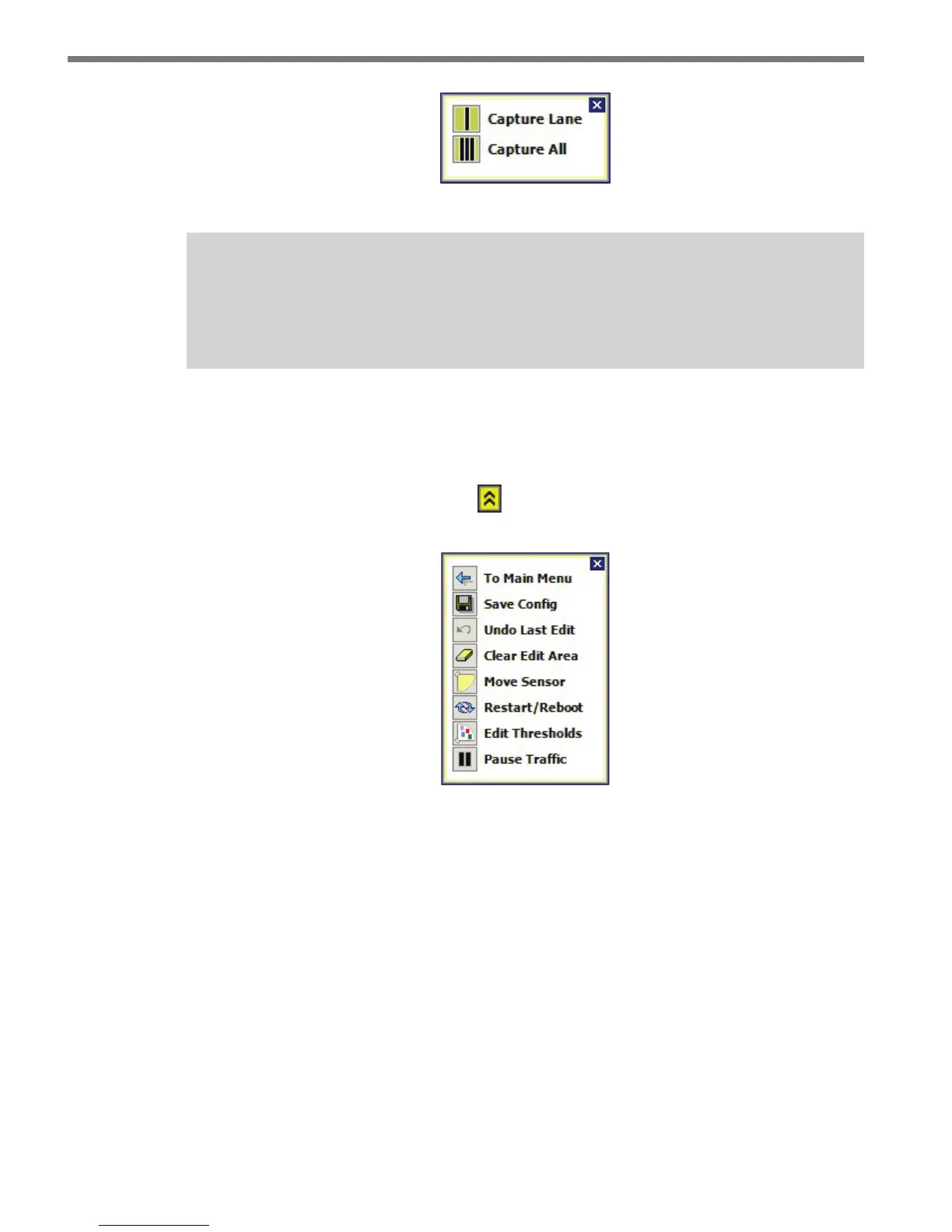

Figure 7.6 – Capture Window
Note
If a stop bar is found for a lane during the auto-configuration process, it will be cap-
tured with the lane.
Menu Bar
e menu bar at the bottom of the screen allows you to perform a variety of operations
during sensor conguration. Click the button at the right side of the menu bar to open
a window that shows descriptions for the various menu icons (see Figure 7.7).
Figure 7.7 – Sensor Setup Menu Window
e Menu Bar contains the following options:
 To Main Menu – Returns you to the main menu.
 Save Config – Saves the lanes and stop bars to the sensor.
 Undo Last Edit – Undoes the last change in the edit area.
 Clear Edit Area – Deletes all lanes from the edit area.
 Move Sensor – Moves the sensor to a dierent corner of the edit area and rotates the
view accordingly.
 Restart/Reboot – Gives you the option to restart automatic conguration or reboot
the sensor.
 Edit Thresholds – Allows you to edit the sensor’s thresholds.
 Pause Trac – Suspends or resumes movement of vehicle tracks on the screen.
