Please Do Not Return This Product To The Store. Call Us Directly! Our Trained Technicians Will Answer Your Questions and/or Ship Any Parts You May Need
7
9

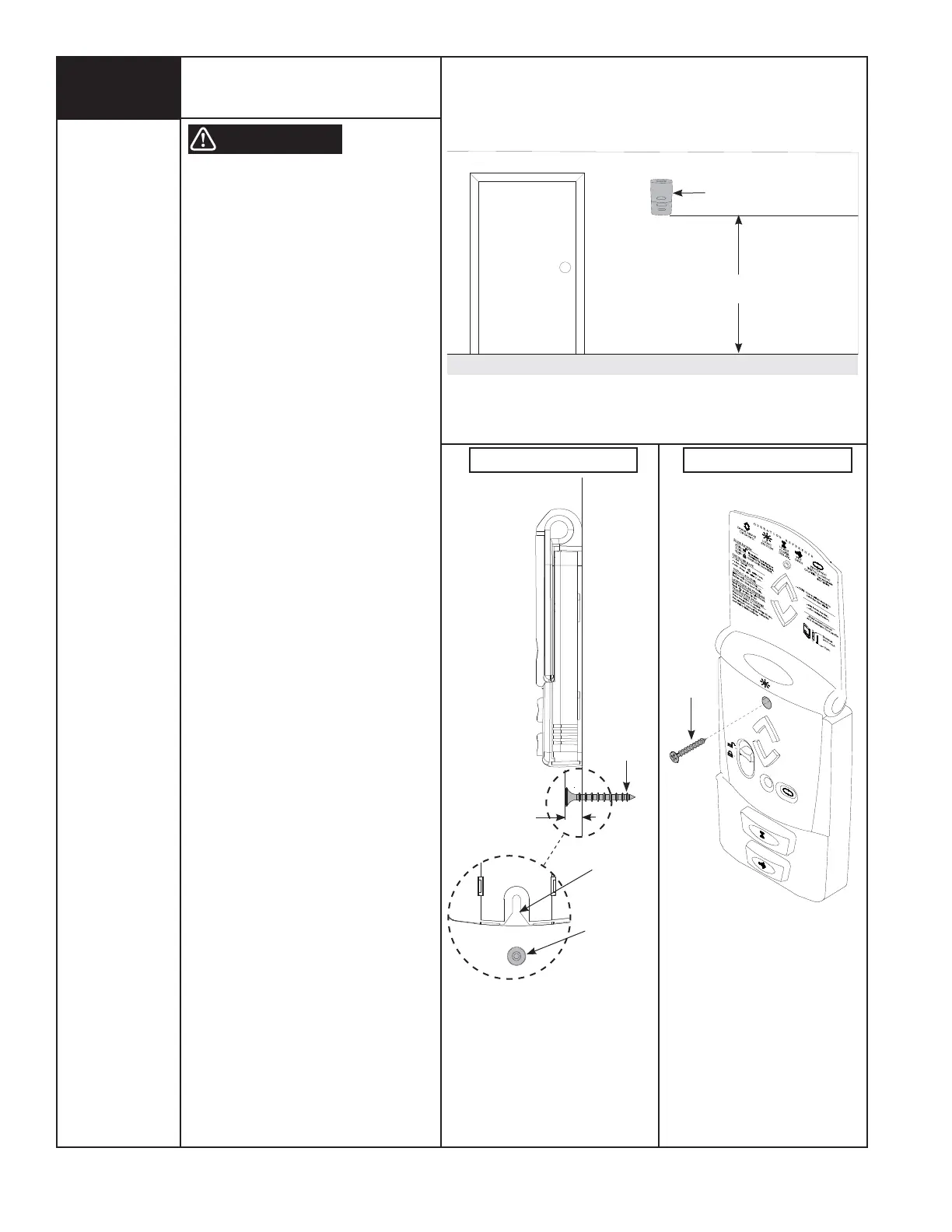

Deluxe Multi-Function Wireless
Wall Station Installation
(If Included)
Tools Needed:
Power Drill
3/32” Drill Bit
Phillips Head
Screwdriver
TO PREVENT POSSIBLE INJURY, INSTALL
WALL STATION OUT OF THE REACH OF
CHILDREN AND IN A LOCATION WHERE
THE DOOR CAN BE SEEN WHEN THE
OPENER IS ACTIVATED. DO NOT MOUNT
WALL STATION NEAR OR NEXT TO
GARAGE DOOR.
NOTE: For proper operation, mount the wall
station on a flat surface.
The wall station can be mounted to a NEMA
standard electrical box or directly to any wall
surface. No wiring is required.
Locate wall station adjacent to service
entrance door at a minimum height of 5 ft.,
and at least 6 ft. away from garage door.
If mounting to a NEMA electrical box, use
machine thread screws provided in place of the
wood screws. No drilling is required. If high
voltage wiring is contained in the box,
a standard NEMA solid faceplate must be
installed between the box and the wall station. If
fastening into drywall or concrete, use anchors
provided. When mounting to wood use a 3/32"
drill bit and the drilling template located on
page 39. Drill the two 3/32” mounting holes
using the drill template. Drill 3/16" holes if
using anchors.
Install lower screw leaving 7/16" of the screw
exposed. Slide wall station keyhole slot onto the
lower phillips head screw. Wall station should
slide onto screw, providing a snug fit. If
necessary remove wall station and loosen or
tighten lower phillips head screw until a snug fit
is achieved.
Once wall station is fitted on lower screw, install
upper screw. Do not over-tighten.
CAUTION: Over tightening the upper screw
could deform plastic case.
WARNING
Wall Station
5 Foot
Minimum
Lower Screw Installation Upper Screw Installation
7/16”
Keyhole
Slot
Phillips
Head Screw
Phillips
Head Screw
Phillips Head
Screw
To Next Page
