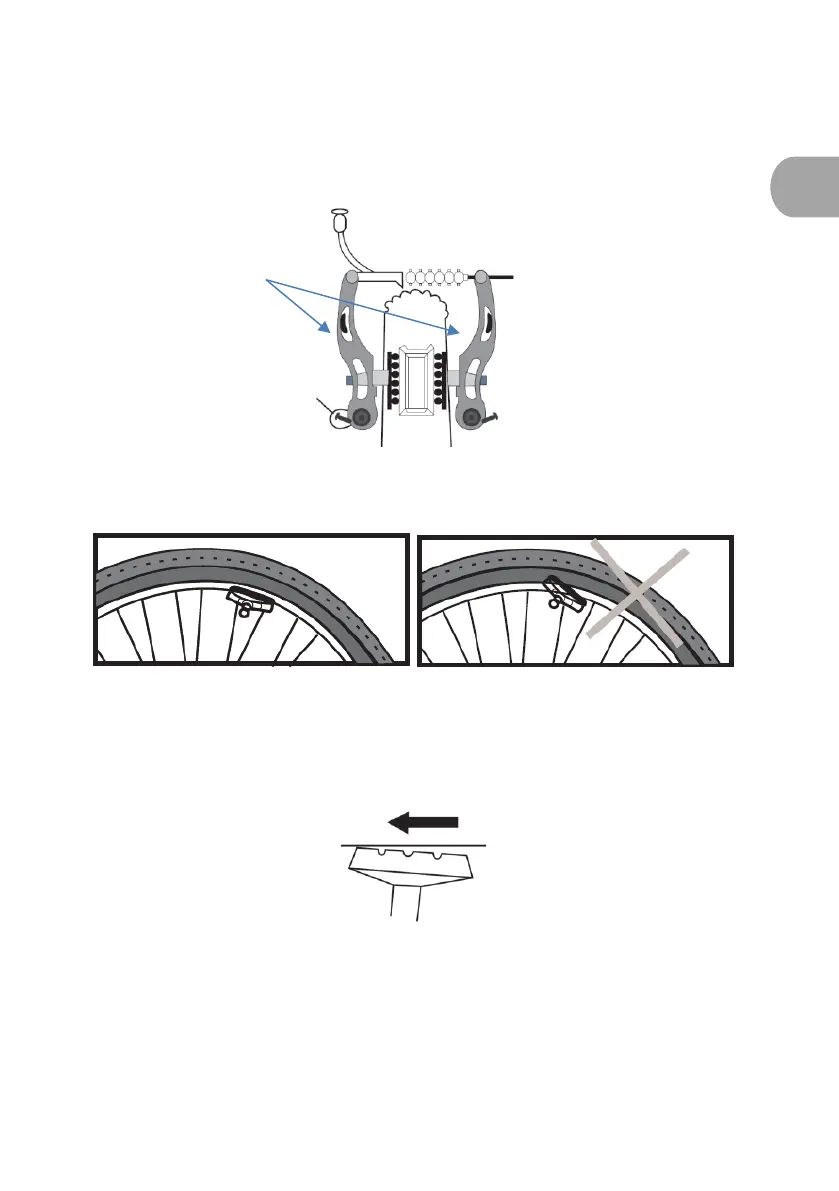

• Position the caliper arms vertically and parallel using the correct
cable tension. Once the cable position has been defined,
tighten the cable with the appropriate screw.
• Align the pad with the side of the wheel rim.
• Adjust the distance between the pads and the wheel rim, from
1 to 3 mm, to increase the efficiency of the braking.
• Move the back of the pad slightly off the wheel rim.
• Adjust the symmetry of the calipers by balancing the return
springs of the right and left calipers.
