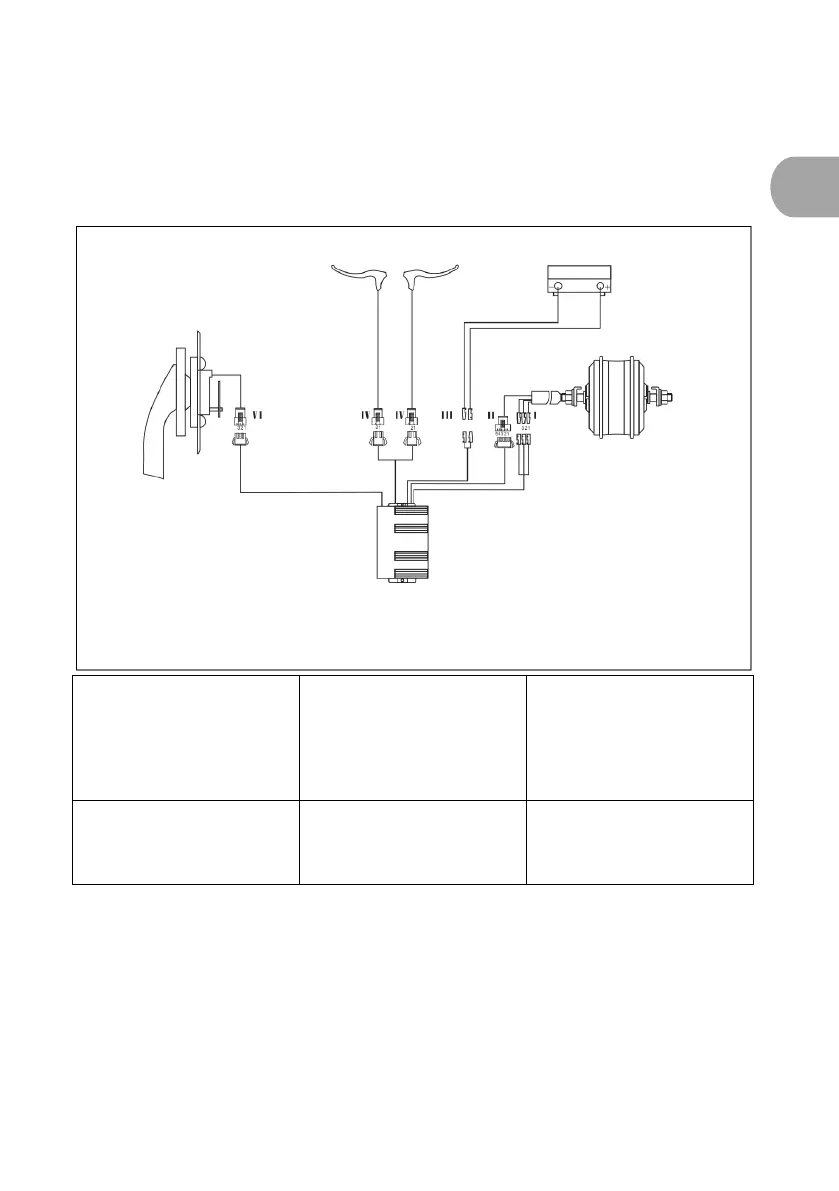

G. Electrical diagram and specifications
We reserve the right, without notice, to modify this product. For any
additional information, please contact your retailer.
I. 3-phase engine cable
1. Green (HA engine)
2. Yellow (HB engine)
3. Blue (HC engine)
II. Engine
1. Red (+5V)
2. Yellow (H3 engine)
3. Green (H2 engine)
4. Blue (H1 engine)
5. Black (earth)
III. Power cable
1. Red (36V)
2. Black (earth)
IV. Brake lever cable
1. Blue (earth)
2. Red (brake lever
signal)
V. Speed sensor cable
1. Blue (signal)
2. Red (+5V)
3. Black (earth)
Brake
Left
Right
Battery
Engine
Brushless controller
Black
Red
