INSTRUCTION MANUAL
5.1.2 Transmitter module for Futaba FC-18/FC-28 transmitters
Remove the original antenna and HF module. Screw the adapter stalk into where the original antenna was fitted (in the case of the WZ-2 the adapter
is slid over the collapsed antenna) and plug the weatronic adapter module into where the original HF module was fitted to the rear of the transmitter.
Plug one end of the connecting cable into the adapter module and fit the transmitter module to the antenna stalk so that the LEDs are on the upper
side (visible when looking at the front of the transmitter). The connecting cable should now be plugged into the transmitter module.

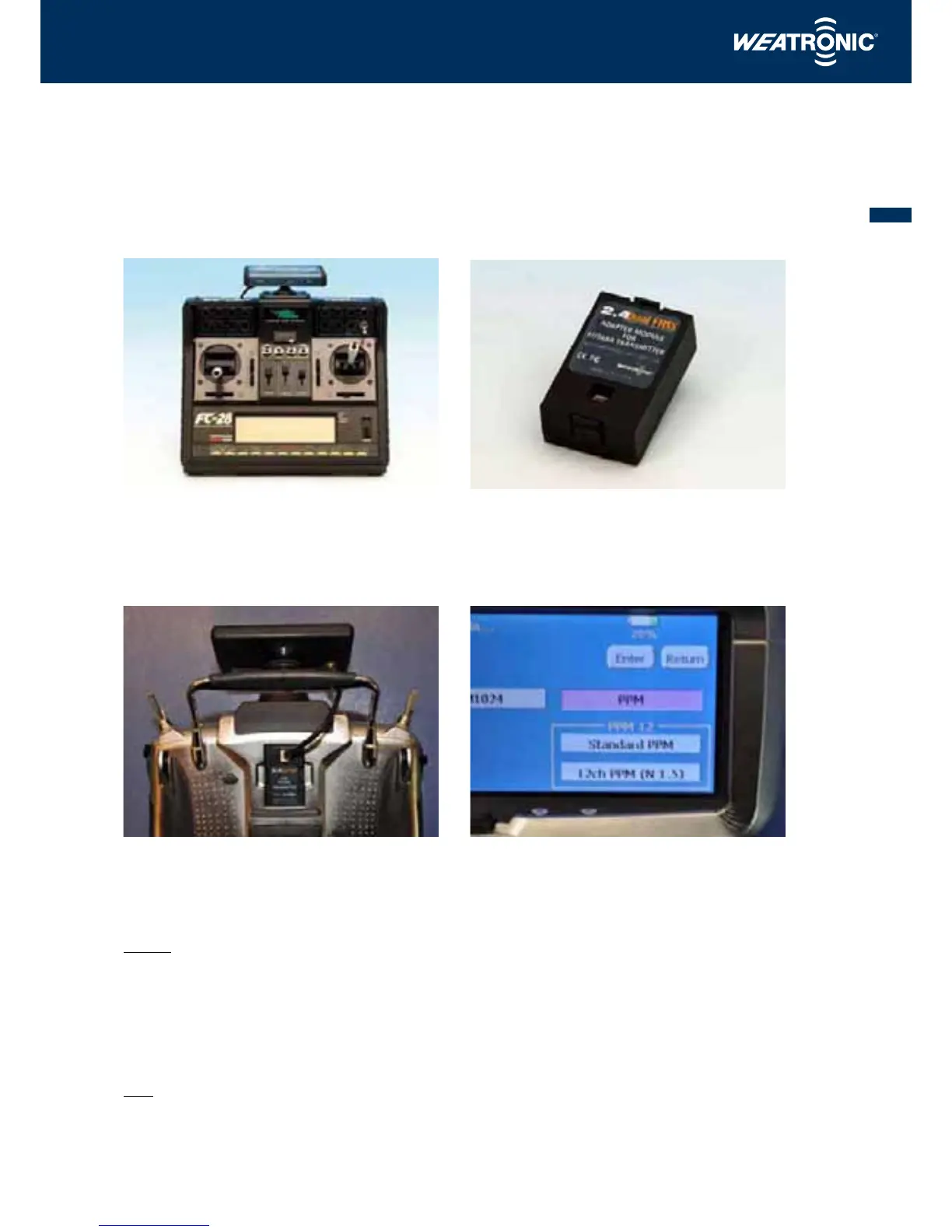

weatronic transmitter module fitted to a Futaba FC-28 transmitter Adapter module for Futaba FC-18 and FC-28 transmitters
5.1.3 Transmitter module for Futaba T12FG, T14MZ, FX-30, FX-40 transmitters
Remove the original HF module and carefully replace it with the weatronic adapter module ensuring that it seats correctly.
weatronic adapter module on Futaba's T14MZ transmitter Choose this modulation
Connect the adapter module to the transmitter module ensuring that the cable is properly locked home. To release the connecting cable, gently press
both sides of the plug.
Settings:
• Set your Futaba transmitter to channel 285 (35.250 MHz).
• Both PPM and PCM 1024 modulation can be used.
• If using PPM 12 modulation, set the middle point to ‘1.5’.
• Make sure that you do NOT select ‘invert’.
These settings are purely to enable the adapter module to communicate with the transmitter module. The actual signal which will be transmitted is
dictated by the weatronic system.
Note:
If using the transmitter types T12FG, T14MZ you will require the adapter module with the part number WZ 6.FU5_35 and for transmitter models
FX-30, FX-40 the adapter module with the part number WZ 6.FU6_35 should be used.
