Cool Top Trail 20/24 10

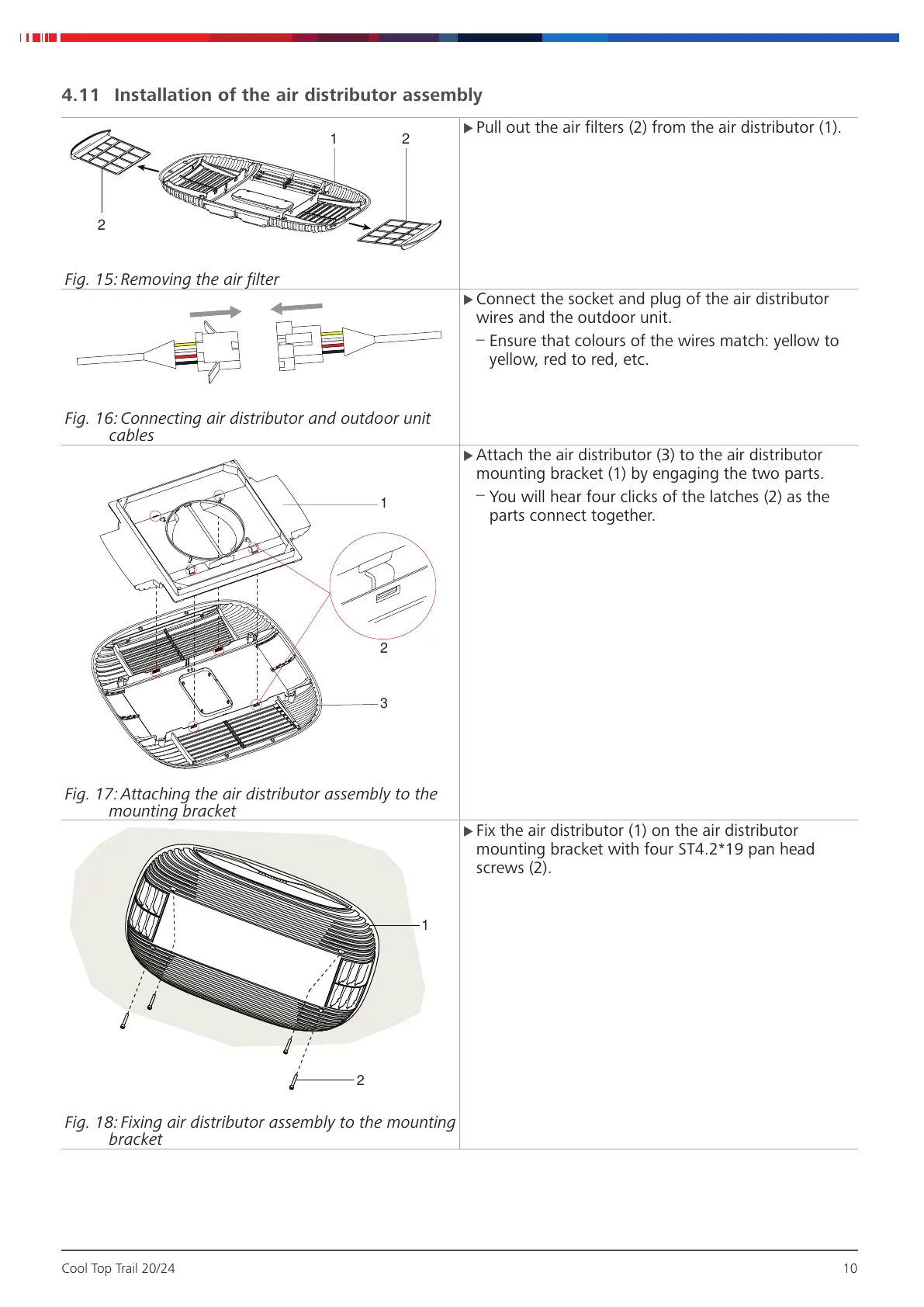

4.11 Installation of the air distributor assembly
2
Fig. 15: Removing the air filter
X Pull out the air filters (2) from the air distributor (1).
Fig. 16: Connecting air distributor and outdoor unit
cables
X Connect the socket and plug of the air distributor
wires and the outdoor unit.
–
Ensure that colours of the wires match: yellow to
yellow, red to red, etc.
1
2
3
Fig. 17: Attaching the air distributor assembly to the
mounting bracket
X Attach the air distributor (3) to the air distributor
mounting bracket (1) by engaging the two parts.
–
You will hear four clicks of the latches (2) as the
parts connect together.
1
2
Fig. 18: Fixing air distributor assembly to the mounting
bracket
X Fix the air distributor (1) on the air distributor
mounting bracket with four ST4.2*19 pan head
screws (2).
