Cool Top Trail 20/24 5

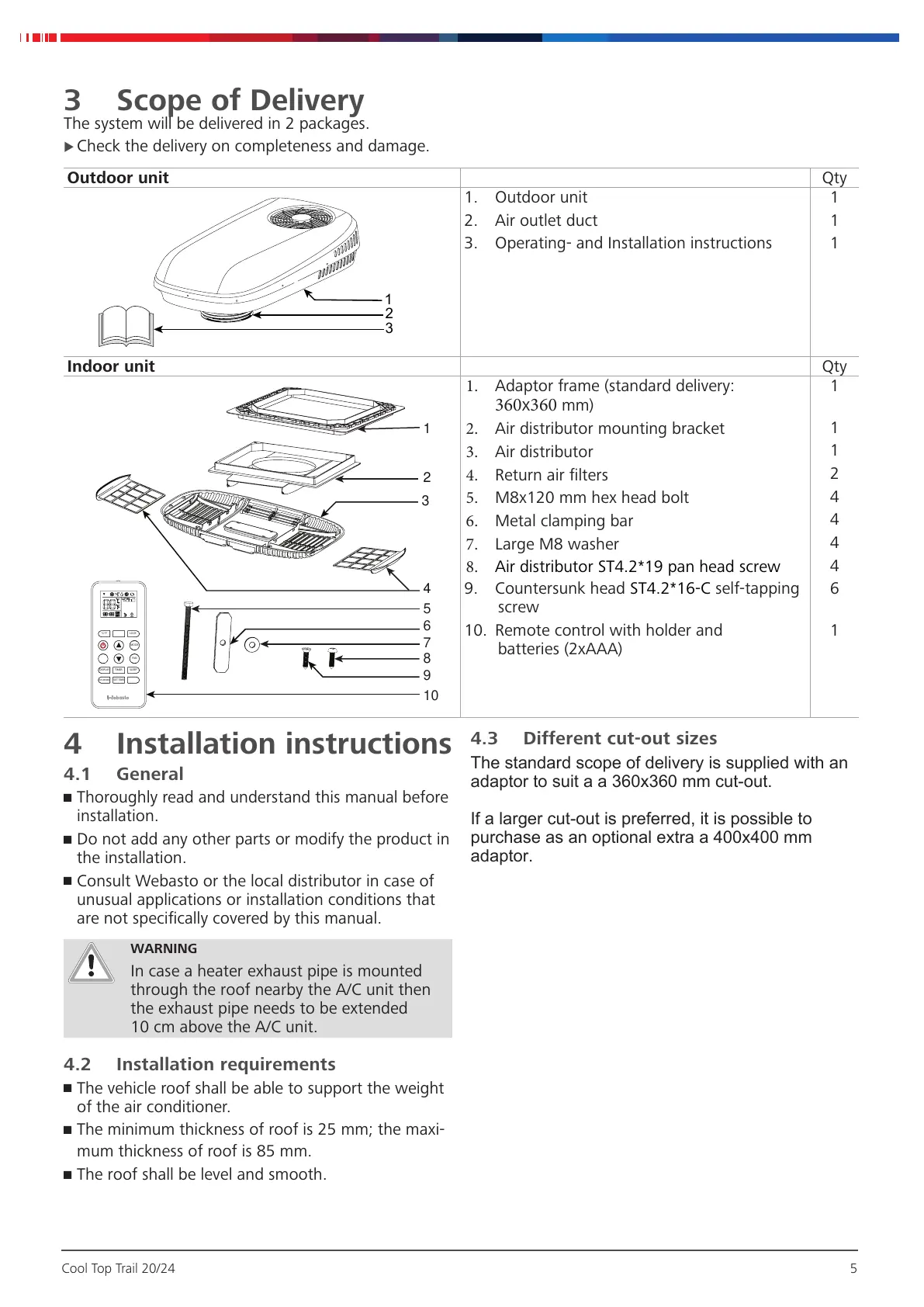

3 Scope of Delivery
The system will be delivered in 2 packages.
X Check the delivery on completeness and damage.
Outdoor unit Qty
1
2
3
1. Outdoor unit
2. Air outlet duct
3. Operating- and Installation instructions
1
1
1
Indoor unit Qty
LOCK
MODE
FAN
SLEEP
SET TIME
HOUR/MIN
TIMER
°C/°F
DISPLAY
2
4
3
1
6
7
8
9
5
10
1.Adaptor frame (standard delivery:
360x360 mm)
2.Air distributor mounting bracket
3.Air distributor
4.Return air filters
5.M8x120mm hex head bolt
6.
Metal clamping bar
7.Large M8 washer
8.Air distributor ST4.2*19 pan head screw
9. Countersunk head ST4.2*16-C self-tapping
screw
10. Remote control with holder and
batteries (2xAAA)
1
1
1
2
4
4
4
4
6
1
4 Installation instructions
4.1 General
■
Thoroughly read and understand this manual before
installation.
■
Do not add any other parts or modify the product in
the installation.
■
Consult Webasto or the local distributor in case of
unusual applications or installation conditions that
are not specifically covered by this manual.
WARNING
In case a heater exhaust pipe is mounted
through the roof nearby the A/C unit then
the exhaust pipe needs to be extended
10cm above the A/C unit.
4.2 Installation requirements
■
The vehicle roof shall be able to support the weight
of the air conditioner.
■
The minimum thickness of roof is 25mm; the maxi-
mum thickness of roof is 85mm.
■
The roof shall be level and smooth.
4.3 Different cut-out sizes
The standard scope of delivery is supplied with an
adaptor to suit a a 360x360 mm cut-out.
If a larger cut-out is preferred, it is possible to
purchase as an optional extra a 400x400 mm
adaptor.
