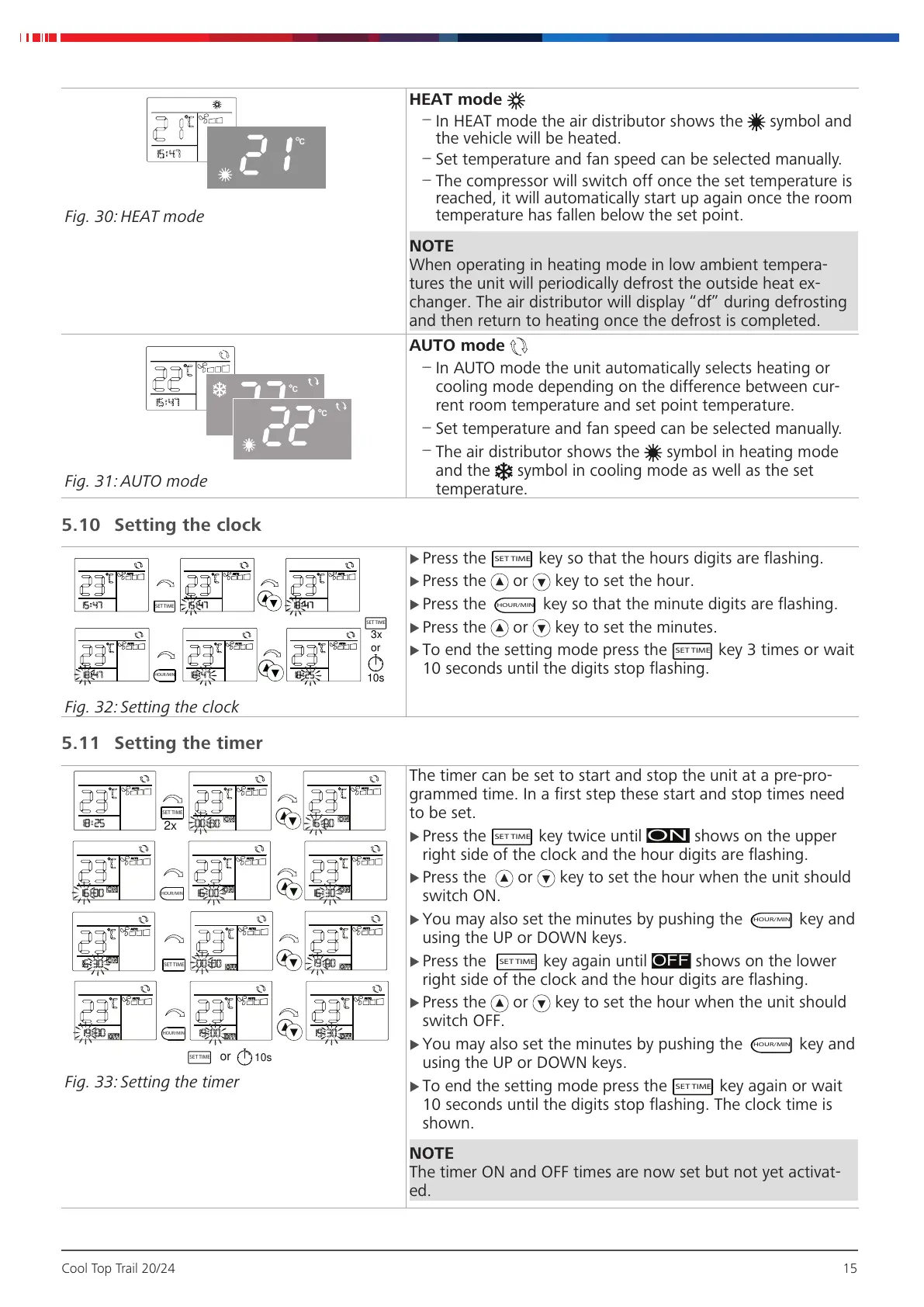

Fig. 30: HEAT mode
HEAT mode
–
In HEAT mode the air distributor shows the
symbol and
the vehicle will be heated.
–
Set temperature and fan speed can be selected manually.
–
The compressor will switch off once the set temperature is
reached, it will automatically start up again once the room
temperature has fallen below the set point.
NOTE
When operating in heating mode in low ambient tempera-
tures the unit will periodically defrost the outside heat ex-
changer. The air distributor will display “df” during defrosting
and then return to heating once the defrost is completed.
C
C
Fig. 31: AUTO mode
AUTO mode
–
In AUTO mode the unit automatically selects heating or
cooling mode depending on the difference between cur-
rent room temperature and set point temperature.
–
Set temperature and fan speed can be selected manually.
–
The air distributor shows the
symbol in heating mode
and the
symbol in cooling mode as well as the set
temperature.
5.10 Setting the clock
SET TIME
HOUR/MIN
SET TIME
3x
or
10s
Fig. 32: Setting the clock
X Press the
SET TIME
key so that the hours digits are flashing.
X Press the or key to set the hour.
X Press the
HOUR/MIN
key so that the minute digits are flashing.
X Press the or key to set the minutes.
X To end the setting mode press the
SET TIME
key 3 times or wait
10 seconds until the digits stop flashing.
5.11 Setting the timer
SET TIME
HOUR/MIN
2x
SET TIME
HOUR/MIN
SET TIME
or
10s
Fig. 33: Setting the timer
The timer can be set to start and stop the unit at a pre-pro-
grammed time. In a first step these start and stop times need
to be set.
X Press the
SET TIME
key twice until
ON
shows on the upper
right side of the clock and the hour digits are flashing.
X Press the or key to set the hour when the unit should
switch ON.
X You may also set the minutes by pushing the
HOUR/MIN
key and
using the UP or DOWN keys.
X Press the
SET TIME
key again until
OFF
shows on the lower
right side of the clock and the hour digits are flashing.
X Press the or key to set the hour when the unit should
switch OFF.
X You may also set the minutes by pushing the
HOUR/MIN
key and
using the UP or DOWN keys.
X To end the setting mode press the
SET TIME
key again or wait
10 seconds until the digits stop flashing. The clock time is
shown.
NOTE
The timer ON and OFF times are now set but not yet activat-
ed.
