Cool Top Trail 20/24 6

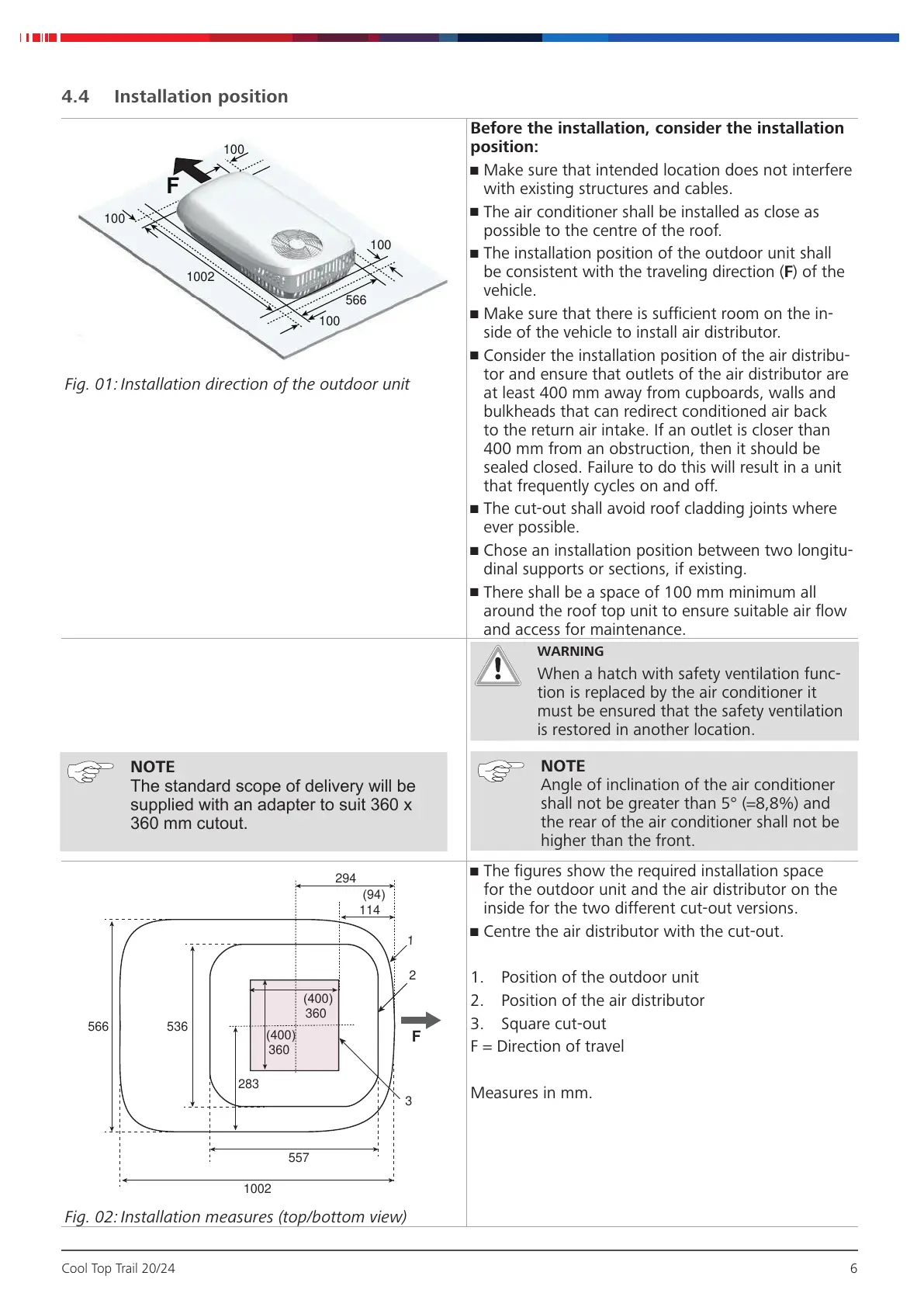

4.4 Installation position
566
1002
100
100
100
100
F
Fig. 01: Installation direction of the outdoor unit
Before the installation, consider the installation
position:
■
Make sure that intended location does not interfere
with existing structures and cables.
■
The air conditioner shall be installed as close as
possible to the centre of the roof.
■
The installation position of the outdoor unit shall
be consistent with the traveling direction (F) of the
vehicle.
■
Make sure that there is sucient room on the in-
side of the vehicle to install air distributor.
■
Consider the installation position of the air distribu-
tor and ensure that outlets of the air distributor are
at least 400mm away from cupboards, walls and
bulkheads that can r
edirect conditioned air back
to the return air intake. If an outlet is closer than
400mm from an obstruction, then it should be
sealed closed. Failure to do this will result in a unit
that frequently cycles on and off.
■
The cut-out shall avoid roof cladding joints where
ever possible.
■
Chose an installation position between two longitu-
dinal supports or sections, if existing.
■
There shall be a space of 100mm minimum all
around the roof top unit to ensure suitable air flow
and access for maintenance.
WARNING
When a hatch with safety ventilation func-
tion is replaced by the air conditioner it
must be ensured that the safety ventilation
is restored in another location.
NOTE
Angle of inclination of the air conditioner
shall not be greater than 5° (=8,8%) and
the rear of the air conditioner shall not be
higher than the front.
(400)
360
294
1
3
F
(400)
360
283
2
1002
566
(94)
114
536
557
Fig. 02: Installation measures (top/bottom view)
■
The figures show the required installation space
for the outdoor unit and the air distributor on the
inside for the two different cut-out versions.
■
Centre the air distributor with the cut-out.
1. Position of the outdoor unit
2. Position of the air distributor
3. Square cut-out
F = Direction of travel
Measures in mm.
NOTE
The standard scope of delivery will be
supplied with an adapter to suit 360 x
360 mm cutout.
