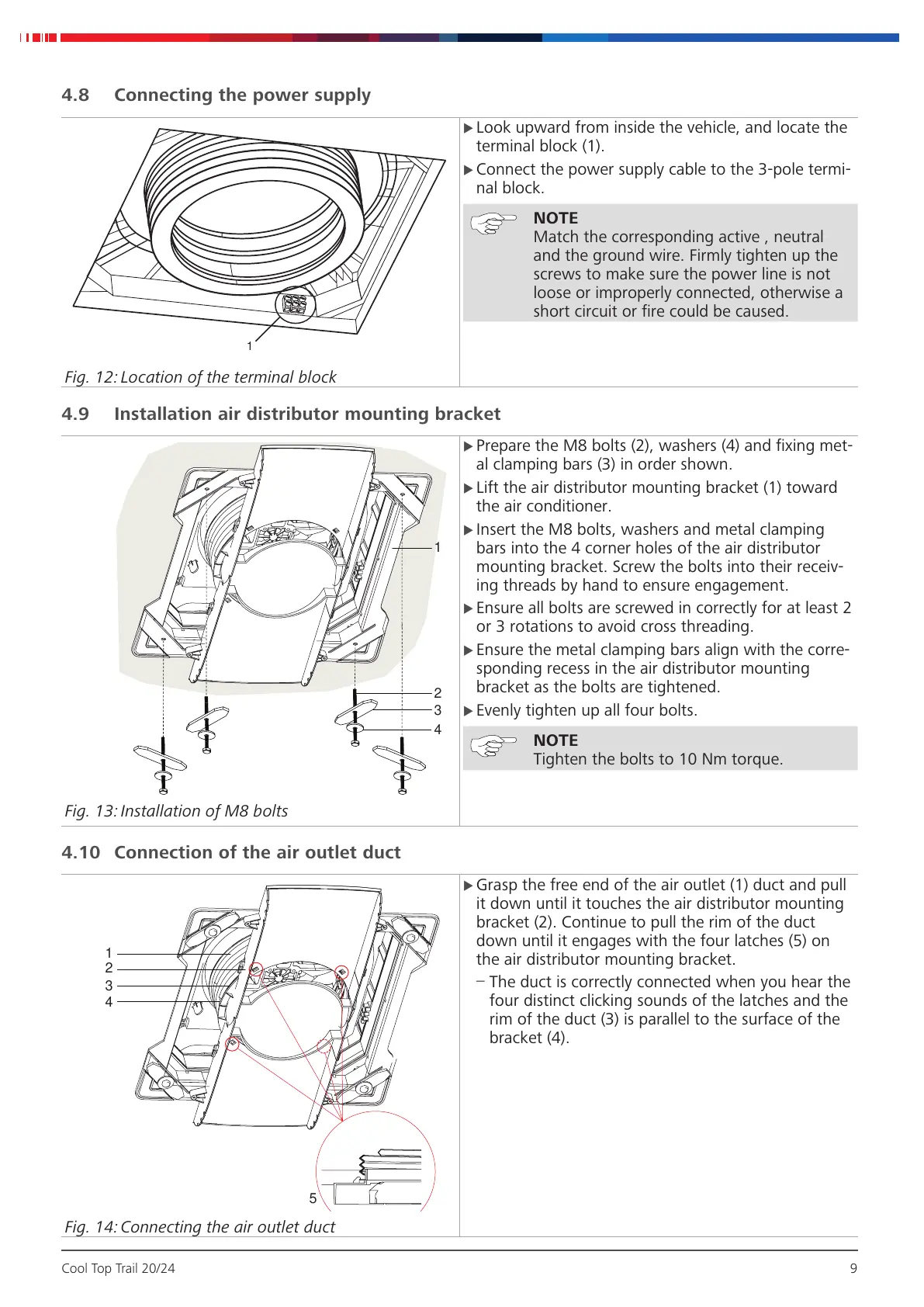

Cool Top Trail 20/24 9
4.8 Connecting the power supply
1
Fig. 12: Location of the terminal block
X Look upward from inside the vehicle, and locate the
terminal block (1).
X Connect the power supply cable to the 3-pole termi-
nal block.
NOTE
Match the corresponding active , neutral
and the ground wire. Firmly tighten up the
screws to make sure the power line is not
loose or improperly connected, otherwise a
short circuit or fire could be caused.
4.9 Installation air distributor mounting bracket
1
2
3
4
Fig. 13: Installation of M8 bolts
X Prepare the M8 bolts (2), washers (4) and fixing met-
al clamping bars (3) in order shown.
X Lift the air distributor mounting bracket (1) toward
the air conditioner.
X Insert the M8 bolts, washers and metal clamping
bars into the 4 corner holes of the air distributor
mounting bracket. Screw the bolts into their receiv-
ing threads by hand to ensure engagement.
X Ensure all bolts are screwed in correctly for at least 2
or 3 rotations to avoid cross threading.
X Ensure the metal clamping bars align with the corre-
sponding recess in the air distributor mounting
bracket as the bolts are tightened.
X Evenly tighten up all four bolts.
NOTE
Tighten the bolts to 10Nm torque.
4.10 Connection of the air outlet duct
1
2
3
4
5
Fig. 14: Connecting the air outlet duct
X Grasp the free end of the air outlet (1) duct and pull
it down until it touches the air distributor mounting
bracket (2). Continue to pull the rim of the duct
down until it engages with the four latches (5) on
the air distributor mounting bracket.
–
The duct is correctly connected when you hear the
four distinct clicking sounds of the latches and the
rim of the duct (3) is parallel to the surface of the
bracket (4).
