Webasto Cool Top Trail 20

Cool Top Trail 20/24
21
Annex

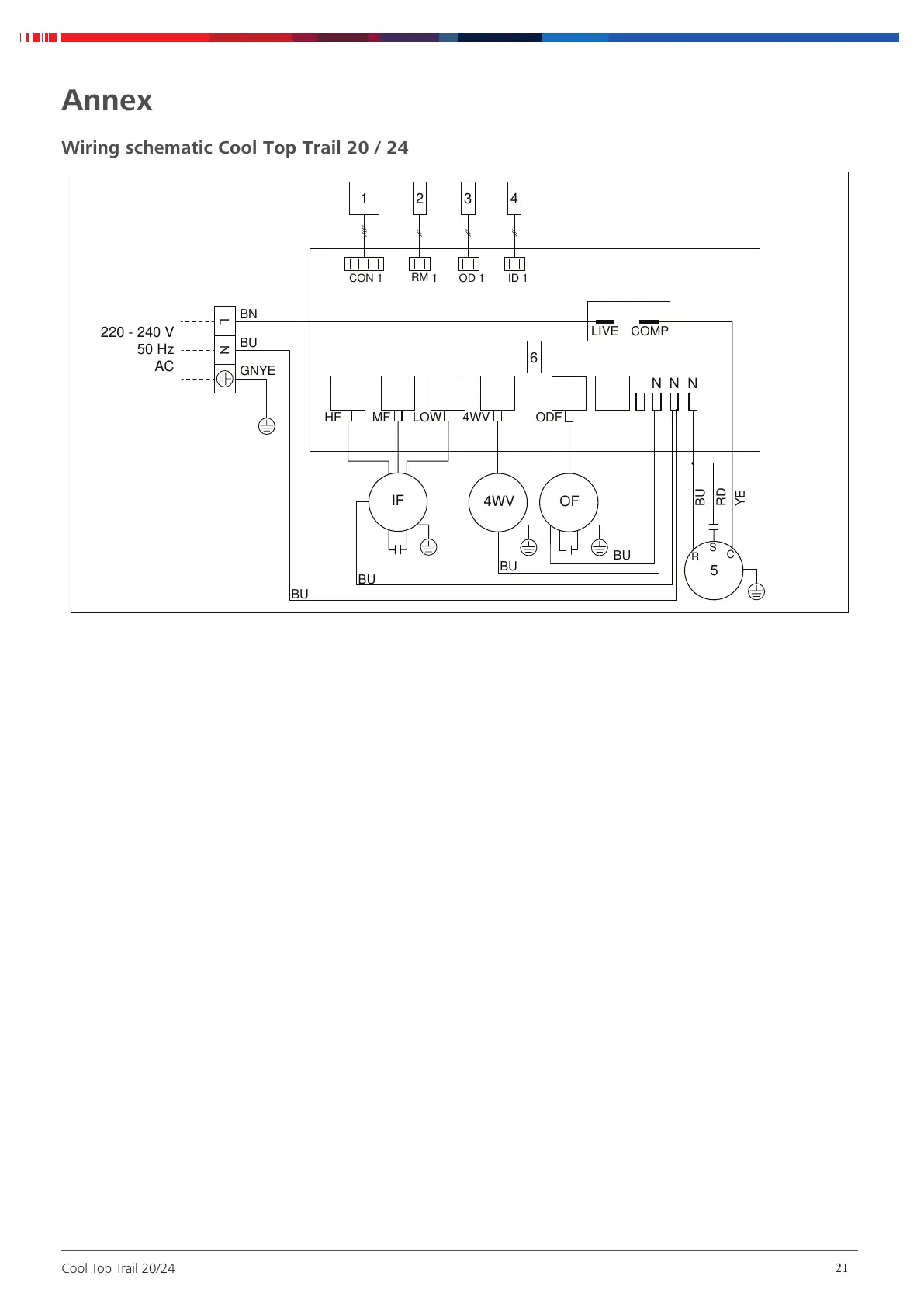

Wiring schematic Cool Top Trail 20 / 24
1234
CON 1
RM 1
OD 1 ID 1
HF MF LOW 4WV ODF
LIVE COMP
N N N
IF
4WV
OF
N
L
6
5
220 - 240 V
50 Hz
AC
BN
BU
GNYE
BU
BU
BU
BU
BU
YE
RD
R
C
S
