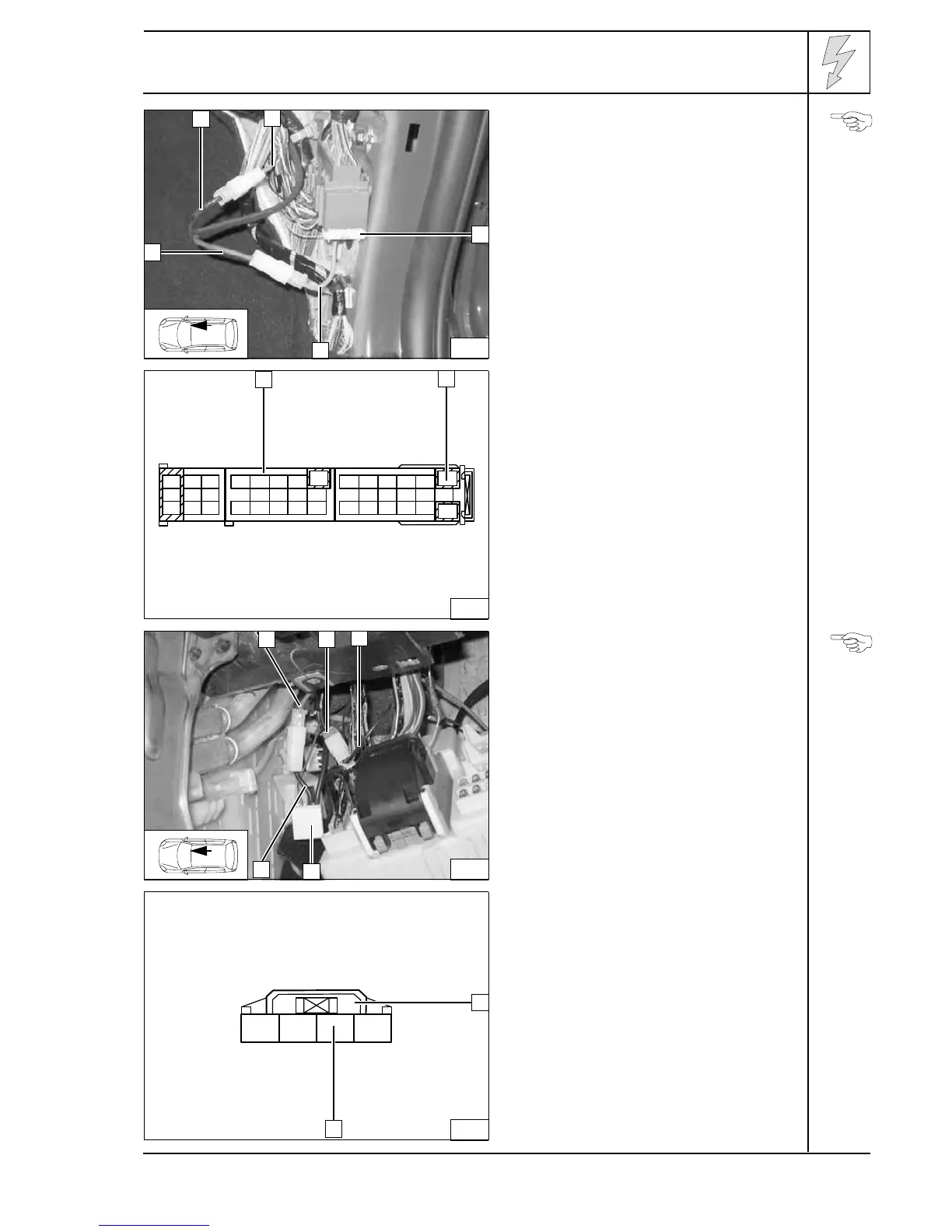

Connection to the connector 3 C-04
Connect with enclosed connectors according
to the circuit diagram.
1 Wire (sw) from K3/30
2 Pink/orange (ro/or) wire to blower motor.
4 Pink/orange (ro/or) wire to connector C-04.
5 Red (rt) wire from F3/87a
Positive
connection
to the
blower
motor
1 Connector C-04
2 Pink/orange (ro/or) slot.
Connector
C-04
Connection to 6-pin connector 4 from the
blower control.
1 Brown (br) wire from K3.1/87
2 Black/green (sw/gn) wire
3 Black (sw) wire from K3.1/87a
5 Black/green (sw/gn) wire
Positive
connection
to the
blower
motor
Connection to 6-pin connector 1 from the
blower control.
2 Black/green (sw/gn) wire
Blower
controller
connector
9
2
4
5
3
1
10
2
1
11
2
4
1
3
5
12
1
2
