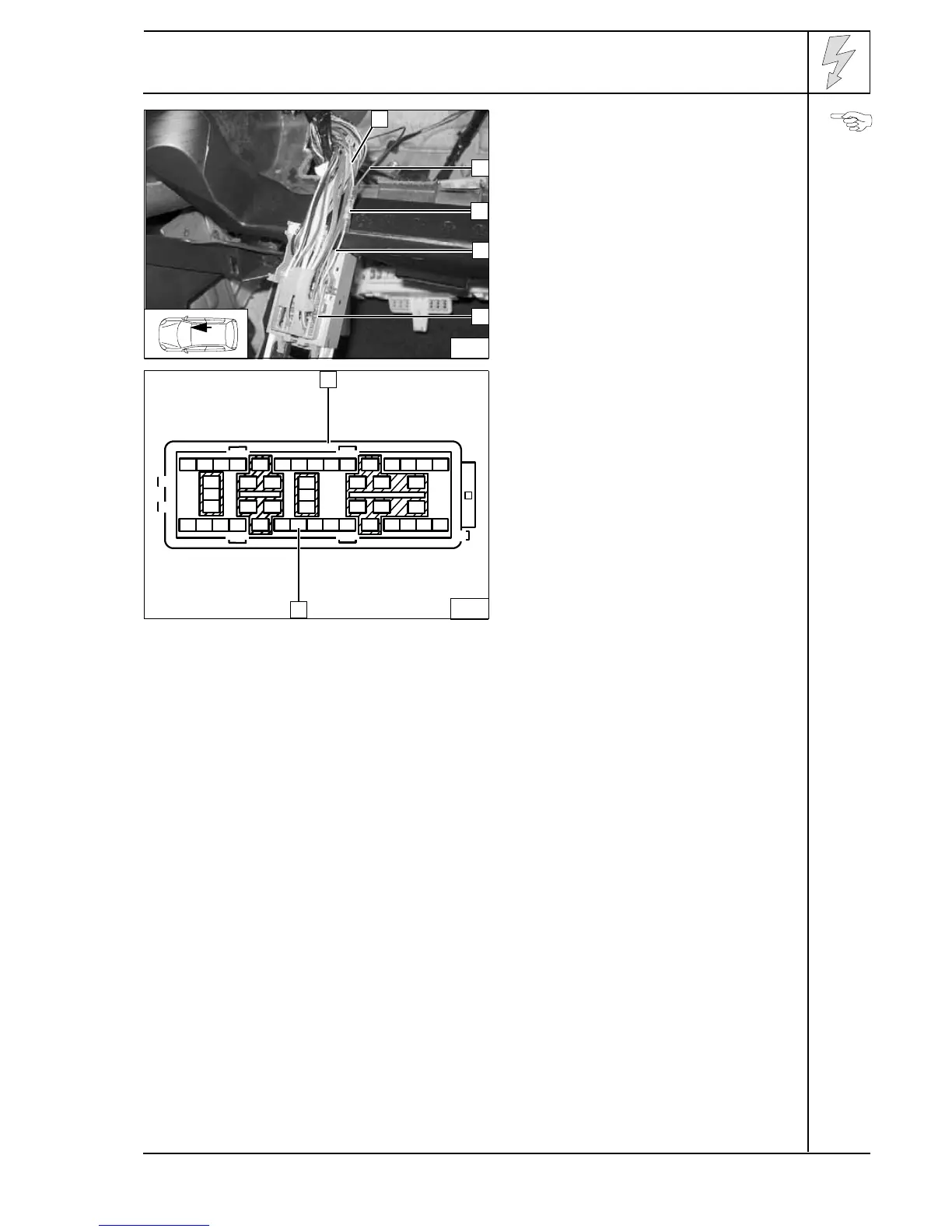

Pull the connection to connector 5 J-03 from
the PJB fuse and relay support.
Connect with enclosed butt connector 3
according to the circuit diagram.
1 Yellow (ge) wire
2 Black (sw) wire from K3.1/86
4 Yellow (ge) wire
Relay K3.1
control
1 Connector J-03
2 Yellow (ge) plug-in position
Connector
J-03
13
5
2
3
4
1
14
1
2
