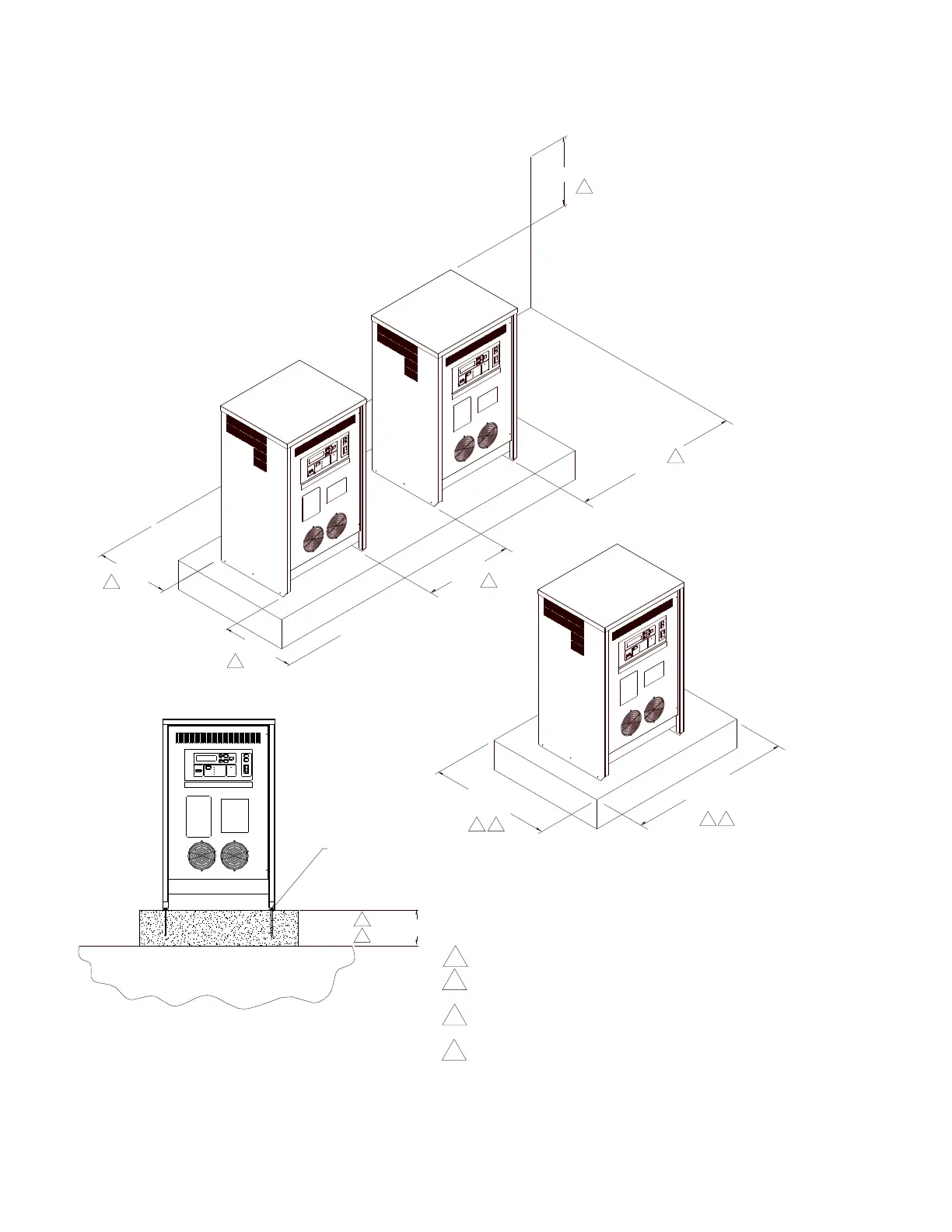

Figure 4- 1 SVS-300 Installation

A . 91.4cm (36 IN) MINIMUM WORKING CLEARANCE ON FRONT AND BACK

B. PAD MUST BE A MINIMUM OF 17.8cm (7 IN) ABOVE SURROUNDING CURB

OR WALKWAYS FOR WATER FLOOD CONTROL.

C. PAD SIZE MINIMUM FOR A SINGLE CHARGER 86.4cm (34") X 72.4cm (28.5")

CONCRETE 3000 PSI MIN

D. CONCRETE PAD REQUIRED ONLY FOR WATER FLOOD CONTROL

91.4cm

(36 in)

MIN.

30.5cm (12in) MIN.

72.4cm

(28.5 in)

MIN.

86.4cm

(34 in)

MIN.

17.8cm (7.00 in) MIN

CONCRETE HEIGHT

CONCRETE BOLT ANCHOR

6.4cm (1/4") DIA X 12.7cm (5.0") LG

45.7cm

(18 in)

MIN.

45.7cm

(18 in)

MIN.

91.4cm

(36 in)

MIN.
