Webasto Thermo Top C Installation Documentation

17
Peugeot 207 / 207 SW / 207 CC

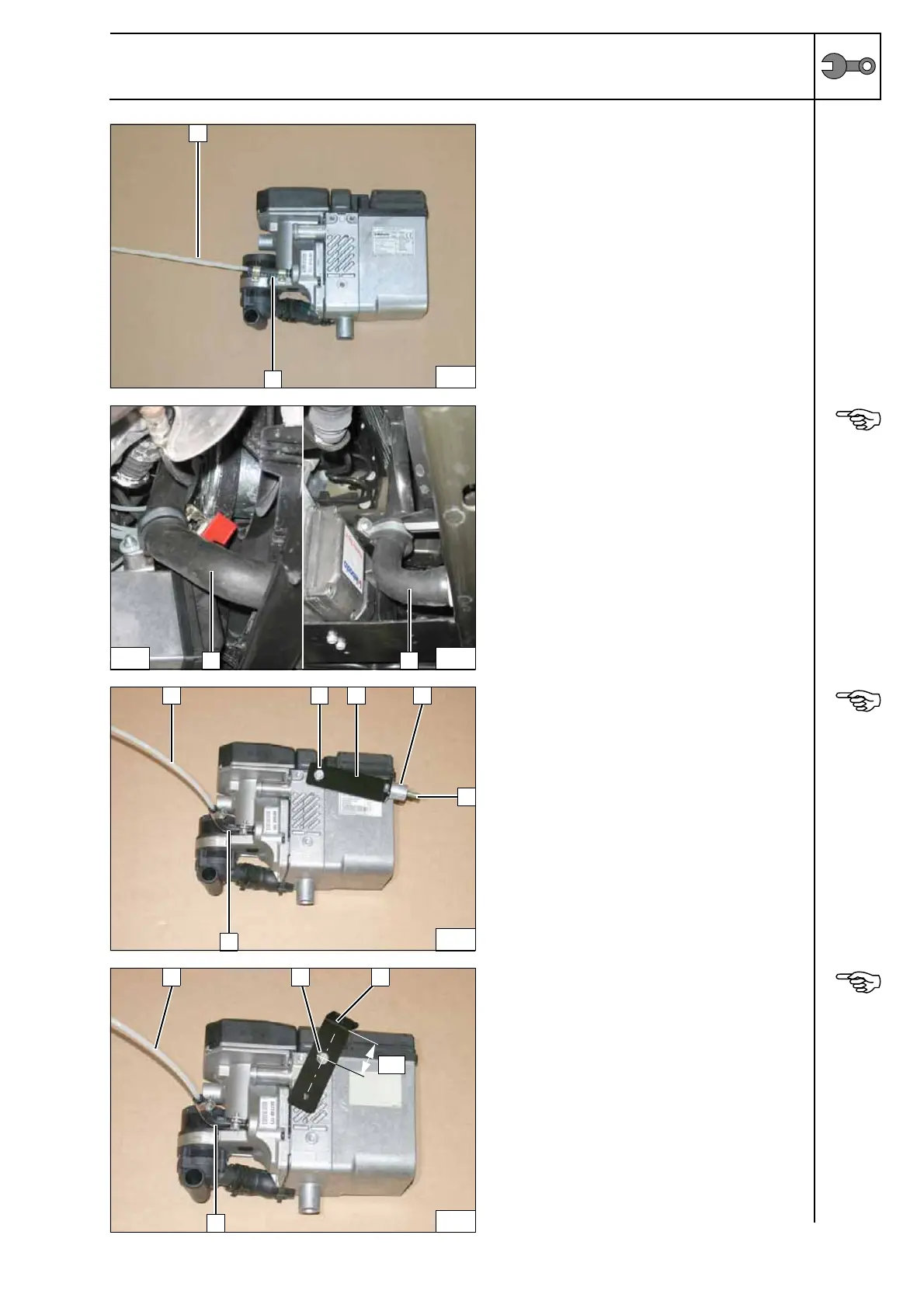

Preparing heater
KFU/NFU
1
Fuel line
2 Hose section, 10 mm dia. hose clamp [2x]
Mounting
fuel line
5FW/X/Y
The premounting of the strut differs according
to the vehicle-specific routing of the coolant
hose. One differentiates between variants
A
and
B, depending on the equipment.
1 Coolant hose variant B
2
Coolant hose variant A
Preparing
heater
Variant A
Ejot screw bolt, tightening torque 10 Nm.
1 Fuel line
2 Ejot screw
3 Strut
4 20 mm spacer sleeve
5 M6x40 bolt, pin lock
6 90° moulded hose, hose clamp
10 mm dia. [2x]
Preparing
heater
Variant B
7 mm dia. hole at position 2 in strut 3.
Ejot screw bolt, tightening torque 10 Nm.
1 Fuel line
2 Ejot screw
4 90° moulded hose, hose clamp
10 mm dia. [2x]
Preparing
heater
1
2
21
2
22a
1
22b
2
6
23
1 3 4
5
2
4
24
1 3
36
