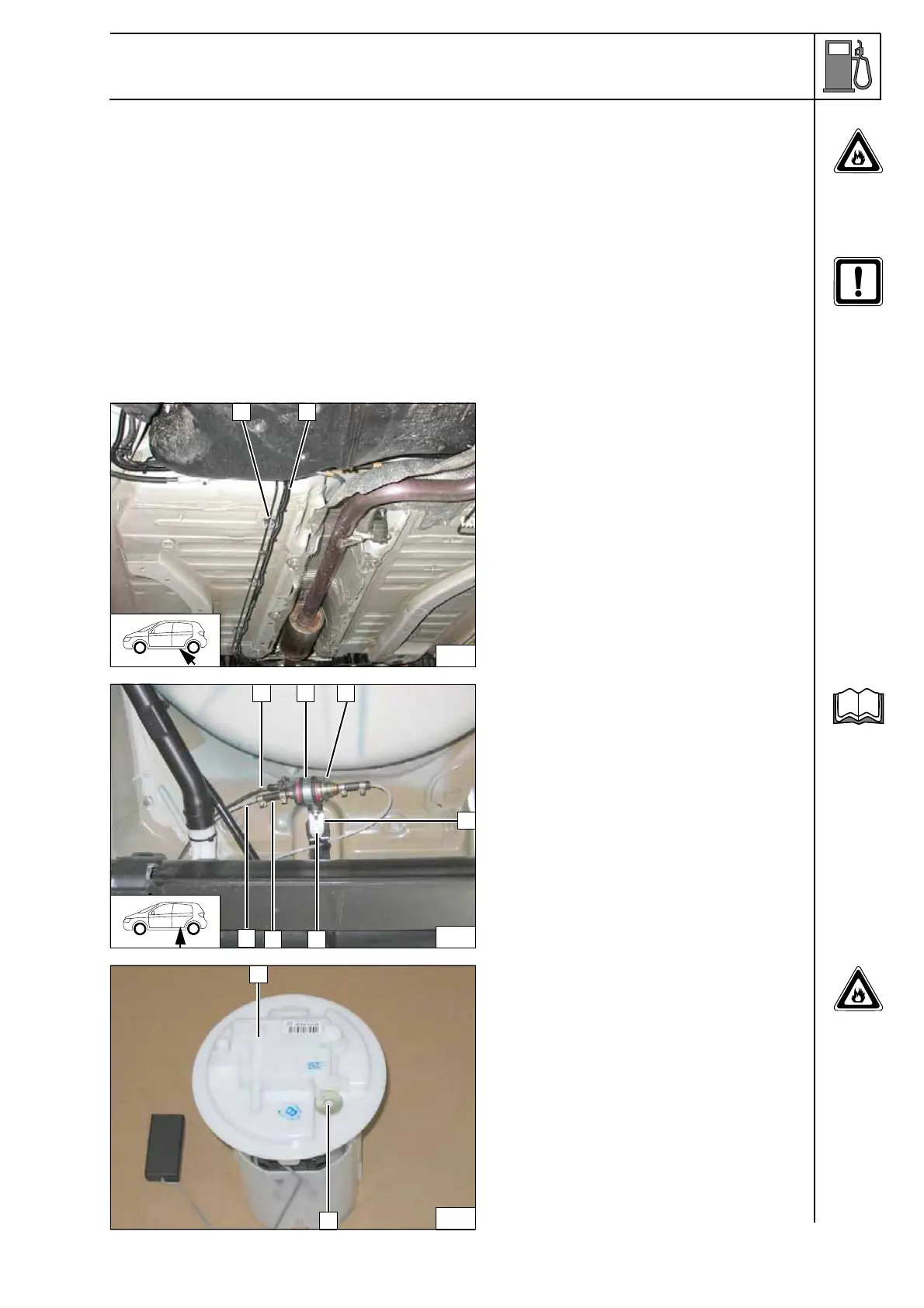

Webasto Thermo Top C Installation Documentation

30
Peugeot 207 / 207 SW / 207 CC
Fuel
CAUTION!
Open the vehicle's fuel tank cap, ventilate the tank and then re-close the tank lock.
Catch any fuel running off in an appropriate container.
Install fuel line and metering pump wiring harness so that they are protected against stone impact. Un-
less specified otherwise, always fasten using cable ties.
Mount the fuel line and wiring harness with rub protection on sharp edges.
WARNING!
The fuel line and wiring harness are routed to the metering pump as shown in the wiring harness rout-
ing diagram.
1 Original vehicle brake lines
2 Fuel line, wiring harness of metering pump
in corrugated tube
Routing
lines
Ensure proper installation position of meter-
ing pump, see "Installation Instructions".
Installation location behind vehicle fuel tank.
Fuel line from heater on pressure side of me-
tering pump [side with connector].
1 Metering pump wiring harness
2 Rubber-coated p-clamp, silent block,
flanged nut [2x]
3 Metering pump
4 Angle bracket
5 Original vehicle bolt
6 Hose section, 10 mm dia. hose clamps [2x].
7 Fuel line from heater
Installa-
tion loca-
tion of
metering
pump
Petrol
Remove fuel-tank sending unit 1 in accord-
ance with manufacturer's instructions.
2 Large diameter washer
3 Copy hole pattern, 6 mm dia. hole
Removing
fuel
55
1 2
56
1 2
5
3
4
7
6
i
57
1
3
