12
Peugeot 207 / 207 SW / 207 CC

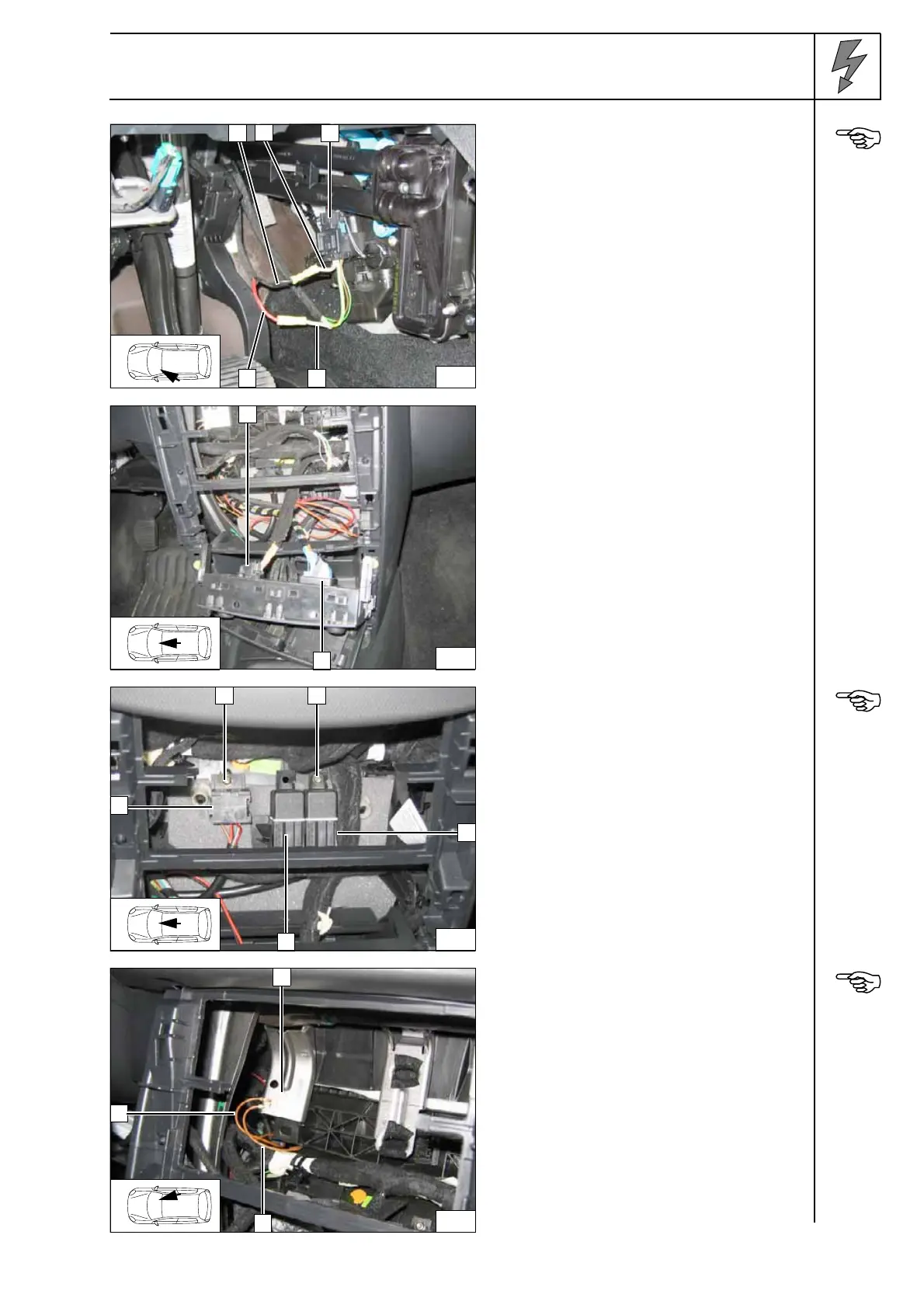

Automatic air-conditioning fan
control
Connection to 6-pin connector IC 26 3 from
wiring harness of fan motor.
Produce connections as shown in wiring dia-
gram.
1 Black (sw) wire from K3/30
2 White (ws) wire of connector IC 26, Pin 3
4 White (ws) wire of PSF 1 connector 2V NR
Pin 2
5 Red (rt) wire from K3/87a
Connect-
ing fan mo-
tor
1
Connector 18V NR
2 Connector 40V BE
A/C control
panel
Connect green/white (gn/ws) wire from K3/86
to IPCU/86. Connect red (rt) wire from K3.1/86
to K3.2/86. Connect brown (br) wire from
K3.1/85 to K3.2/85. Bond K3.2
3
to K3.1
2
with
adhesive tape.
1 Original vehicle bolt [2x]
4 IPCU socket
Mounting
K3.1 and
IPCU
Produce connection with included cable lugs.
1 Original vehicle bolt
2 Brown (br) wire K3.1/85
3 Brown (br) wire of IPCU/85
Connect-
ing earth
for IPCU,
K3.1 and
K3.2
