Webasto Thermo Top C Installation Documentation

33
Peugeot 207 / 207 SW / 207 CC
Exhaust gas
Petrol
1
Exhaust pipe
a =230mm
2 Exhaust end section
b = 100mm
Discard section
X

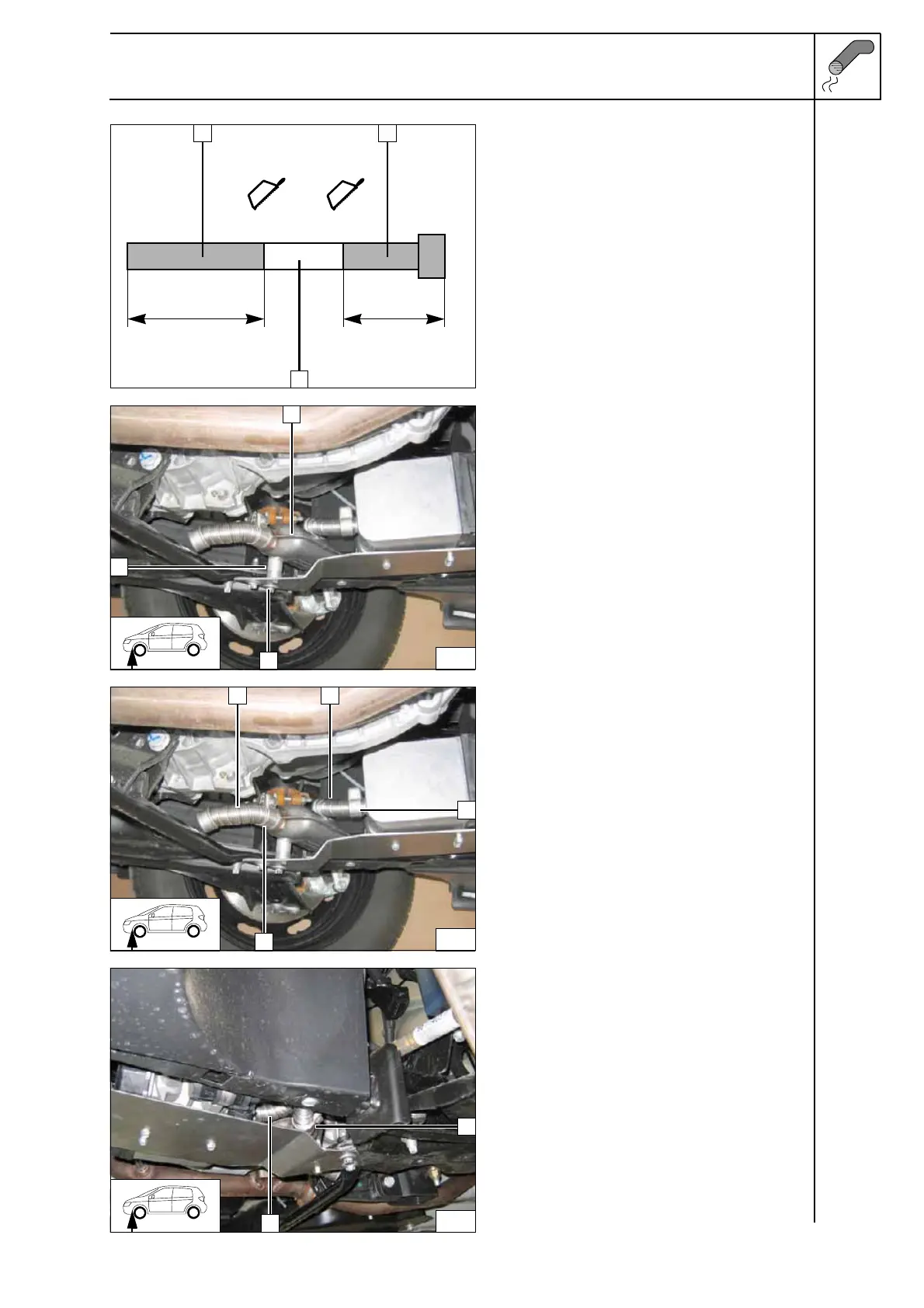

Preparing
exhaust
pipe
1
Silencer
2 M6x55 bolt, flanged nut
3 40 mm spacer
Mounting
silencer
1
Exhaust end section
2 Exhaust pipe
3 Hose clamp [2x]
Mounting
exhaust
pipe
1
Hose clamp
2 Exhaust pipe
Preparing
exhaust
pipe
a b
1 2
X
65
1
2
3
3
1 2
3
66
1
2
67
