Webasto Thermo Top C Installation Documentation

10
Peugeot 207 / 207 SW / 207 CC

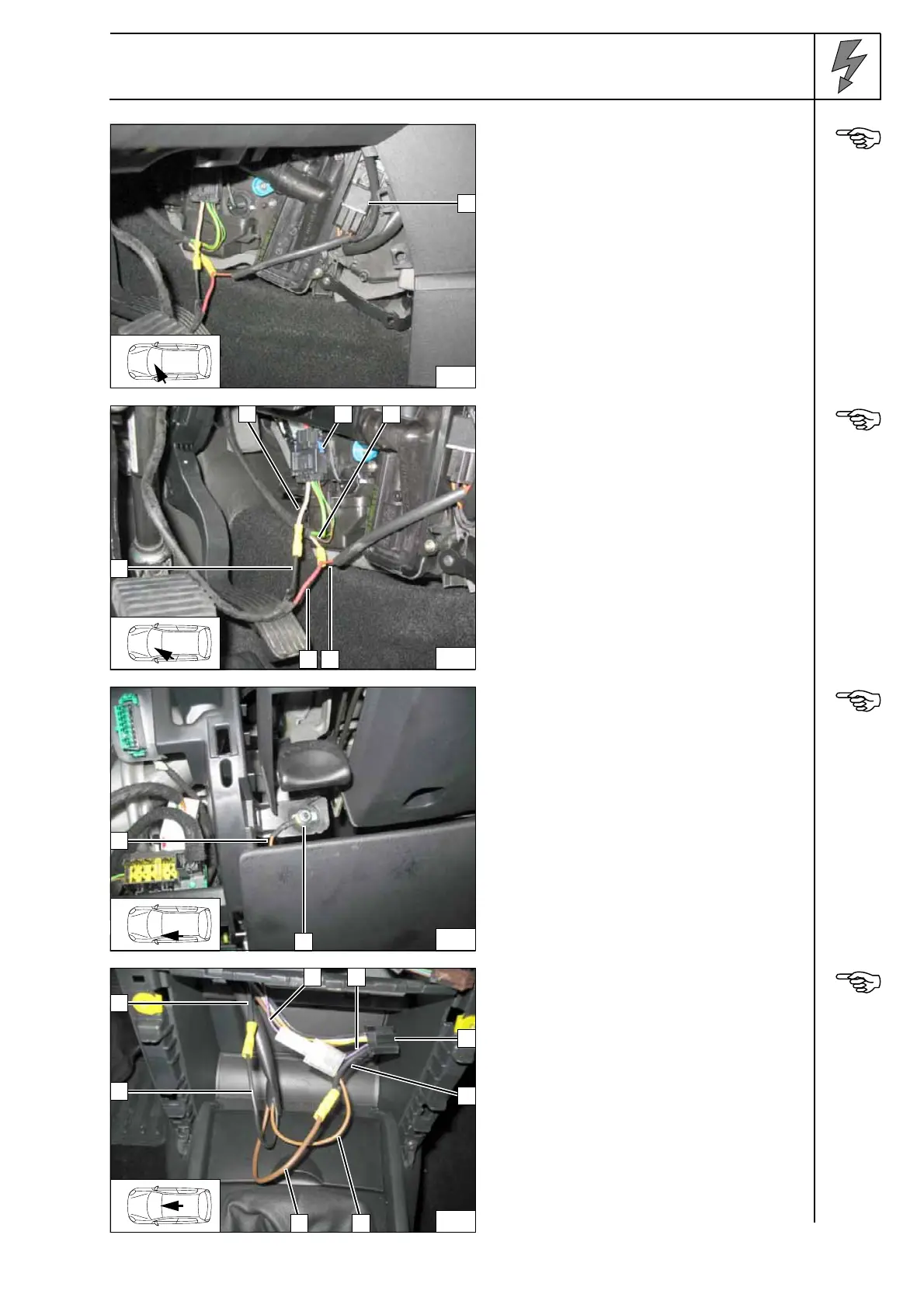

Fan control for manual air condi-
tioning
Fasten additional relay K3.1 1 with installa-
tion strap.
Mounting
K3.1
Connection to 6-pin connector IC 26 2 from
wiring harness of fan motor. Produce connec-
tions as shown in wiring diagram.
1 White (ws) wire of connector IC 26
3 White (ws) wire of PSF 1 connector 2V NR
Pin 2
4 Red (rt) wire to K3.1/86
5 Red (rt) wire from K3/87a
6 Black (sw) wire from K3/30
Connect-
ing fan mo-
tor
Make connection with the help of attached 6
mm dia. cable lug.
1 Original vehicle earth point
2 Brown (br) wire K3.1/85
Earth con-
nection of
K3.1
Connection on connector 8V NR 3 from fan
switch/A/C control panel. Produce connec-
tions as shown in wiring diagram.
1 Violet (vi) wire of connector 4V NR, Pin 3
2 Violet (vi) wire of connector 8V NR, Pin 3
4 Black (sw) wire of connector 8V NR, Pin 1
5 Brown (br) wire of K3.1/87a
6 Brown (br) wire K3.1/87
7 Black (sw) wire K3.1/30
8 Black (sw) wire of earth point
Connect-
ing A/C
control
panel
6
1
7
6
4
1
5
2 3
8
1
2
9
5
7
4
1 2
8
6
3
