Webasto Thermo Top C Installation Documentation

18
Peugeot 207 / 207 SW / 207 CC

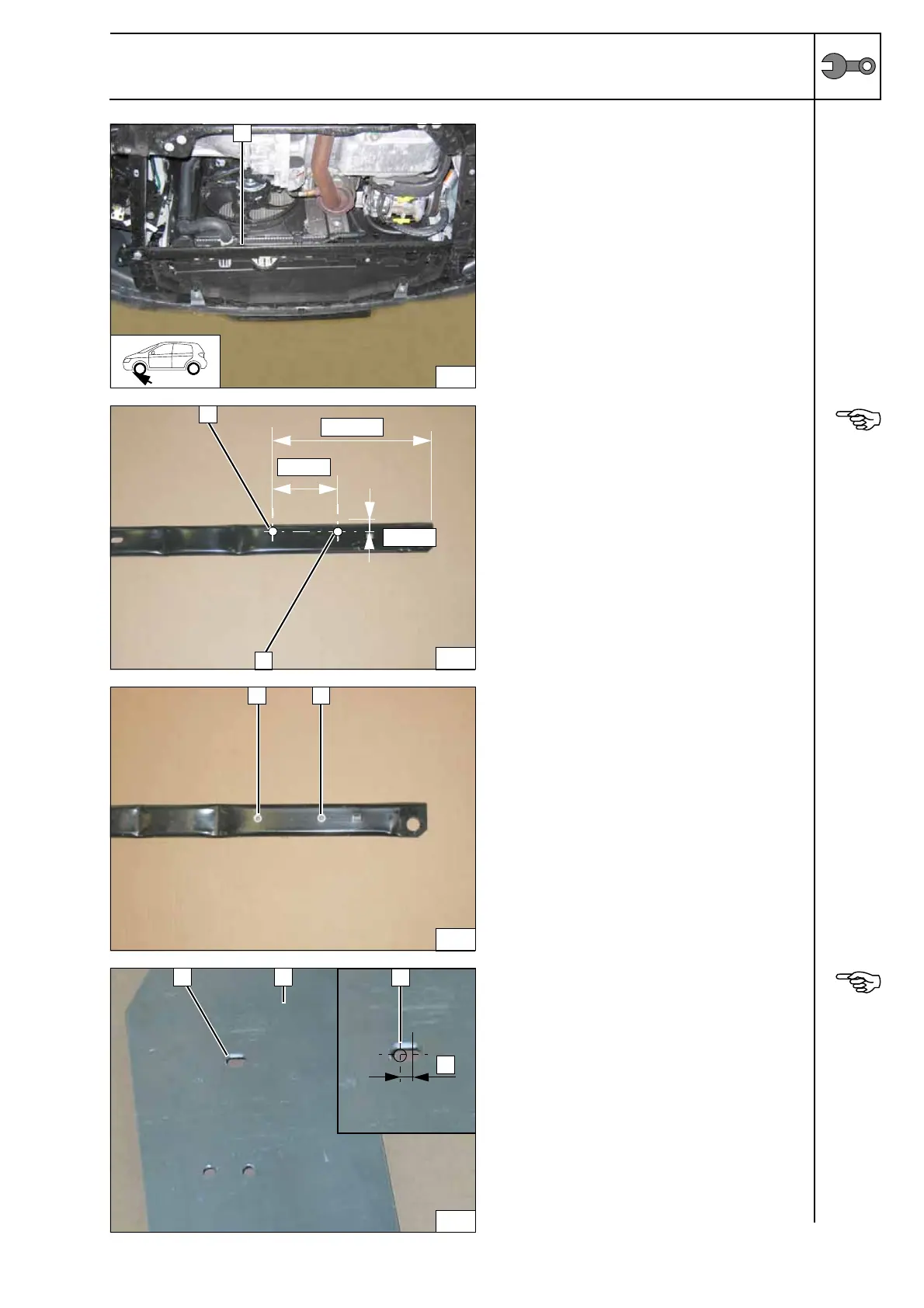

Preparing installation location
1 Remove original vehicle strut
Removing
strut
Copy hole pattern as shown and drill 9.1 mm
dia. holes [2x] in strut at pos.
1.
Copying
hole pat-
tern
1
M6 rivet nut [2x]
Installing
rivet nuts
Expand hole at position 1 to oblong hole.
2 Bracket
Preparing
bracket
25
1
26
1
1
25mm
90mm
235mm
27
1 1
28
1 2
5
1
