Webasto Thermo Top C Installation Documentation

9
Peugeot 207 / 207 SW / 207 CC

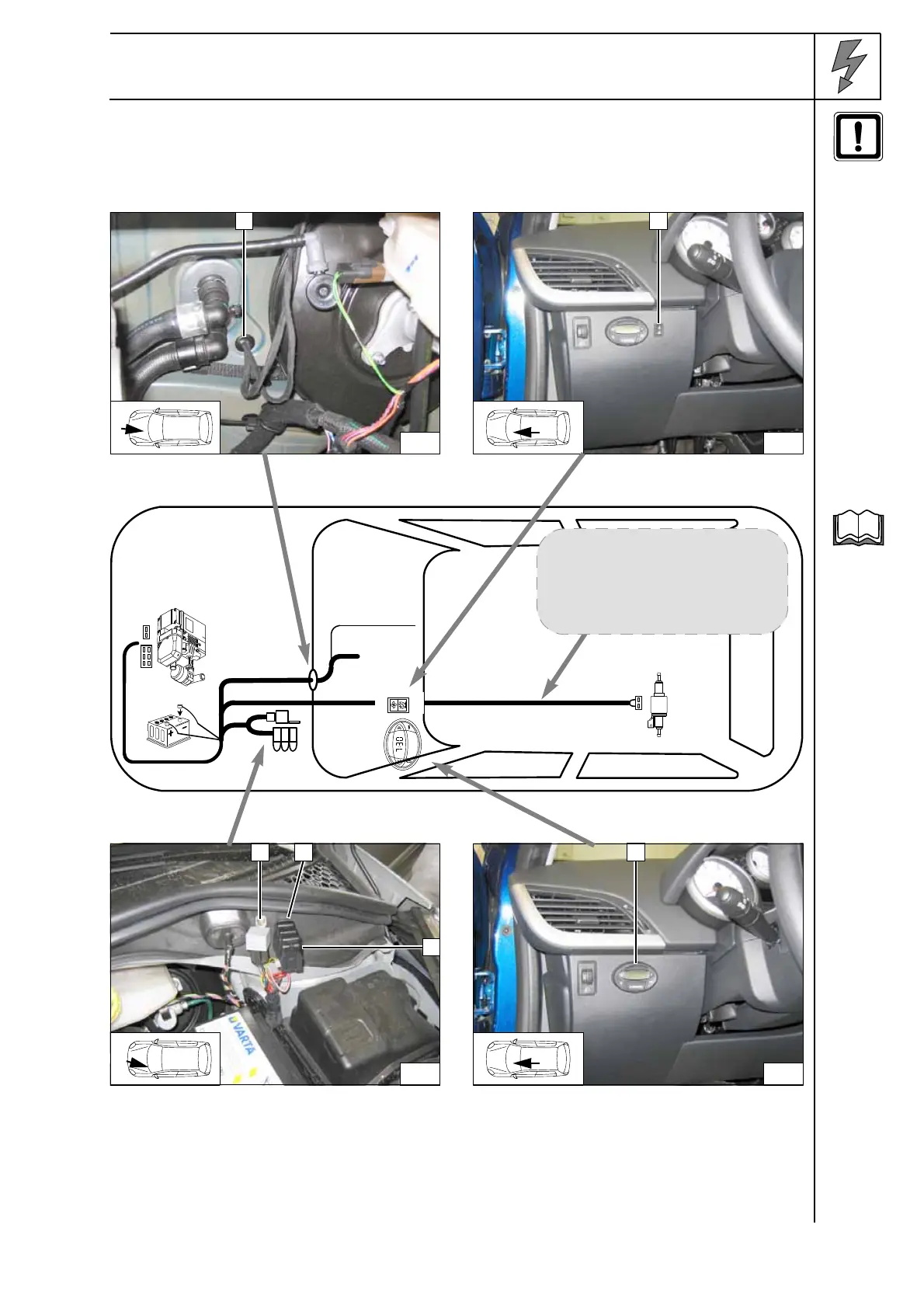

Electrical system
Wiring harness pass through
1
18 mm dia. hole, included protective rubber plug
Summer/winter switch option
1
Summer/winter switch, drilled hole 12 mm dia.
Wiring har-
ness rout-
ing
diagram
Fuse holder, K3 relay
1
K3 relay, 5.5x13 bolt, hole 4.5 mm dia.
2 Retaining plate of fuse holder, 5.5x13 bolt,
4.5 mm dia. hole
3 Fuse holder
Digital timer
1
Digital timer
2
1
3
1
rt
sw
gr/ws
bl
br
Wait until later to route wiring
harness of metering pump to-
gether with fuel line in corrugat-
ed tube along original vehicle
brake lines on underbody
i
4
2
3
1
5
1
