Peugeot 207 / 207 SW / 207 CC
Petrol coolant circuit
WARNING!
Any coolant running off should be collected in an appropriate container. Install hoses so that they are
kink-free. Unless specified otherwise, always fasten using cable ties. Position clamps so that other hos-
es cannot be damaged. The heater must be filled with coolant when installing the hoses.

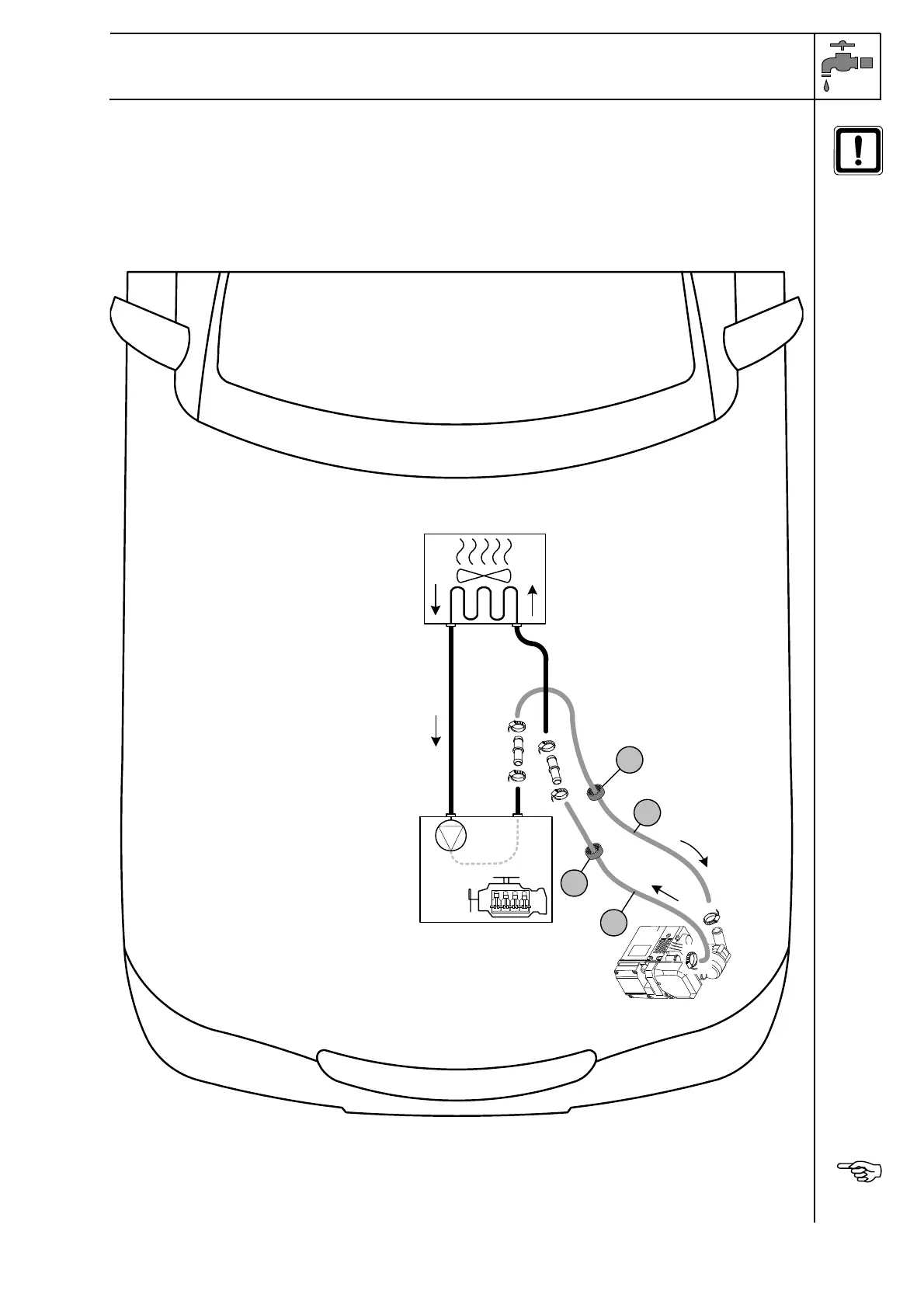

The connection should be "inline" based on the following diagram:
Hose rout-
ing dia-
gram
All hose clamps = 20-27 mm dia. 1 = Black (sw) rubber isolator [2x].
Connecting pipe KFU/NFU = dia. 15x20. Connecting pipe 5FW/X/Y = dia. 17x20.
