Webasto Thermo Top C Installation Documentation

13
Peugeot 207 / 207 SW / 207 CC

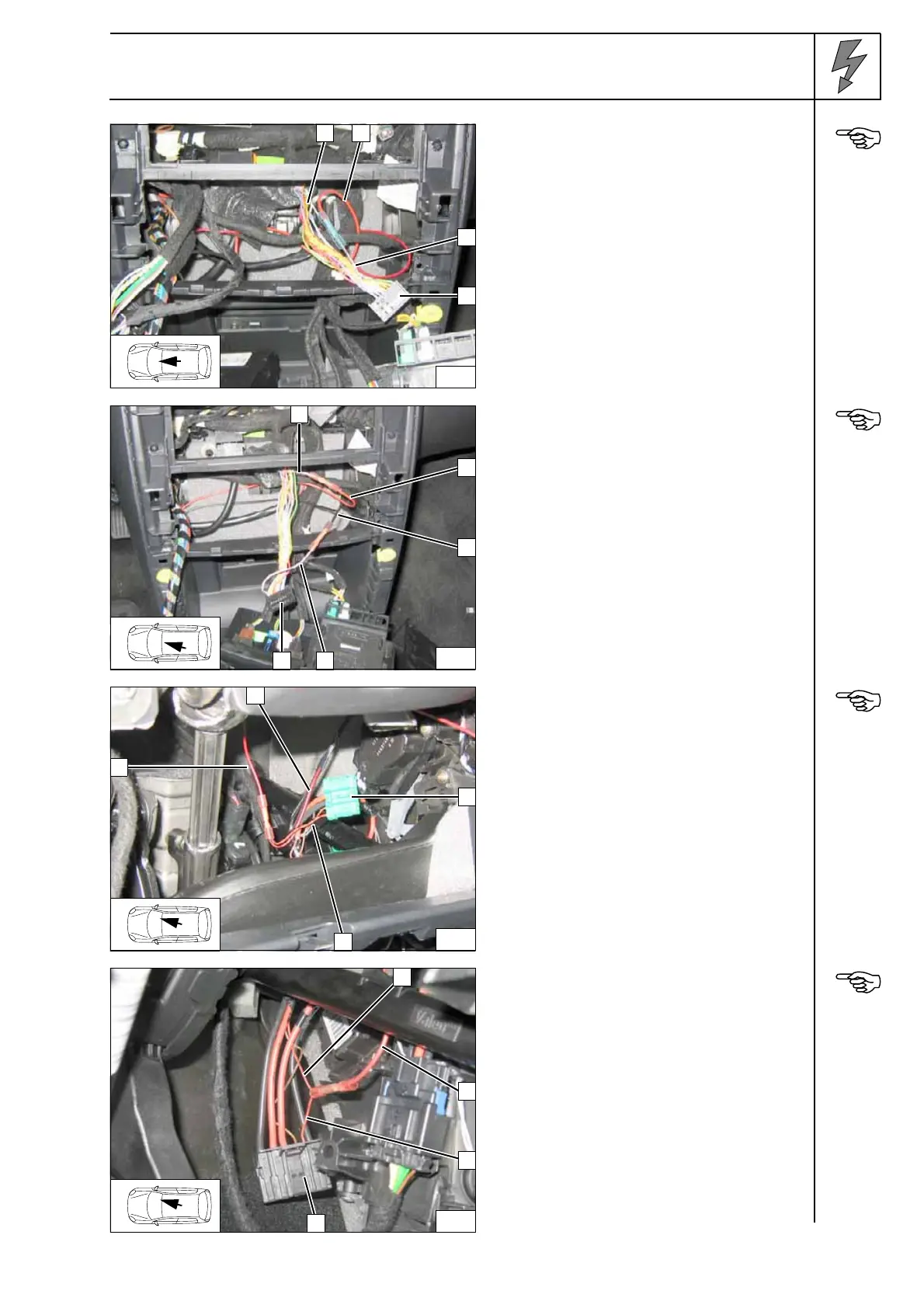

Connection on 18-pin connector 18V NR 4
from A/C control panel. Produce connection
as shown in wiring diagram.
1 Gray (gr) wire of terminal 15
2 Red (rt) wire to K3.1/86
3 Gray (gr) wire to connector 18V NR
Connect-
ing termi-
nal 15 for
K3.1 and
IPCU
Connection on 18-pin connector 18V NR 5
from A/C control panel. Produce connections
as shown in wiring diagram.
1 Pink (ro) wire of BSI1 connector 10V NR,
Pin 6
2 Red (rt) wire to K3.1/87
3 Black (sw) wire K3.1/30
4 Pink (ro) wire of connector 18V NR, Pin 18
Connect-
ing relay
K3.1
Variant 1
Connection on green (gn) 6-pin connector 6V
VE
2 from fan controller.
Produce connections as shown in wiring dia-
gram.
1 8080 mm long red (rt) wire of connector
40V BE, Pin 39
3 Red (rt) wire of connector 6V VE, Pin 6
4 Red (rt) wire of K3.2/87a
Connect-
ing fan
controller
Variant 2
Connection on black (sw) 6-pin connector 6V
NR
4 from fan controller. Produce connec-
tions as shown in wiring diagram.
1 8080 mm long red (rt) wire of connector
40V BE, Pin 39
2 Red (rt) wire of K3.2/87a
3 Red (rt) wire of connector 6V NR, Pin 5
Connect-
ing fan
controller
14
1
3
2
4
15
1
5
3
4
2
16
1
2
3
4
17
1
2
4
3
