Webasto Thermo Top C - Heater Unit Preparation and Location; Preparing the Heater Unit Assembly; Vehicle Installation Location Preparation

14
Peugeot 207 / 207 SW / 207 CC

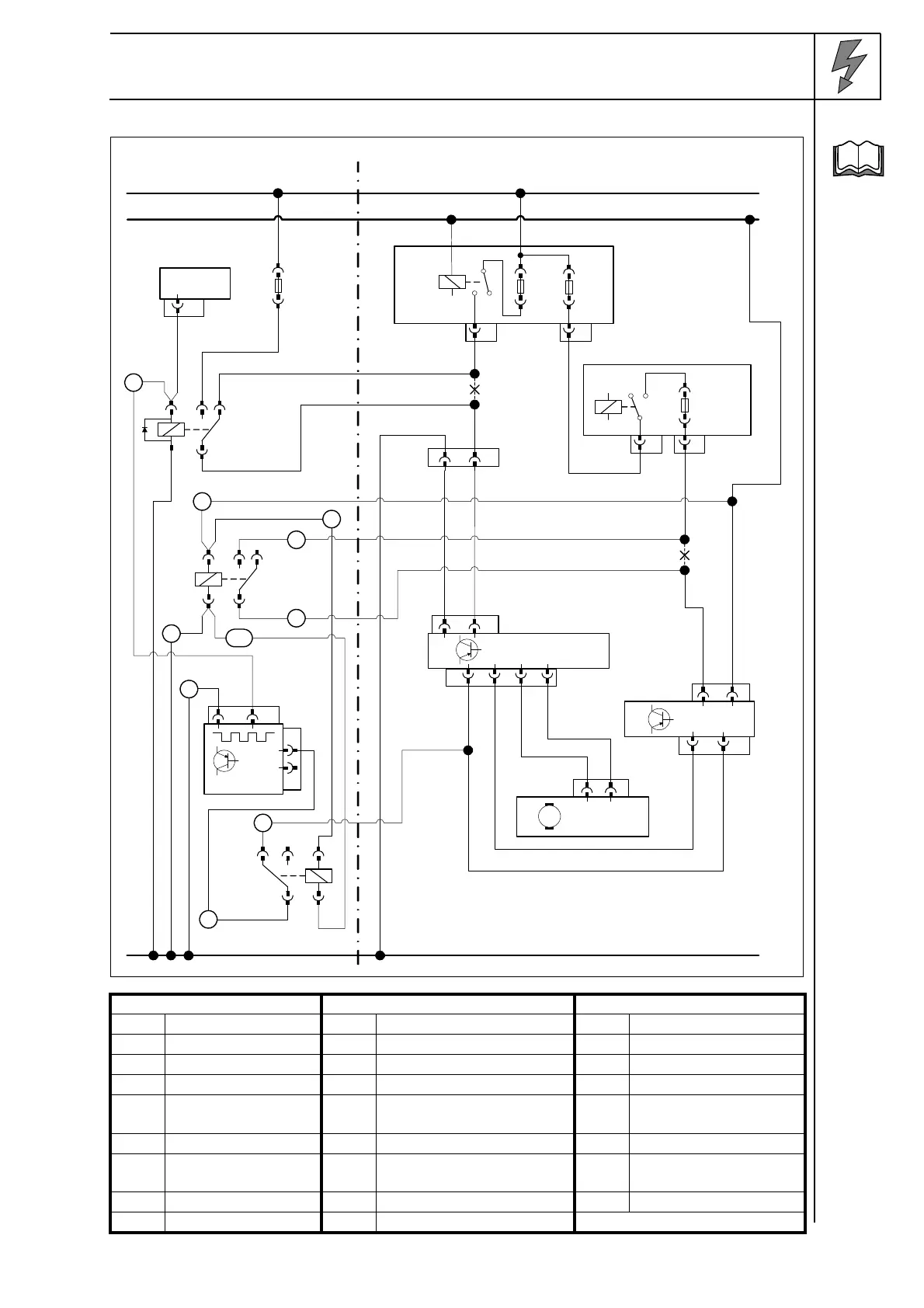

Wiring diagram of automatic air-conditioning Variant 1
Wiring dia-
gram
Webasto components Vehicle components Colours and symbols
Legend
HG TT-C/E Heater 8050 Fan motor rt red
X1 6-pin connector PSF1 Main power supply ws white
F3 Fuse 8045 Fan controller sw black
K3 Fan relay 8080 A/C control panel br brown
K3.1 Additional relay BSI1 Central electrical box for
passenger compartment
gn green
K3.2 Additional relay IC 26 6-pin connector ro pink
IPCU Pulse width modula-
tor
gr gray
X Cutting point
Wiring colours may vary.
