31
Peugeot 207 / 207 SW / 207 CC

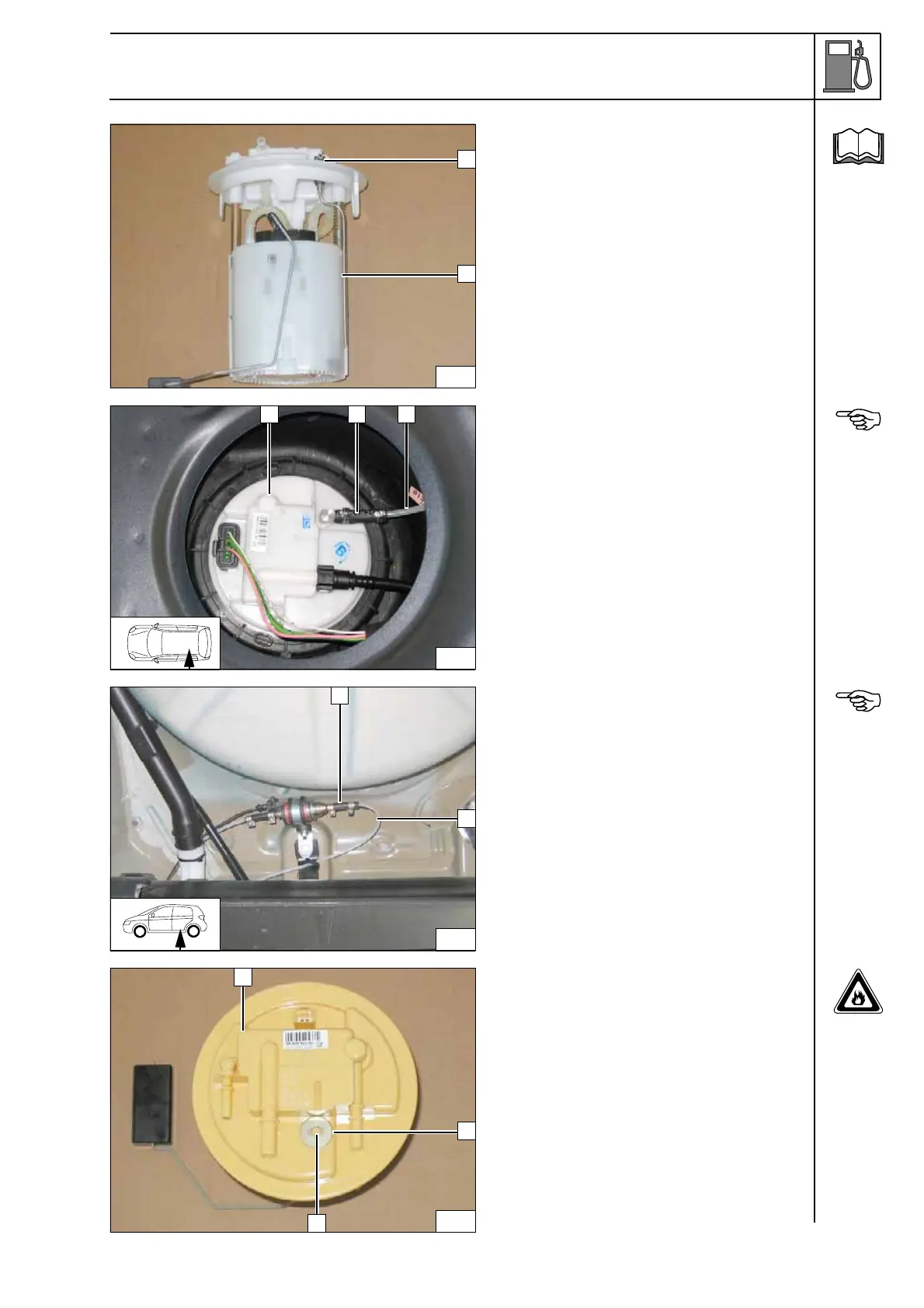

Shape fuel standpipe 1 according to tem-
plate, cut to length and install, see "installa-
tion instructions".
Installing
fuel stand-
pipe
Install fuel-tank sending unit 1 in accordance
with manufacturer's instructions.
2
Hose section, 10 mm dia. hose clamps [2x].
3 Mecanyl fuel line
Connect-
ing fuel
line
Fuel line from fuel standpipe on intake side of
metering pump [side without connector].
Check the position of the components; adjust
if necessary. Check that they have freedom of
movement.
1
Hose section, 10 mm dia. hose clamps [2x].
2 Mecanyl fuel line
Connect-
ing to me-
tering
pump
Diesel
Remove fuel-tank sending unit 1 in accord-
ance with manufacturer's instructions.
2 Large diameter washer
3 Copy hole pattern, 6 mm dia. hole
Removing
fuel
