The grill illustrated may
have slight differences
than the model purchased.
Check

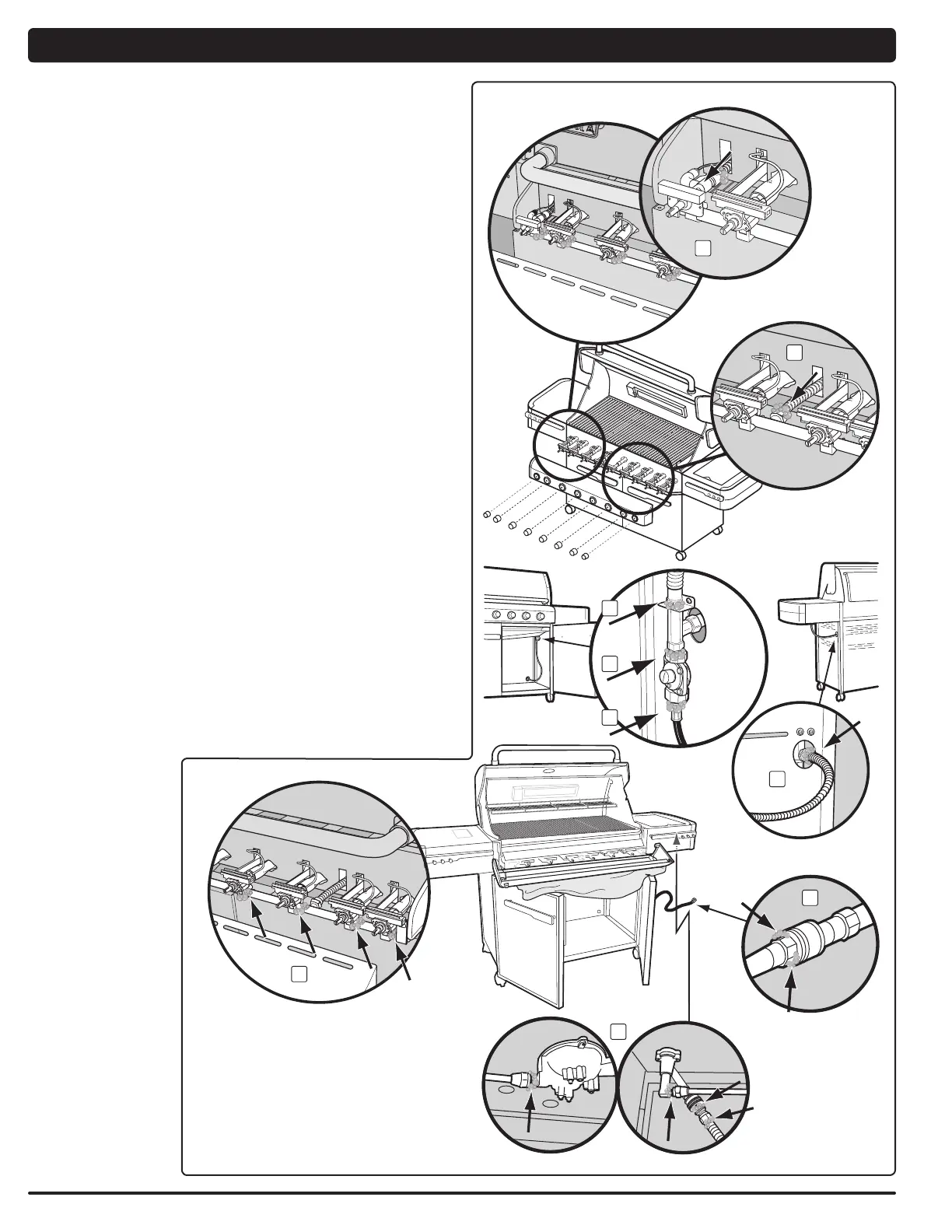

A) Main gas line to manifold connection (1).
B) Rotisserie (I.R. Burner) gas line connection (2).
C) Bulkhead and gas supply hose connection (3).
D) Bulkhead to regulator connection (4).
E) Regulator to hose connection (5).
F) Side burner hose to bulkhead connection (6).
m WARNING: If there is a leak at connection (1, 2, 3, 4, 5, or 6),
retighten the fitting with a wrench and recheck for leaks with
soap and water solution. If a leak persists after re-tightening
the fitting, turn off the gas. DO NOT OPERATE THE GRILL.
Contact the Customer Service Representative in your area
using the contact information on our web site. Log onto
www.weber.com
®
.
G) Side burner hose to quick disconnect connection, side burner valve and orifice
connections (7).
H) Hose to quick disconnect connection (8).
I) Valves to manifold connections (9).
m WARNING: If there is a leak at connections (7, 8, or 9), turn
off the gas. DO NOT OPERATE THE GRILL. Contact the
Customer Service Representative in your area using the
contact information on our web site. Log onto
www.weber.com
®
.
When leak checks are complete, turn gas supply off at the source and rinse connections
with water.
Reinstall Control Panel
Parts required: control panel, screws and burner control knobs.
A) Hook the top edge of the control panel onto the control panel brackets on either side
of the front of the cookbox.
B) Line up screws with screw holes on both the control panel bracket and the frame.
C) Tighten screws.
D) Place corresponding control knobs onto the valve stems.
◆
