mAINTENANcE
The grill illustrated
may have slight
differences than the
model purchased.
REPLACING MAIN BURNERS
Note: Your Summit
®
gas grill must be off and cool.
A) Turn gas off at source.
B) Disconnect gas supply.
C) Remove cooking grates.
D) Remove Flavorizer
®
bars.
E) Remove smoker box (if included in your model).

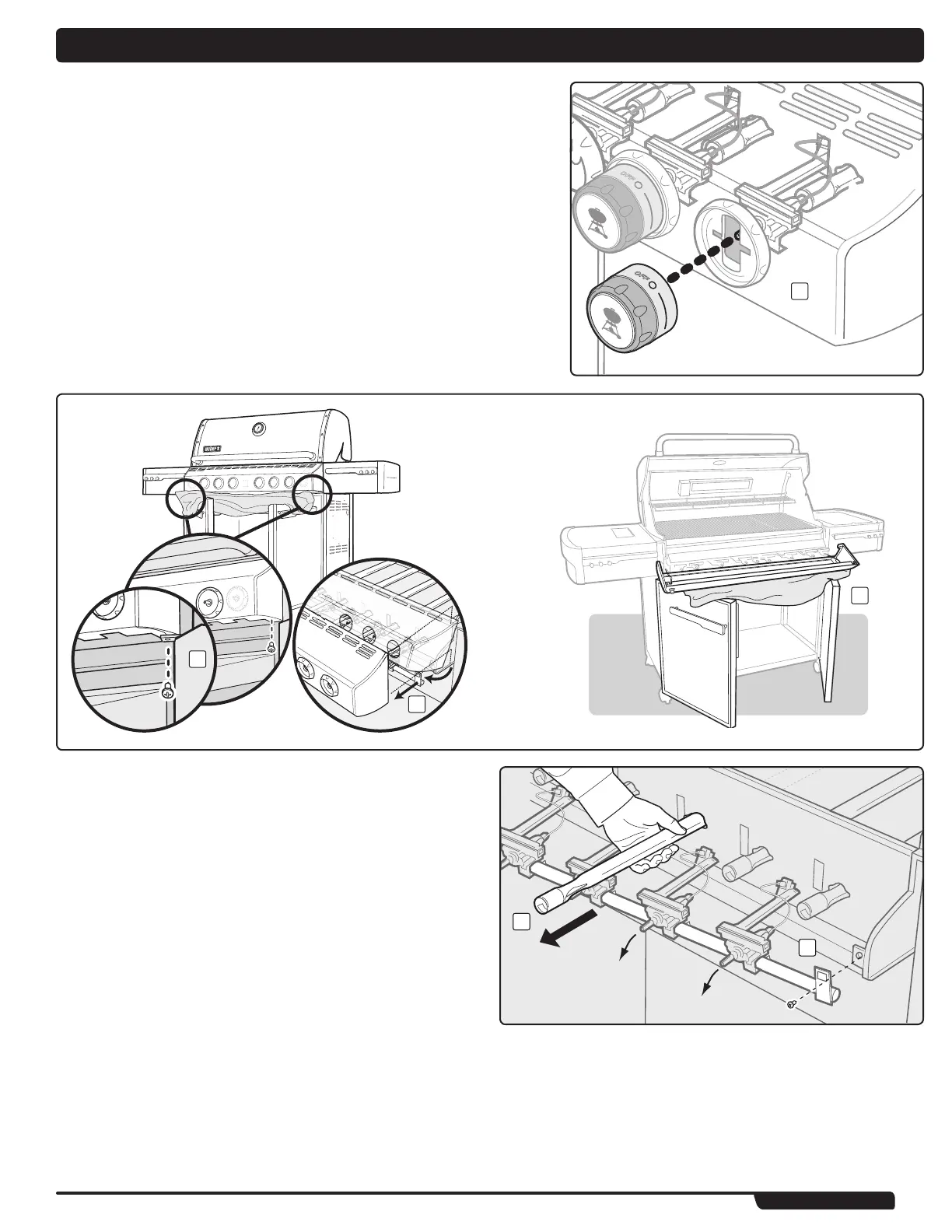

Removing Control Panel
Parts required: Phillips screwdriver and a towel.
A) Remove the burner control knobs (1).
B) Open both doors and place a towel on top of the doors.
This will protect the control panel and tops of the doors from getting
scratched on the next step.
C) Remove the screws from the underside of the control panel with a Phillips
screwdriver (2).
D) Tilt the control panel forward and lift up and away from the grill (3). (For Summit
®
models with LED features: be careful not to break or disconnect the wires for the
control panel LEDs.)
E) Place the control panel on the towel covering the door assemblies (4).
F) Remove the two screws that secure the manifold to the cookbox. Pull manifold
assembly out from the manifold frame (5).
G) Pull the selected burner tube(s) from manifold frame and replace with new burner
tube(s) (6).
