Construction Details

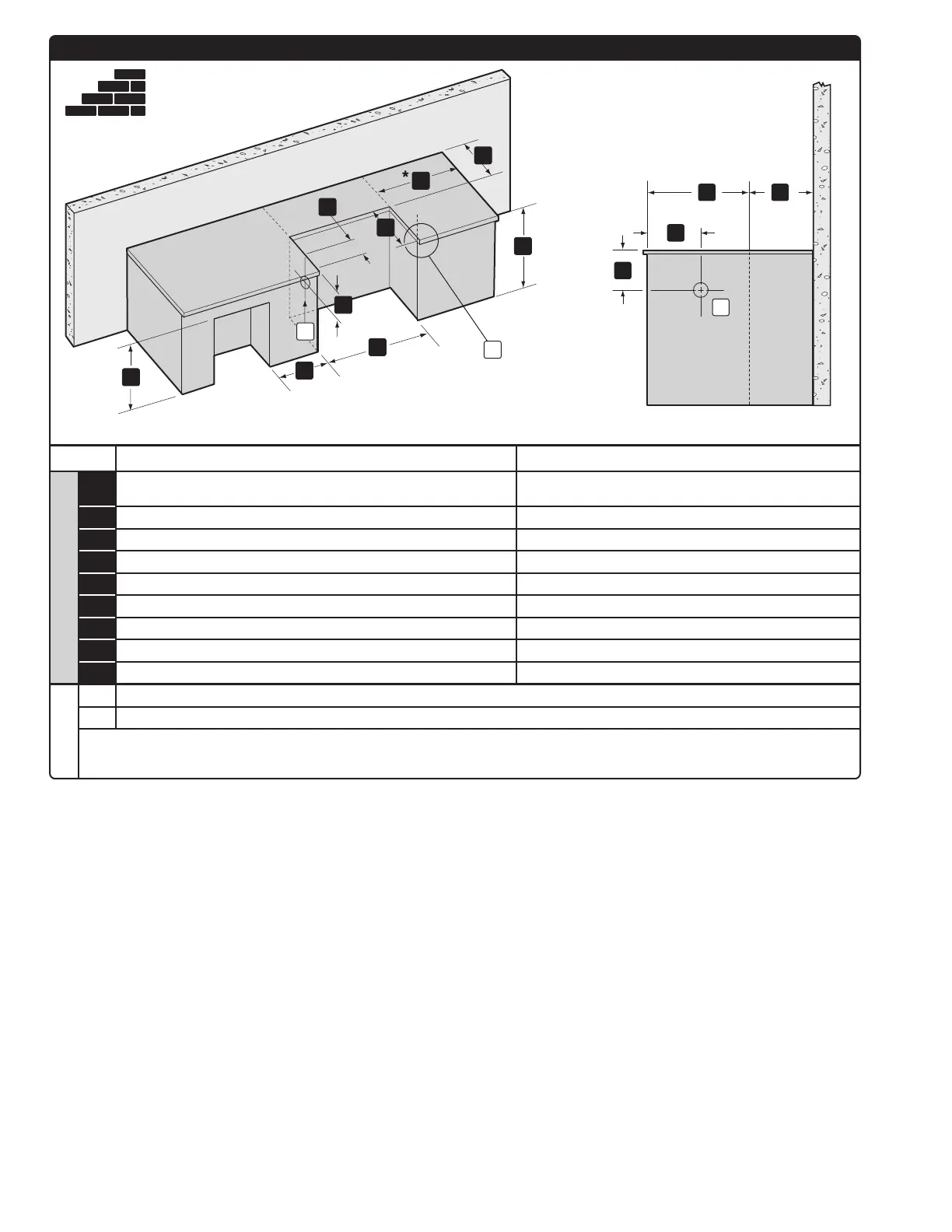

BUILT-IN CUTOUT DETAILED DIMENSIONS - LOCATING THE STRUCTURE NEAR A NONCOMBUSTIBLE WALL
b
3
5 2
4
3
4
5
6
7
a
1
2
b
8
9
360 460
DIMENSIONS
*1
24" (610 mm) minimum*
Minimum from cutout edge to combustible construction.
24" (610 mm) minimum*
Minimum from cutout edge to combustible construction.
2 0" (0 mm) minimum 0" (0 mm) minimum
3 12" (305 mm) 12" (305 mm)
4 8" (203 mm) 8" (203 mm)
5 26
1
⁄4" (667 mm) 26
1
⁄4" (667 mm)
6 36" (914 mm) maximum 36" (914 mm) maximum
7 32" (813 mm) built-in frame 39" (991 mm) built-in frame
8 27" (686 mm) minimum for 10 kg LPG cylinder 27" (686 mm) minimum for 10 kg LPG cylinder
9
3
⁄4" (19 mm)) minimum
3
⁄4" (19 mm) minimum
a
For a countertop treatment: recommended
3
⁄4" (19 mm) overhang
b Gas inlet
*Clearance from any combustible surface or structure is at least 24" (610 mm) from the back and sides of the grill.
** If the cut-out is constructed from non-combustibles according to AS/NZS 5263 and AS/NZS 5601.
